1.8

Structural configuration of SIMOCODE pro

1.8.1

Function blocks

See also
Properties
Function blocks are stored internally in the SIMOCODE pro system, e.g. for
the administration of various control stations, for the set control function, or
for motor protection. Every function block has a name and may be equipped
with inputs and outputs. The inputs and outputs are used for the internal
connection of the various function blocks and, thus, the setup of a device-
internal logic instead of an externally wired logic in the control circuit.

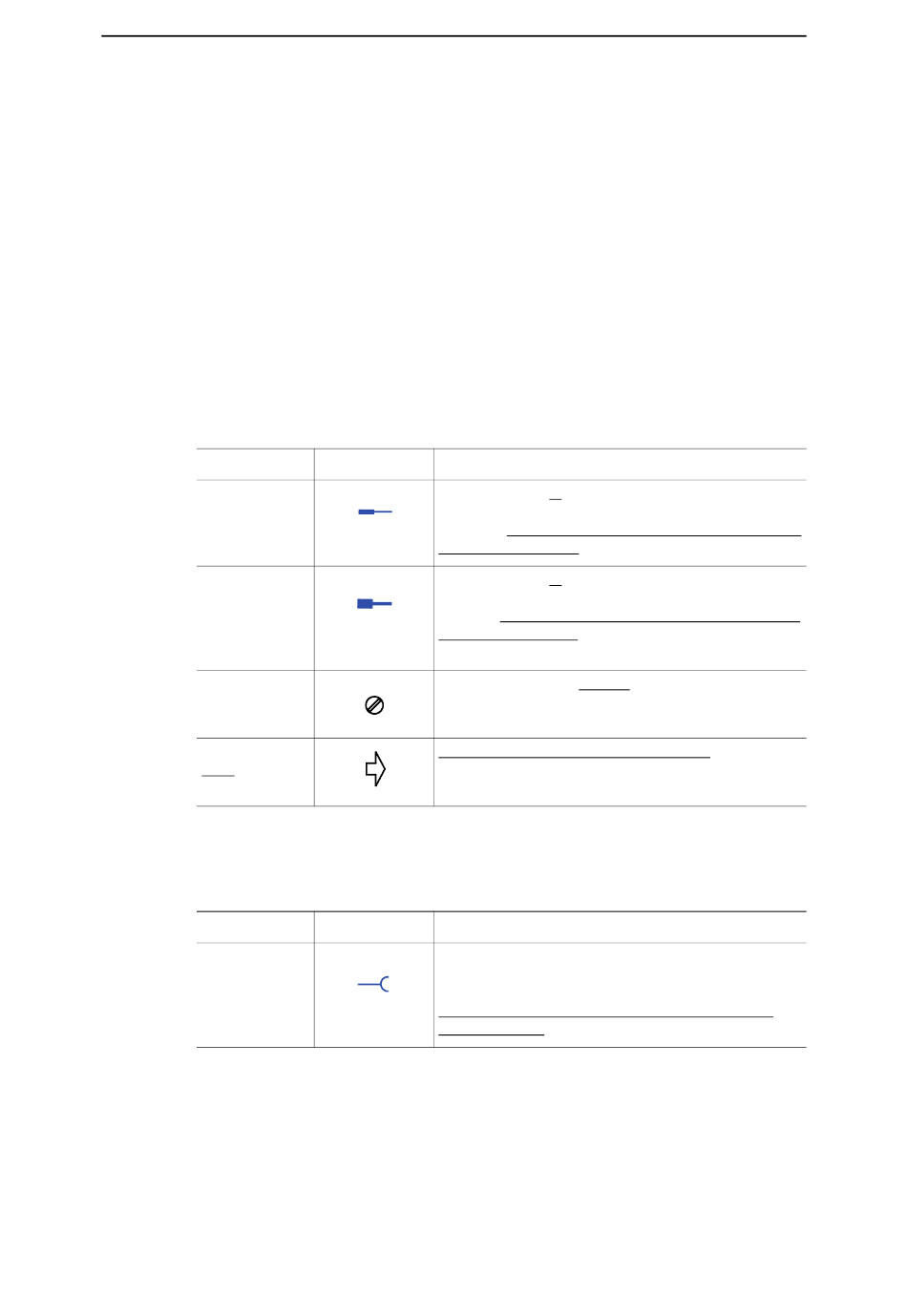

The following table shows the possible input types of the internal function
blocks of SIMOCODE pro:
Input
Plugs
(binary)
Plugs
(analog)
Screw
terminals
Receive data
from
PROFIBUS DP
Table 1-27: Input types of the internal function blocks of SIMOCODE pro
The following table shows the possible output types of the internal function
blocks of SIMOCODE pro:
Output
Sockets
(binary)
Table 1-28: Input types of the internal function blocks of SIMOCODE pro
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
Chapter 1.9 "Overview of function blocks
Symbol Example
Function blocks in the basic unit may have binary
plugs. These are connected to binary sockets via
software. They are relevant for parameterization, e.g.
with SIMOCODE ES.
Function blocks in the basic unit may have analog
plugs. These are connected via software to analog
sockets. They are relevant for parameterization, e.g.
with SIMOCODE ES. Example: 2-byte word for cyclic
send data.
Screw terminals are outside, e.g. "BU Input" function
block. Control devices and auxiliary switches are
normally connected there.
From the DP master to SIMOCODE pro, e.g. "Cyclic
Receive" function block.
DP
Symbol Example
Function blocks in the basic units may have binary
sockets. These are assigned via software to binary
plugs.
They are relevant for parameterization, e.g. with
SIMOCODE ES.
System description
(alphabetical)".
1-111
