Main circuit
Current measuring module
Protection + Monitoring
(overload, thermistor, earth-fault ...)

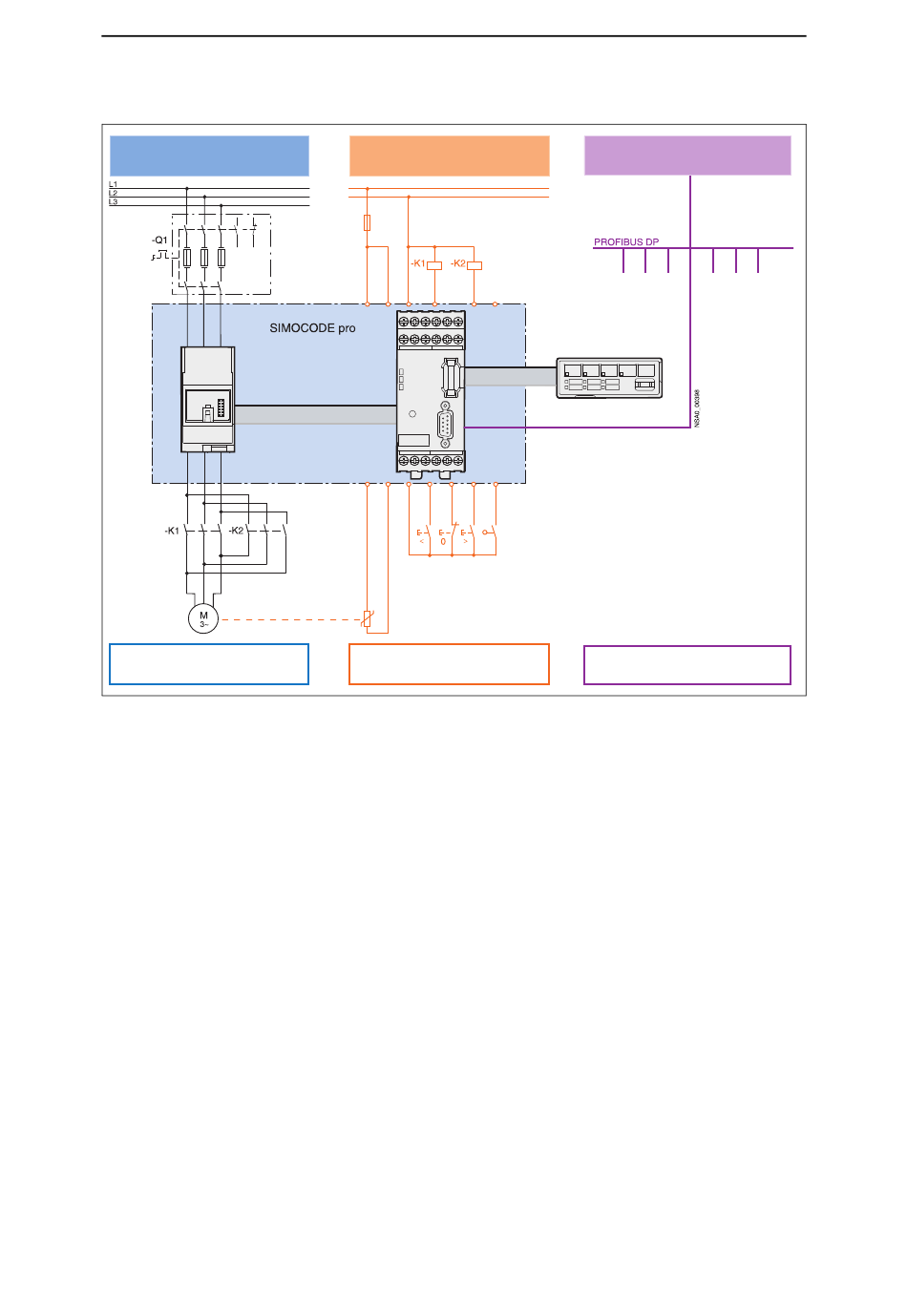

Fig. 1-1: SIMOCODE pro integrated in the main circuit, control circuit and at automation level (PLC)
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
Control circuit
Connecting cable
Basic unit
Control circuit
(including monitoring + interlocks)
System description
Automation level
Operator panel
Remote
Communication
(operating, service and diagnostics data
+ control commands)
1-3
