5.10
Hysteresis for monitoring functions

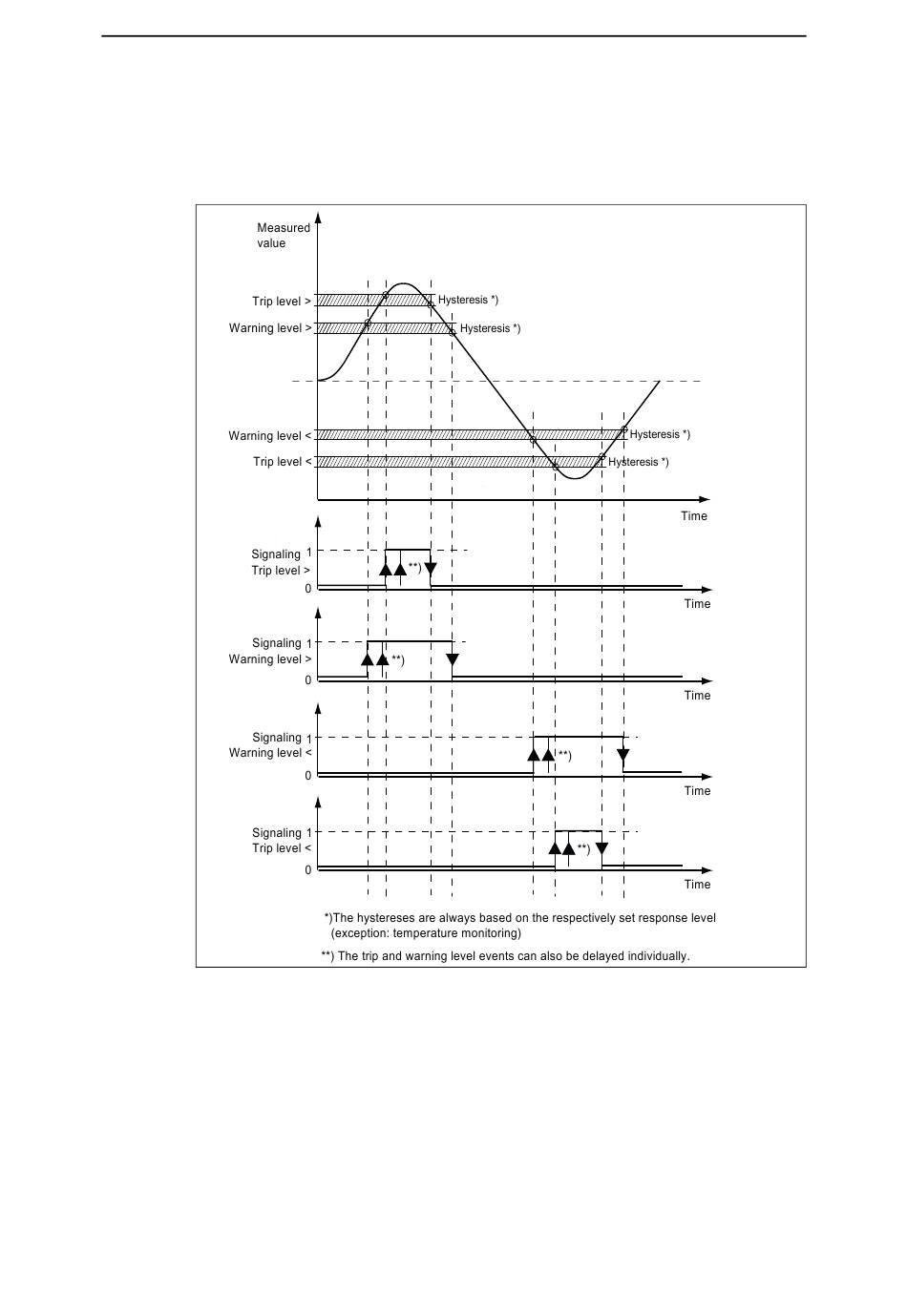

The following diagram illustrates the function of the hysteresis for
monitoring functions:
Fig. 5-12: The hysteresis operating principle for monitoring functions
TL = Trip level (tripping)
WL = Warning level (warning)
SIMOCODE pro
GWA 4NEB 631 6050- 22 DS 03
Monitoring functions
5-25
