Making internal assignments
You have to make the following assignments:
1) Assign the QE1 contactor control to the relay output which controls the coil
of the network contactor (right).
2) Assign the QE2 contactor control to the relay output which controls the coil
of the network contactor (left).
3) Assign the QE4 contactor control to an arbitrary relay output from which the
"ON input" of the soft starter should be controlled.
4) Assign the QE3 contactor control to the relay output that supplies the 20 ms
acknowledgment signal to the soft starter.
5) Assign the "ON >", "ON <" and "OFF" control commands to the enabled
control commands.
6) Assign the SIMOCODE pro input to which the "Fault" signal output of the soft
starter is connected to the input (socket) of the standard function "External
fault 1".
7) The "Start-up end" signal of the soft starter can also be wired to one of the
inputs and processed by SIMOCODE pro.
Note
An additional digital module may be necessary for this control function.
Schematic

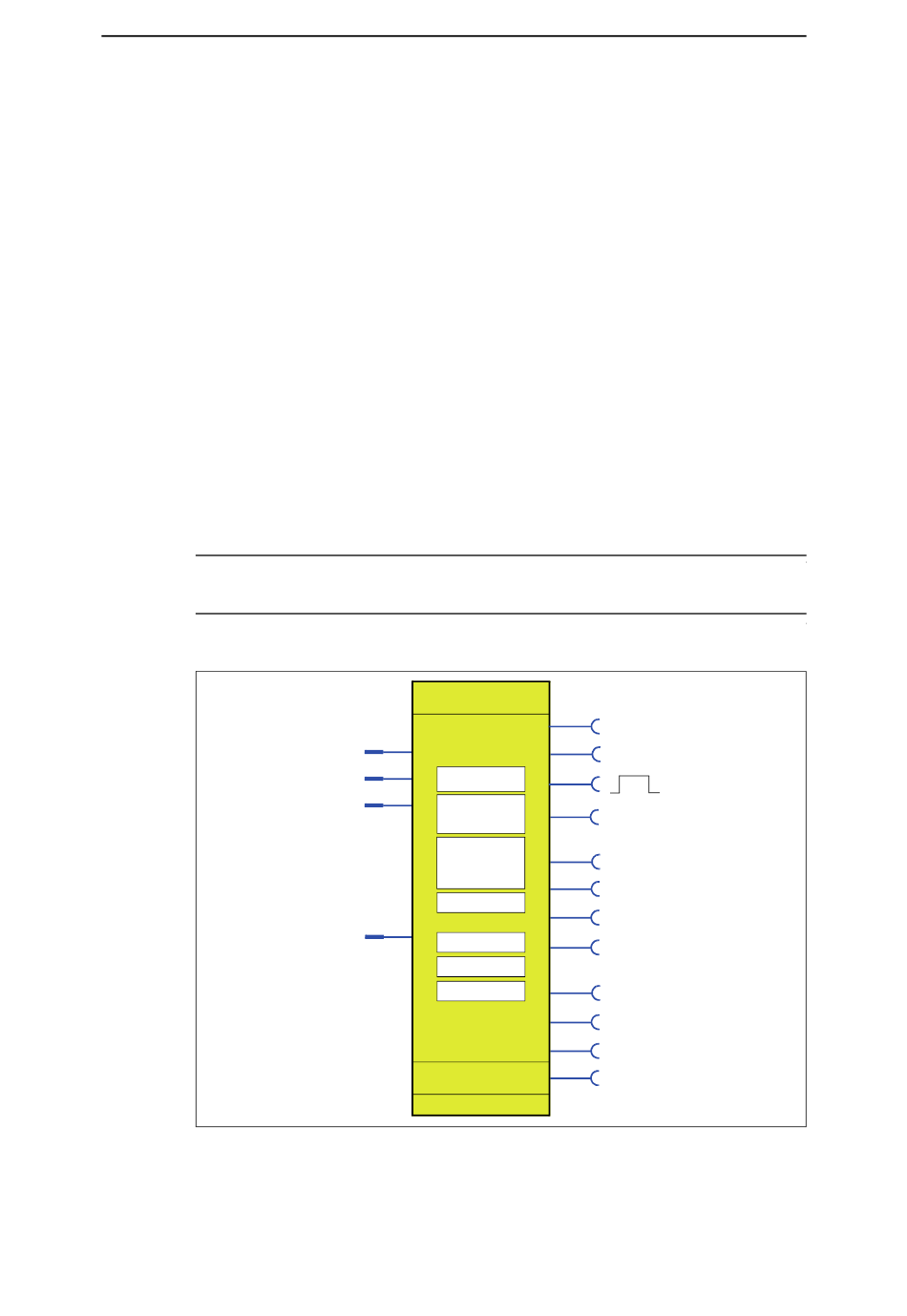

Fig. 4-26: Schematic of the "Soft starter with reversing contactor" control function, "Protection/
Control" function block
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
Control commands
Protection/Control
Soft starter with
ON <
reversing contactor
Motor protection
OFF
Non-maintained
command mode
ON >
Change-over
command Saving
Separate failsafe
function from
control function
Load type
Feedback
FB ON*
Feedback time
Execution time
Interlocking time
*Feedback ON
Extended control
Motor control
Contactor controls
QE1
RIGHT
QE2
LEFT
QE3
20 ms
QE4
ON
Displays
QLE<
(ON <)
QLA
(OFF)
QLE>
(ON >)
QLS
(Fault)
Status
ON <
OFF
ON >
Interlocking time
active
