System description

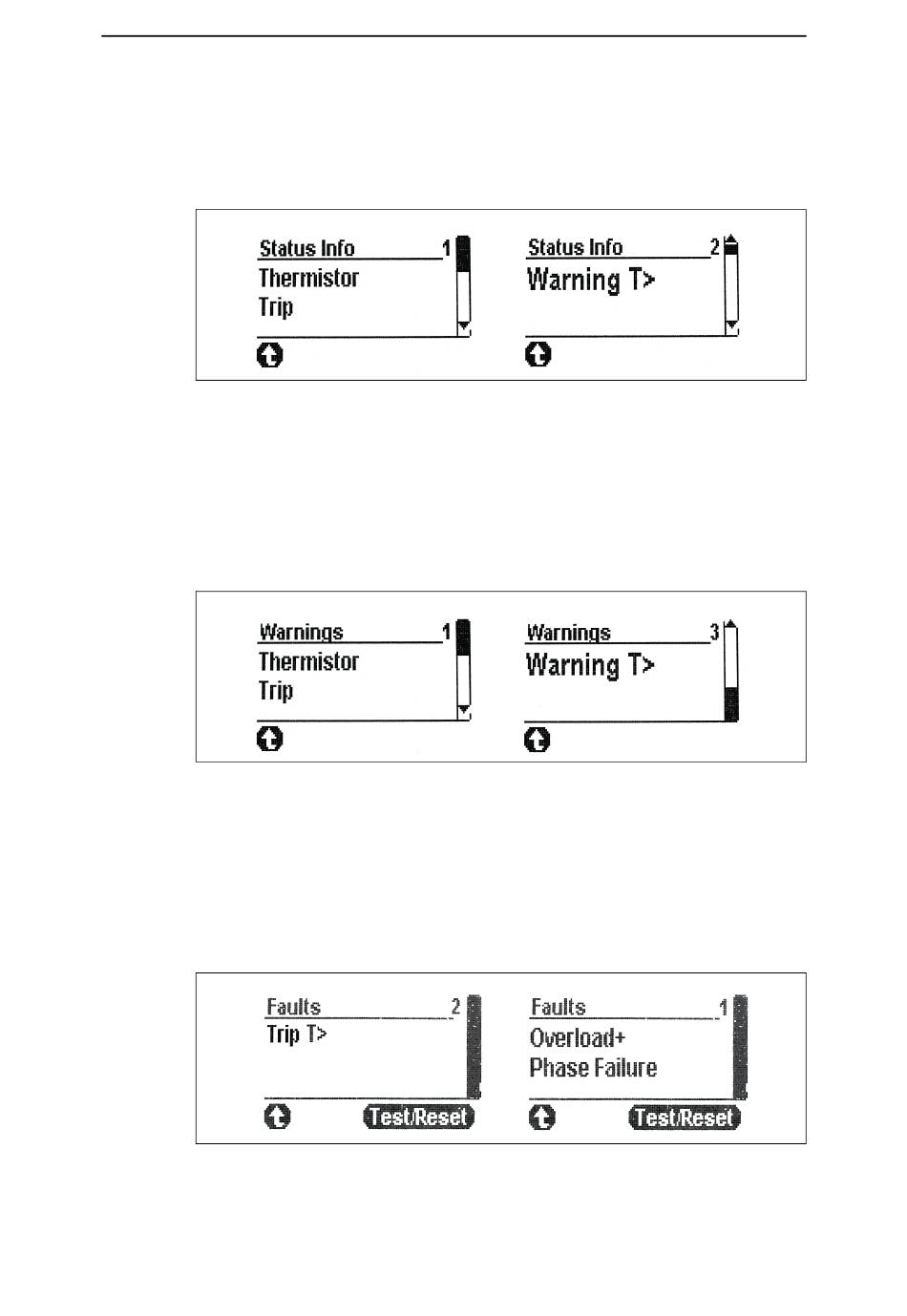

Display of all pending status information
This menu item provides an overview of all pending status information. A
detailed description of pending status information can be found in
Chapter 15 "Alarms, faults and system
Fig. 1-32: Display of all pending status information
Display of all pending warnings
This menu item provides an overview of all pending warnings. In the case of
a newly pending general warning, it is possible to switch to this menu item
automatically (this must be set via the display settings) so that the exact
cause of the general warning can be displayed.
A detailed description of pending warnings can be found in
Chapter 15 "Alarms, faults and system
Fig. 1-33: Display of all pending warnings
Display of all pending faults
This menu item provides an overview of all pending faults. In the case of a
newly pending general fault, it is possible to switch to this menu item
automatically (this must be set via the display settings) so that the exact
cause of the general fault can be displayed.
A detailed description of pending faults can be found in
Chapter 15 "Alarms, faults and system
Fig. 1-34: Display of all pending faults
1-86
events".
events".
events".
