Outputs
2) Output of the effective motor current - only part of the motor current
range (overload range)
The motor current of a motor ranges from 0 to 8 A.
The rated current I
The parameterized set current I
current I
N
displayed on a pointer instrument via the analog module output.
In SIMOCODE pro, representation of the effective phase currents or the
maximum current (current IL_1, IL_2, IL_3, max. current I_max) corresponds
to the selected range as a percentage of the parameterized set current I
– 2 A motor current corresponds to 100 % of I
– 8 A motor current corresponds to 400% of I
– The smallest unit for the effective motor current in SIMOCODE pro is 1%
(see measured values data record 94).

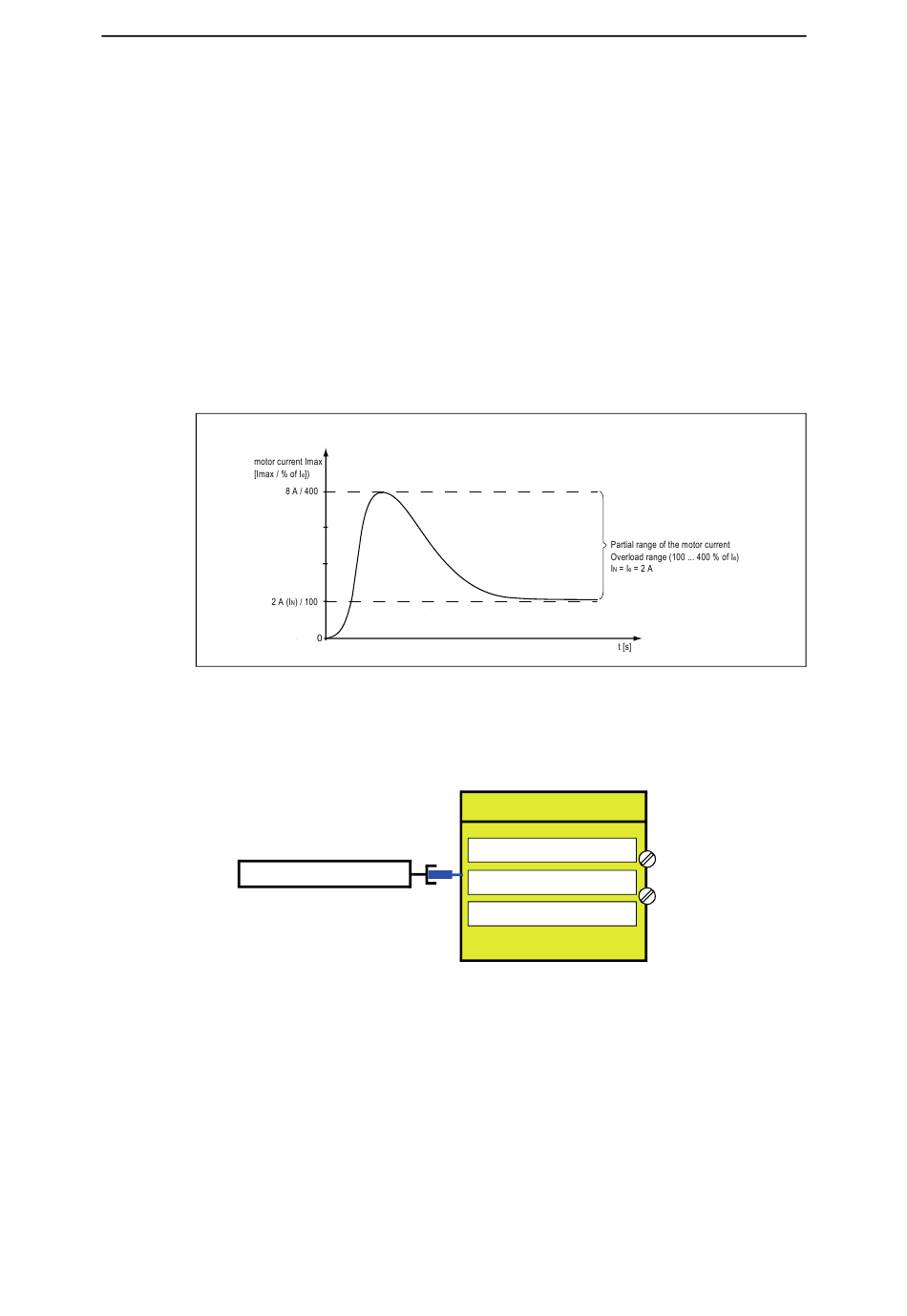

Fig. 6-10: Application example: Motor current output - Overload range
As a result,
– The "Start value of value range" to be selected is:
– The "End value of value range" to be selected is:
Fig. 6-11: Application example: Motor current output - Output values to function block
AM Output
When the parameterized "Output signal" = 0 - 20 mA:
– 100 % motor current corresponds to: 0 mA at the analog module output
– 400% motor current corresponds to: 20 mA at the analog module output.
When the parameterized "Output signal" = 4 - 20 mA:
– 100 % motor current corresponds to: 4 mA at the analog module output
– 400% motor current corresponds to: 20 mA at the analog module output.
6-14
of the motor at nominal load is 2 A.
N
s
(2 A). However, only the overload range (2 A - 8 A) is to be
Assigned
analog output value
100
Max. current I_max
400
0-20 mA
in SIMOCODE ES corresponds to the rated
s
s
100
400.
AM Output
Start value of value range
End value of value range
Output signal
GWA 4NEB 631 6050-22 DS 03
:
s
OUT+
OUT-
SIMOCODE pro
