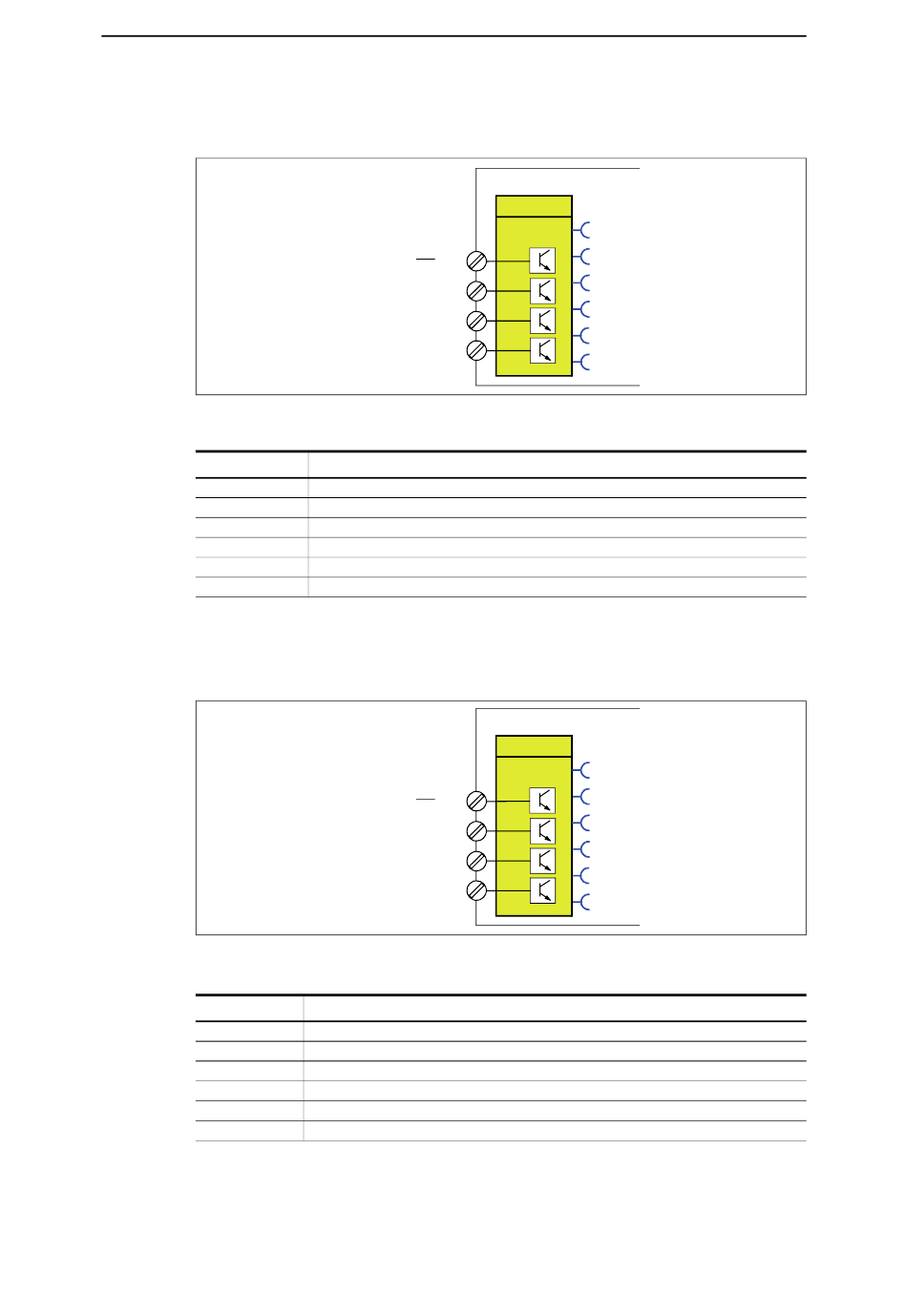

The following schematic shows the "DM1 Inputs" function block as failsafe

digital module DM-F Local:

Fig. 7-7: The following schematic shows the "DM1 Inputs" function block as failsafe digital module

Table 7-3: The following schematic shows the "DM1 Inputs" function block as failsafe digital module

The following schematic shows the "DM1 inputs" function block as failsafe

digital module DM-F PROFIsafe:

Fig. 7-8: The following schematic shows the "DM1 Inputs" function block as failsafe digital module

Table 7-4: The following schematic shows the "DM1 Inputs" function block as failsafe digital module

DM-F PROFIsafe

1 - "tripped" state

Start: Start input state (Y33)

Feedback: Feedback circuit state (Y34): 1 - closed; 0 - open

Cascade input state (1)

Sensor circuit 1 state (Y12)

Sensor circuit 2 state (Y22).

IN1 (83) state

IN2 (85) state

IN3 (89) state

FBC feedback circuit state (91): 1 - closed; 0 - open

Digital module (DM)

Digital module (DM)
