Standard functions

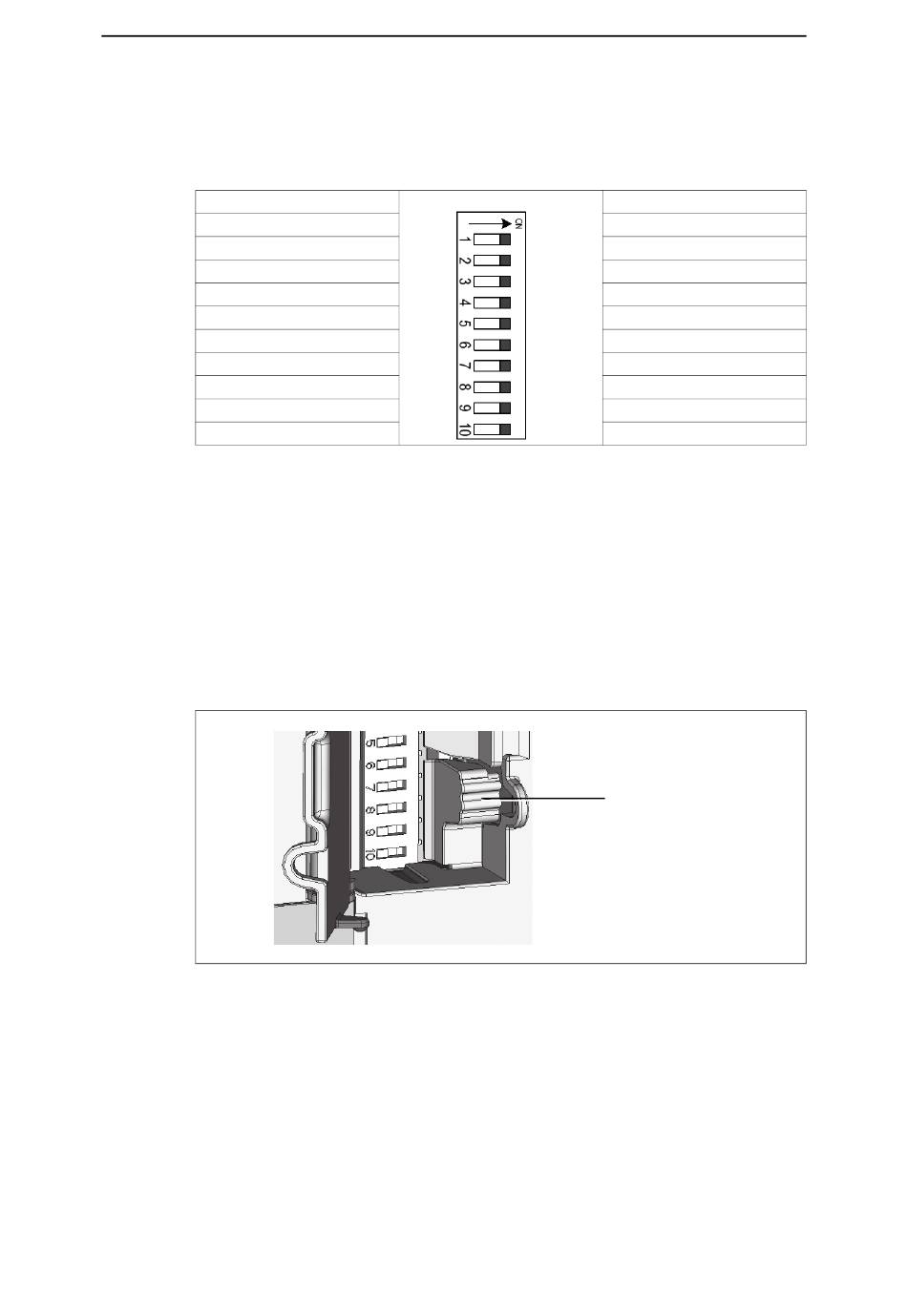

Settings of the DIP switches (DM-F Local)
Before commissioning the DM-F PROFIsafe set the PROFIsafe address as
follows:
Switch position
10 = 2
Table 10-13: DIP switch settings (DM-F PROFIsafe)
When one DIP switch is set to ON, the respective value is active.
When more than one DIP switch is set to ON, the respective values must be added
up.
• Briefly press the SET/RESET button.
LEDs from 1 to 10 show the current PROFIsafe address.
• Setting the PROFIsafe address:
– Switch off the supply voltage
– Set the DIP switch configuration
– Switch on the supply voltage.
Fig. 10-12: SET/RESET button
10-22
0
1 = 2
1
2 = 2
2
3 = 2
3
4 = 2
4
5 = 2
5
6 = 2
6
7 = 2
7
8 = 2
8
9 = 2
9
Value
1
2
4
8
16
32
64
128
256
512
SET/RESET button
SIMOCODE pro
