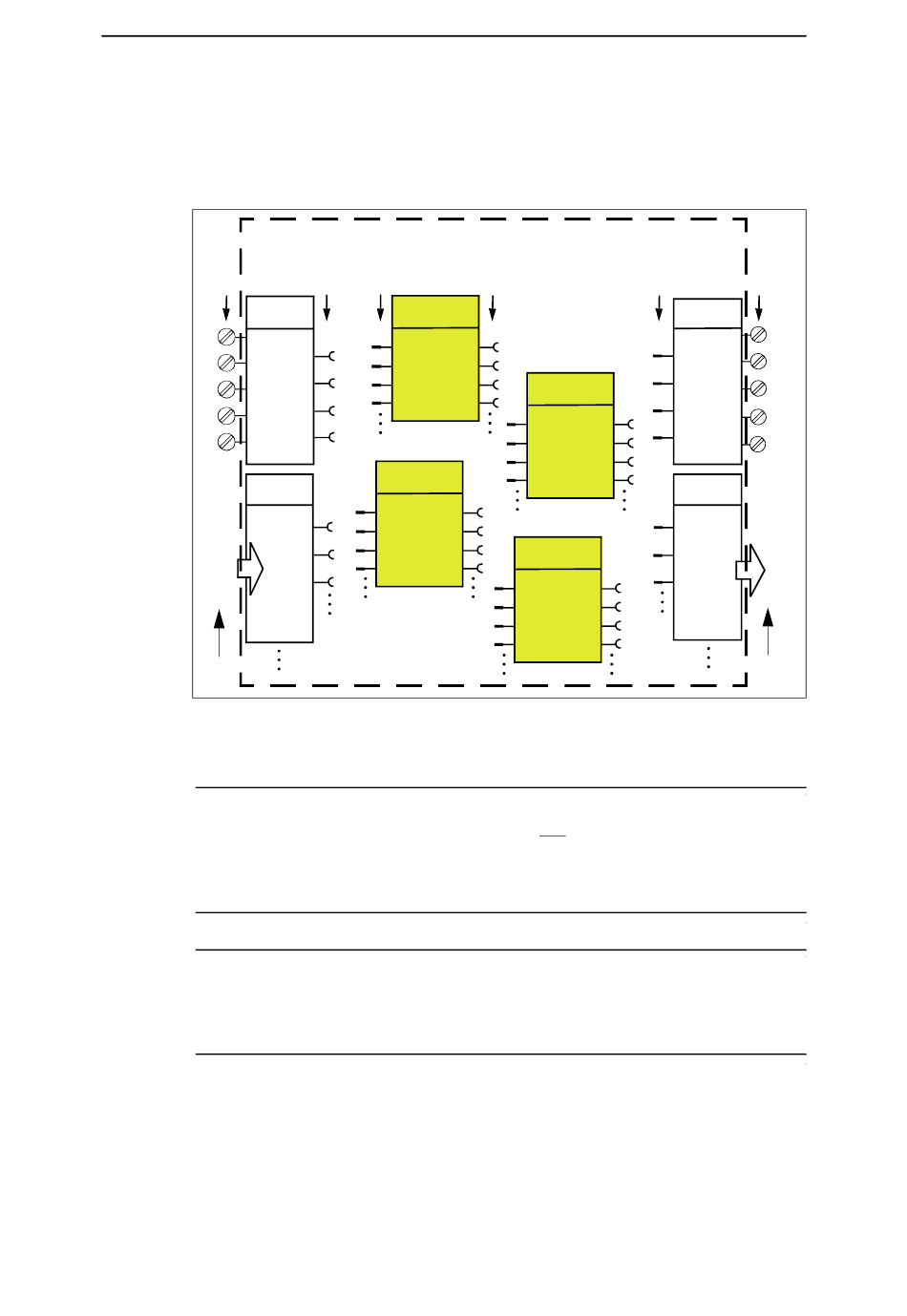

Schematic of principle structural configuration
The following function block diagram shows the principal configuration of
SIMOCODE pro with its external inputs and outputs and internally stored
function blocks:
SIMOCODE pro (external)
Inputs
(terminals)
BU Inputs
IN1
IN2
IN3
IN4
Cyclic
Receive
From DP
Master
DP
PROFIBUS DP
Fig. 1-41: Principal configuration of SIMOCODE pro
Connecting plugs with sockets
Note
The function block plugs and sockets have not already been connected at
the factory with the binary inputs and the relay outputs of the basic unit.
The internal wiring (connecting the plugs and sockets) is determined by the
selected application.
Note
If external wiring has already been carried out, but SIMOCODE pro has not
yet been parameterized:
If you now press a button, the contactors will not be activated!
1) If you select and load a preset application (e.g. the reversing starter) in
SIMOCODE ES, all links and interlocks for the reversing starter are created in
the basic unit.
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
SIMOCODE pro (internal)
Sockets Plugs Sockets
Function Block A
1
Standard function
2
3
4
Function Block B
Bit 0.0
Control Function
Bit 0.1
Bit 0.2
1)
System description
Plugs
BU Outputs
1
2
Function Block C
3
4
Standard function
Cyclic
Send
Bit 0.0
Bit 0.1
Function Block D
Bit 0.2
Logic Function
Outputs
(terminals)
OUT1
OUT2
OUT3
To DP
Master
DP
PROFIBUS DP
1)
1-113
