System description
Displays of the operator panel with display
The display shows current measured values, operating data and diagnostic
data as well as the status information of the motor feeder in plain text or
with the aid of symbols.

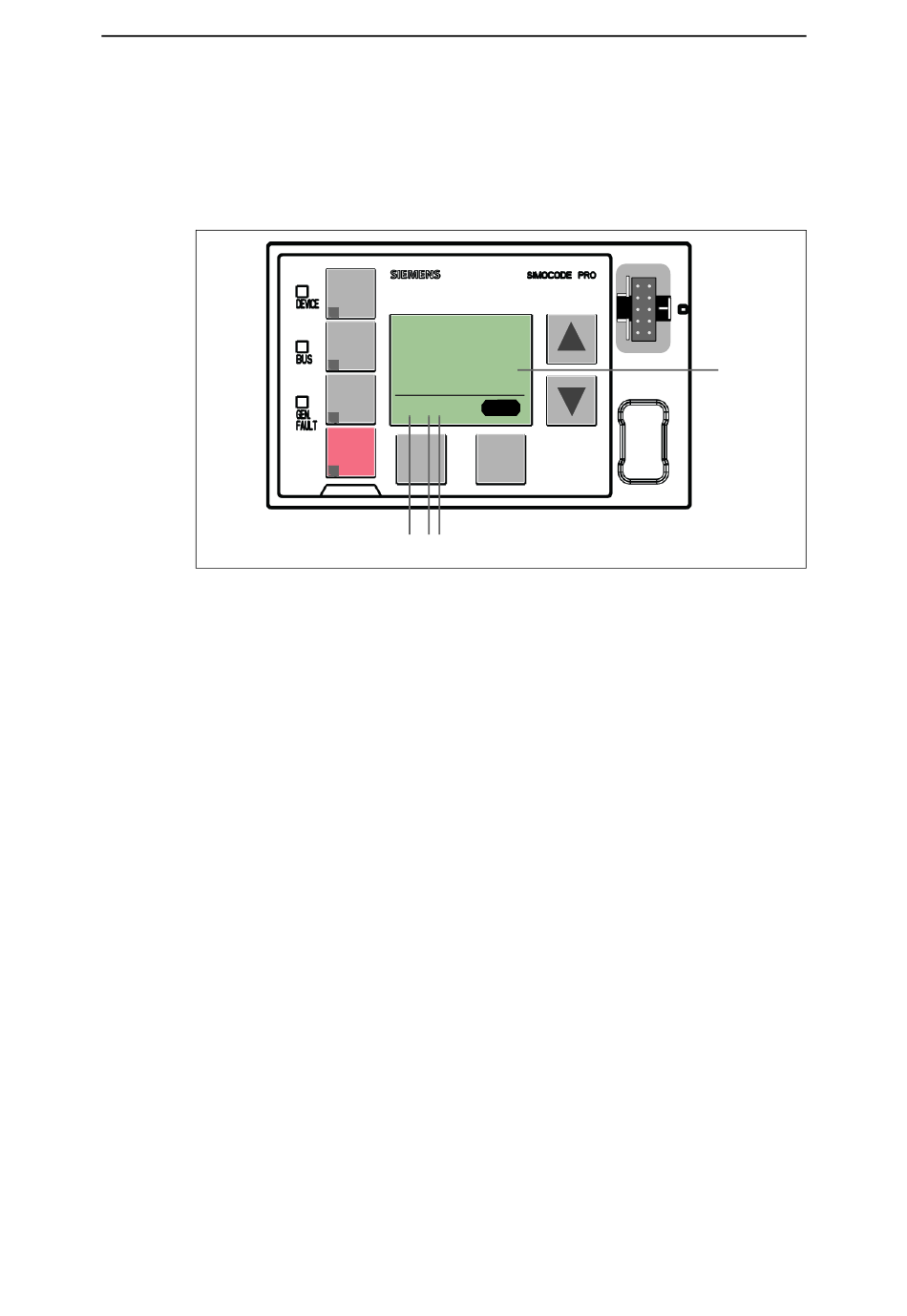

Fig. 1-15: Displays
1
Shows the set current I
The corresponding set current I
shown for motors with two speeds, depending whether the current speed
is slow or fast, e.g. 8.00 A.
For motors with two speeds, the left-hand softkey can be used when the
motor is stopped to alternate between the display of the two set currents.
When running, the set current for the active motor speed is always
displayed.
2
Shows the set class time of the overload protection, e.g. 10 = Class 10
(class = trip class)
3
Indicates that temperature monitoring is active, e.g. the temperature
monitoring of the motor via thermistors or analog temperature sensors
(Pt100, Pt1000, KTY, NTC). T = Temperature monitoring is active.
4
The main display enables customized depiction of different measured
values when running. This is the standard display at the topmost menu
level. Predefined profiles in the display settings can be selected for this
purpose. When the "Menu" softkey on the right is pressed, the submenus of
the main display can be navigated (see
1-38
IL1 2.80 A
IL2 2.16 A
IL3 2.00 A
8.00A/5/T Menu
1 2 3
/ nominal motor current in A.
s
1 or I 2 is always
s s
"Read and adapt main
4
display").
