General procedure for parameterizing a reversing starter
Parameterization means:
1. Setting values
2. Connecting function blocks
Where this example is concerned, this means:
• Select the control function "Reversing Starter". This establishes all the
interlocks and connections for the reversing starter in the basic unit.
• Determine the set current I
corresponds to the motor rated current, i.e. 3 A.
• The "BU Outputs" function block must be connected to the sockets of the
"Protection/Control" function block via the software, i.e:
– "BU Output 1" plug to "Contactor Control QE1" socket (right)
– "BU Output 2" plug to "Contactor Control QE2" socket (left).
• The plugs on the "Protection/Control" function block must be connected via
software to the sockets on the "BU Inputs" function block, i.e.
– Control station plug - Local Control [LC] ON< to "BU Input 1" socket
– Control station plug - Local Control [LC] OFF to "BU Input 2" socket
– Control station plug - Local Control [LC] ON> to "BU Input 3" socket.

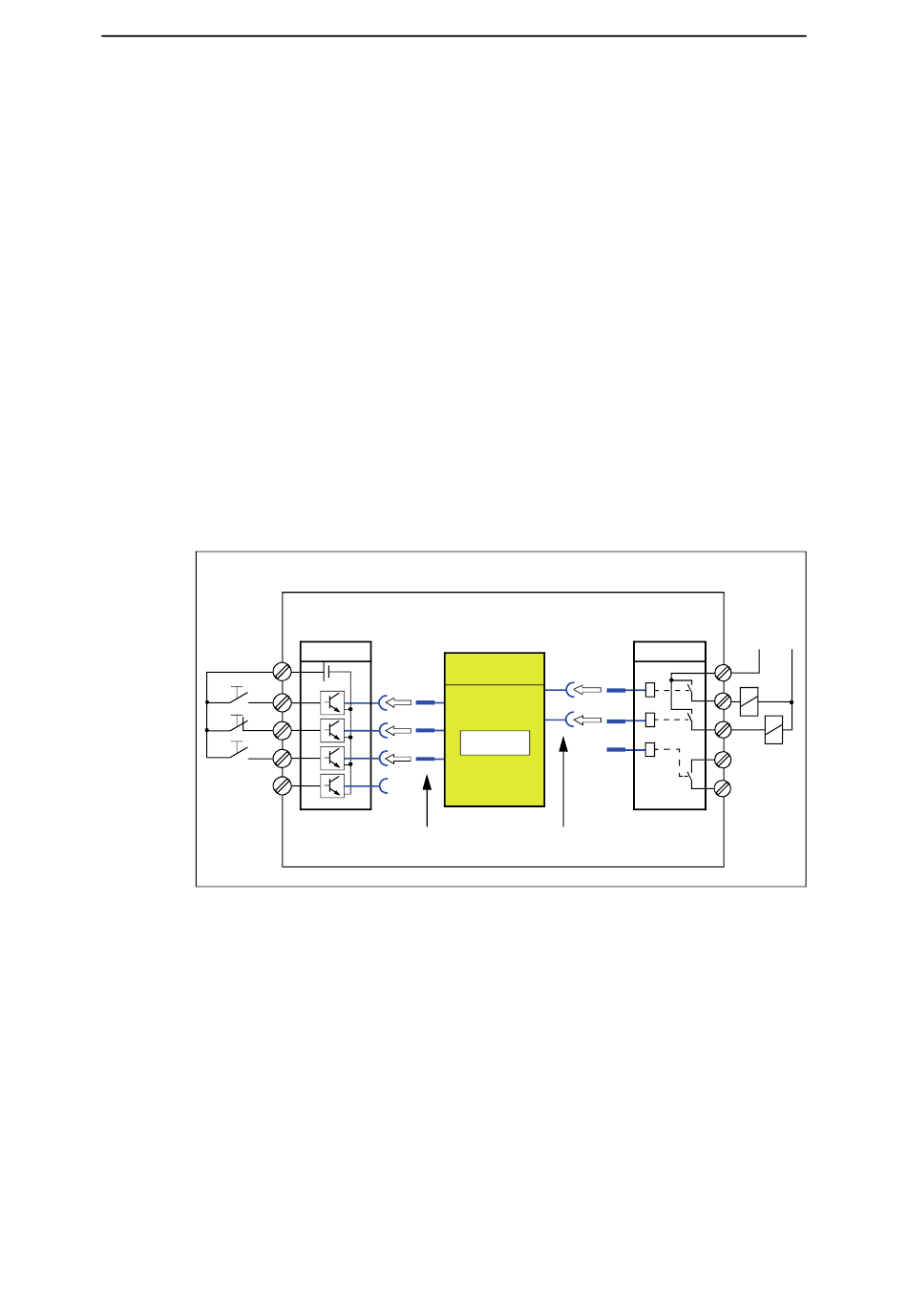

Fig. 2-3: Schematic of a parameterization example
The assignment of the contactor controls QE depends on the parameterized
control function. See
controls, lamp controls and status information for the control functions".
