Current/voltage measuring modules

You can attach these system components as follows:
• Current/voltage measuring modules up to 100 A: Standard mounting rail
mounting or screw attachment with mounting lugs (Order No: 3RP1900-0B)
and screws for mounting on a level surface. These mounting lugs are only
suitable for current/voltage measuring modules (and current measuring
modules)! For current/voltage measuring modules up to 25 A you will require
an additional 25 mm spacer.
• Current/voltage measuring modules up to 200 A: Standard mounting rail or
screw attachment.
• Current/voltage measuring modules up to 630 A: Screw attachment.
3UF7110-1AA00-0
3UF7111-1AA00-0
Snap-on mounting
Screw attachment
3RP1900-0B
3UF7113-1AA00-0
20 A up to 200 A
Snap-on mounting or
screw attachment

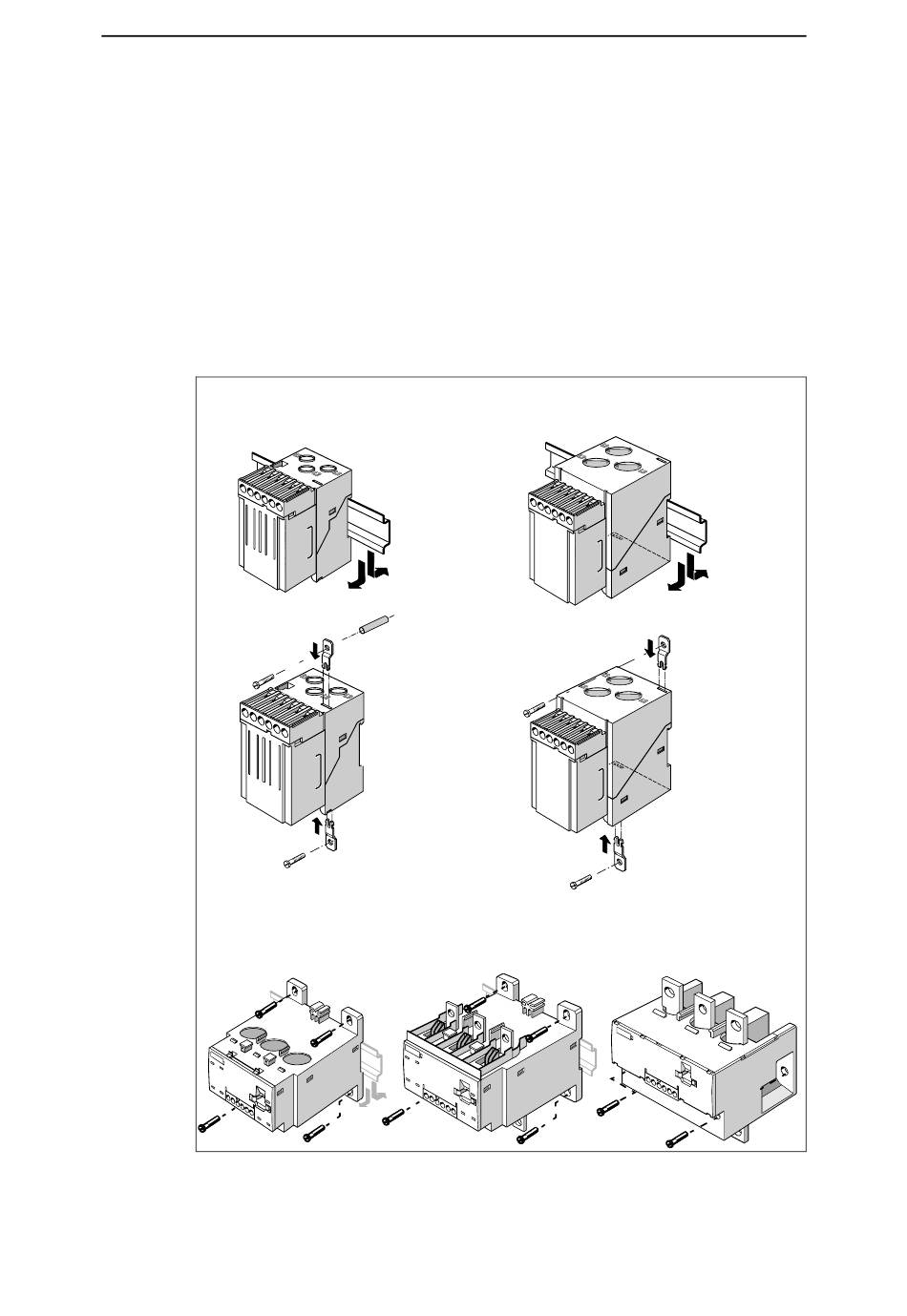

Fig. 13-3: Mounting the current/voltage measuring modules
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
0.3 A up to 3 A
2.4 A up to 25 A
45 mm width
25 mm spacer
3UF7113-1BA00-0
20 A up to 200 A
Snap-on mounting or
screw attachment
Mounting, wiring, interfaces
3UF7112-1AA00-0
10 A up to 100 A
55 mm width
3RP1900-0B
3UF7114-1BA00-0
63 A up to 630 A
screw attachment
13-7
