Analog Module Output - Siemens SIMOCODE pro System Manual

6.5

Analog module output

Description
You can expand basic unit 2 with an analog output using the analog module.
The corresponding function block allows every analog value (2 byte/1 word)
in SIMOCODE pro to be output as a 0/4 A - 20 mA signal, for example, on a
connected pointer instrument. By activating the function block via the
"Assigned analog output value" plug with any integer value between 0 and
65535, an equivalent analog signal of 0 to 20 mA or 4 to 20 mA will be sent
to the output terminals of the analog module.
Note
The "AM Output" function block can only be used if the analog module (AM)
is connected and configured in the device configuration!
Schematic

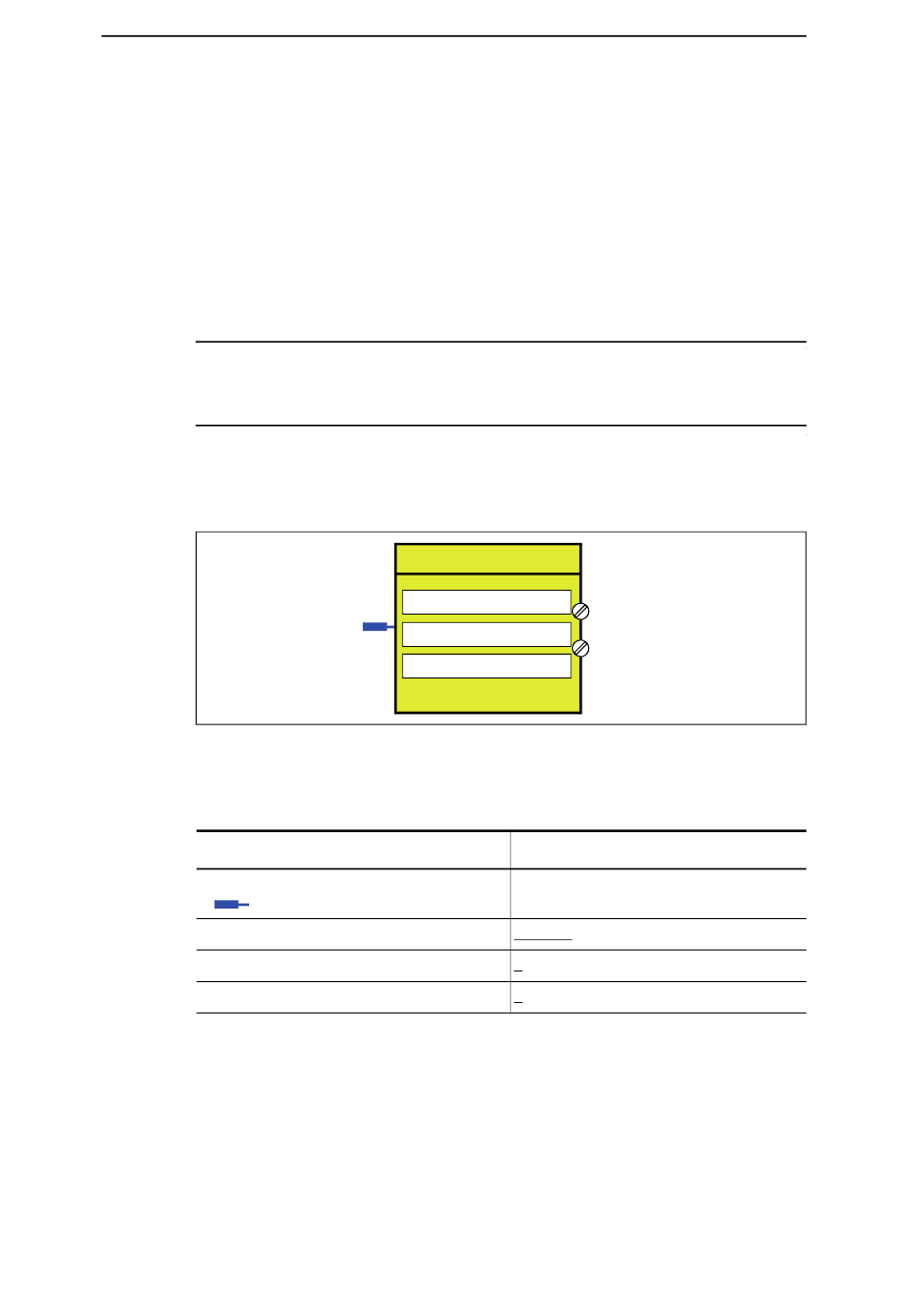

The following schematic shows the "AM Output" function block:
Fig. 6-7: Schematic of the "AM Output" function block
Settings
Signal/value
Assigned analog output value
Output signal
Start value of value range
End value of value range
Table 6-5: "Analog module output" settings
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
Assigned
Start value of value range
analog output value
End value of value range
Output signal
AM Output
OUT+
OUT-
Range
Any value (1 word/2 bytes) in
SIMOCODE pro
0-20 mA or 4-20 mA
0 - 65535
0 - 65535
Outputs
6-11
