Dimension drawings
C.3
Current/voltage measuring modules
C.3.1
Current/voltage measuring module (through-hole converter)
3UF7110, 0.3 A to 3 A,
3UF7111, 2.4 A to 25 A
21

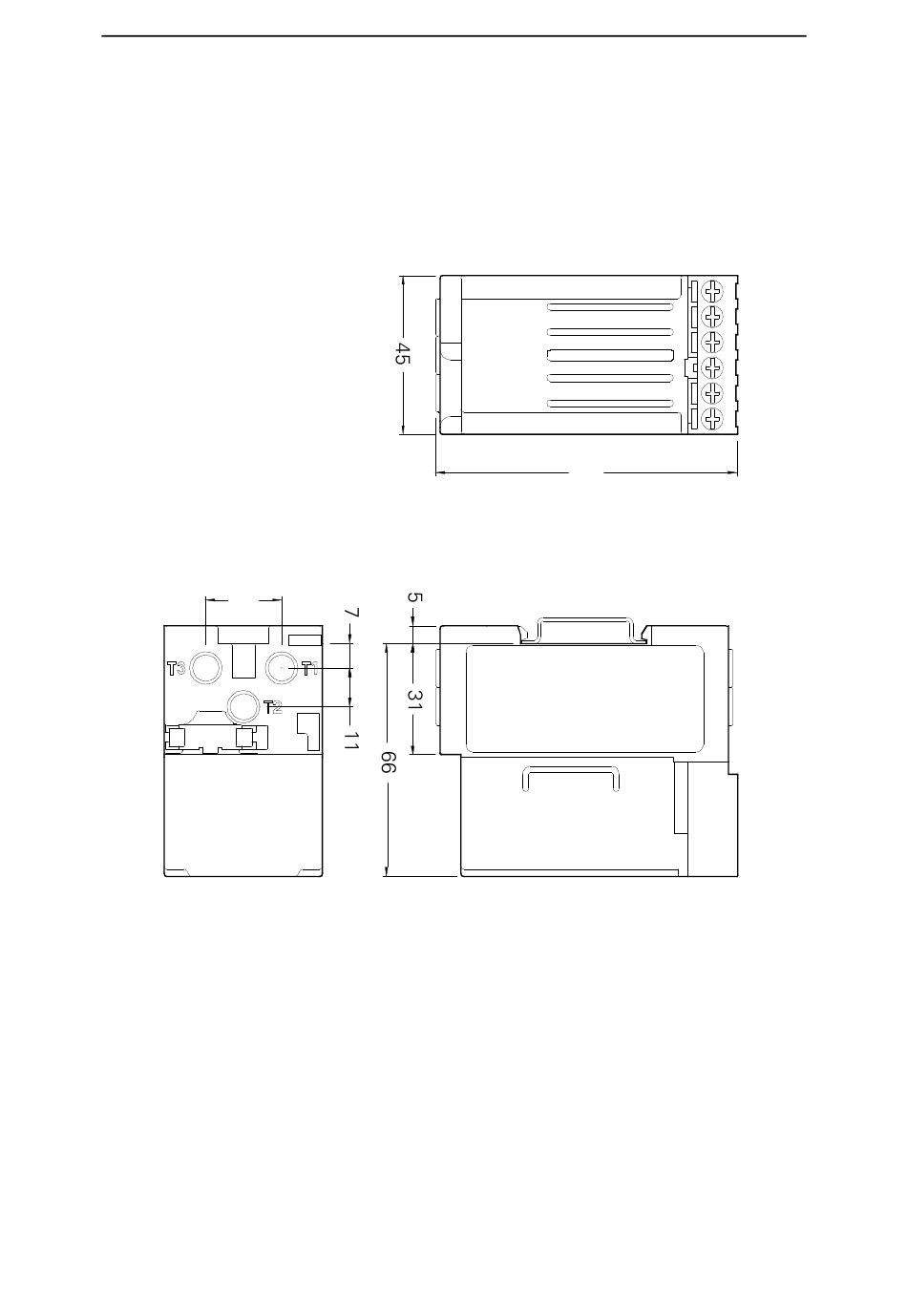

Fig. C-8: Current measuring module (through-hole converter) 3UF7110, 0.3 A to 3 A
3UF7111, 2.4 A to 25 A
C-8
85
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
