System description

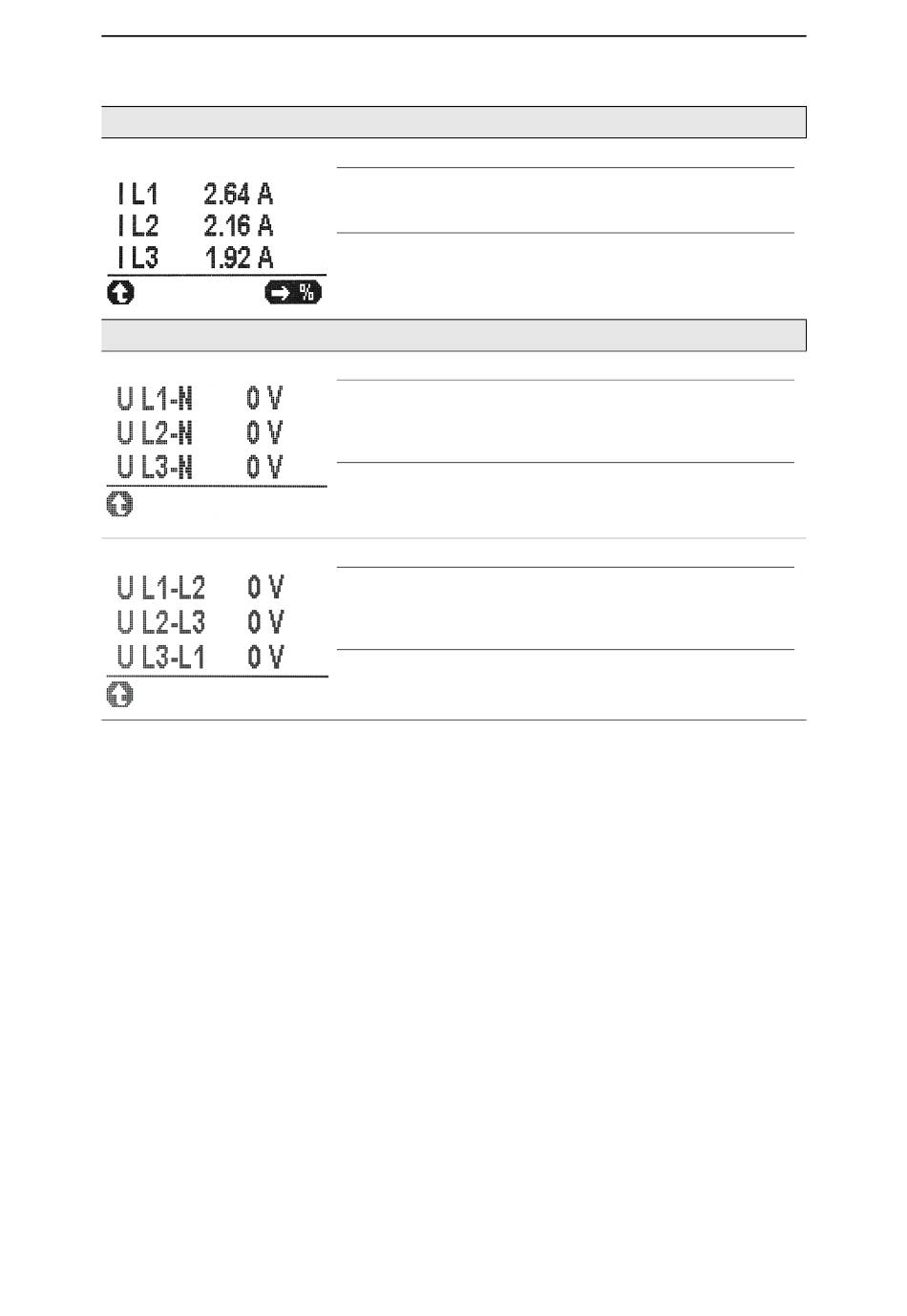

Current measuring

I L1, I L2, I L3

Voltage measurement

UL1-N, UL2-N, UL3-N (example)

U L1-L2, U L2-L3, U L3-L1

Table 1-15: Displays the current status of all device I/Os

Displays the currents in all three phases in A.

Only available if a current measuring module or current/voltage

measuring module is used.

Displays all phase voltages in V.

Only possible if a current/voltage measuring module is being used.

If an OPD above version *E04* is used: Values will only be

displayed if phase voltage is set/configured.

Displays all line-to-line voltages in V.

Only possible if a current/voltage measuring module is being used,

line-to-line voltage is set/configured and the OPD used is above

version *E04*.
