Outputs
6.6

Cyclic Send

Description
The "Cyclic Send" function blocks allow you to specify the information to be
transferred cyclically to the automation system via PROFIBUS DP .
"Cyclic Send" function blocks consist of:
• Eight bits each (two bytes, byte 0 and byte 1 for binary information)
• Four words (= eight bytes, byte 2 to 9 for four analog values, freely
parameterizable)
• One output to PROFIBUS DP each.
Overall there are three "Cyclic Send" function blocks (0, 1, 2/9).
Schematic

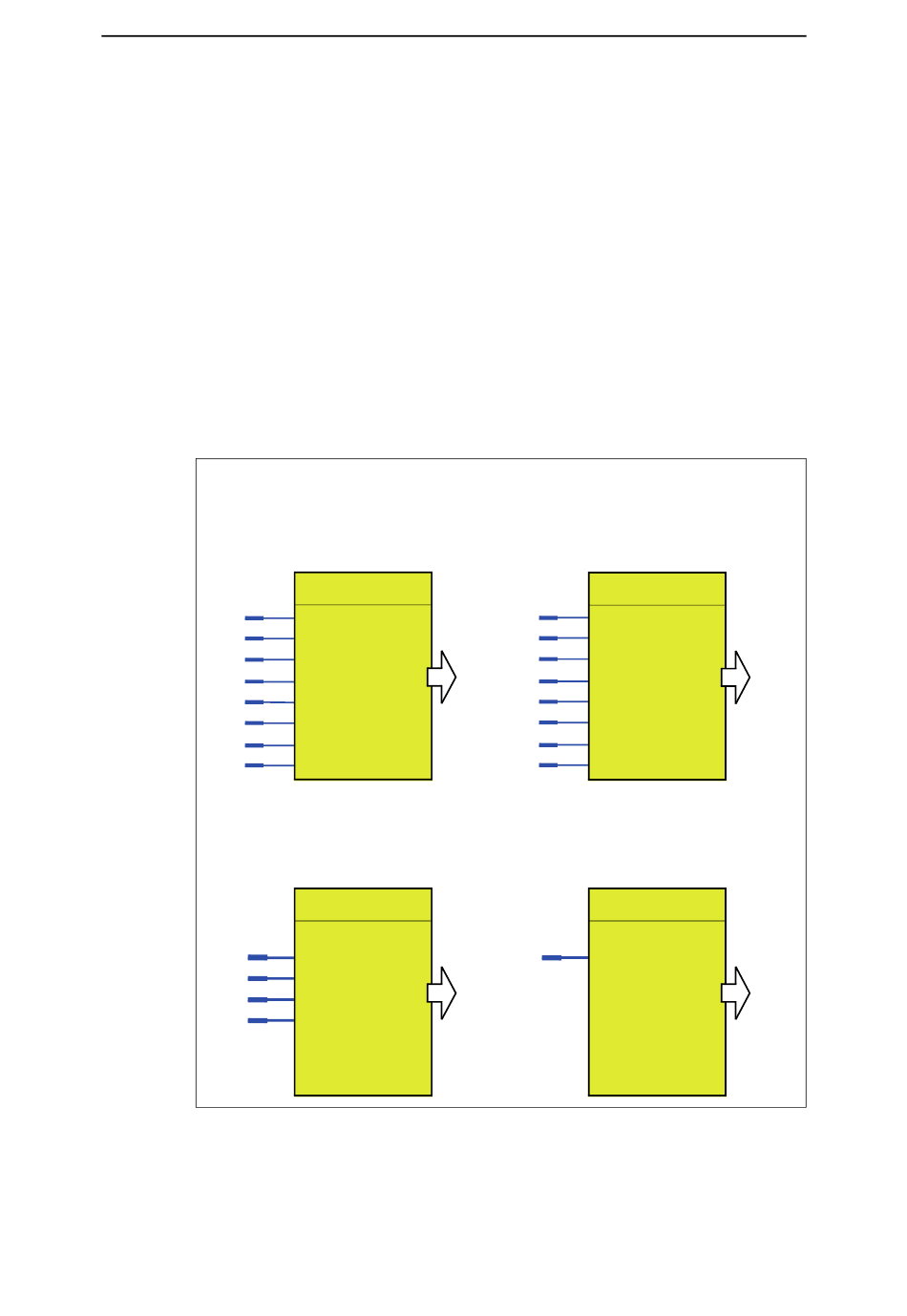

The following schematic shows the "Cyclic Send" function blocks:
Cyclic Send 0 with eight bits
for binary information
Byte 0
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
Cyclic Send 2/9 with four words (eight bytes)
for up to four analog values
Fig. 6-13: Schematic of the "Cyclic Send" function blocks
6-16
Basic type 1 (for BU 2)
Basic type 2 (for BU1 and BU2)
Cyclic Send 0
DP
to PROFIBUS DP
Basic type 1 (for BU 2)
Cyclic Send 2/9
Byte 2/3
Byte 4/5
to
DP
PROFIBUS DP
Byte 6/7
Byte 8/9
Cyclic Send 1 with eight bits
for binary information
Basic type 1 (for BU 2)
Basic type 2 (for BU1 and BU2)
Cyclic Send 1
Byte 1
Bit 0
Bit 1
Bit 2
Bit 3
to PROFIBUS DP
Bit 4
Bit 5
Bit 6
Bit 7
Cyclic Send 2/3 with one word (two bytes)
for one analog value
Basic type 2 (for BU1 and BU2)
Cyclic Send 2/9
Byte 2/3
to
PROFIBUS DP
