Mounting, wiring, interfaces
Example

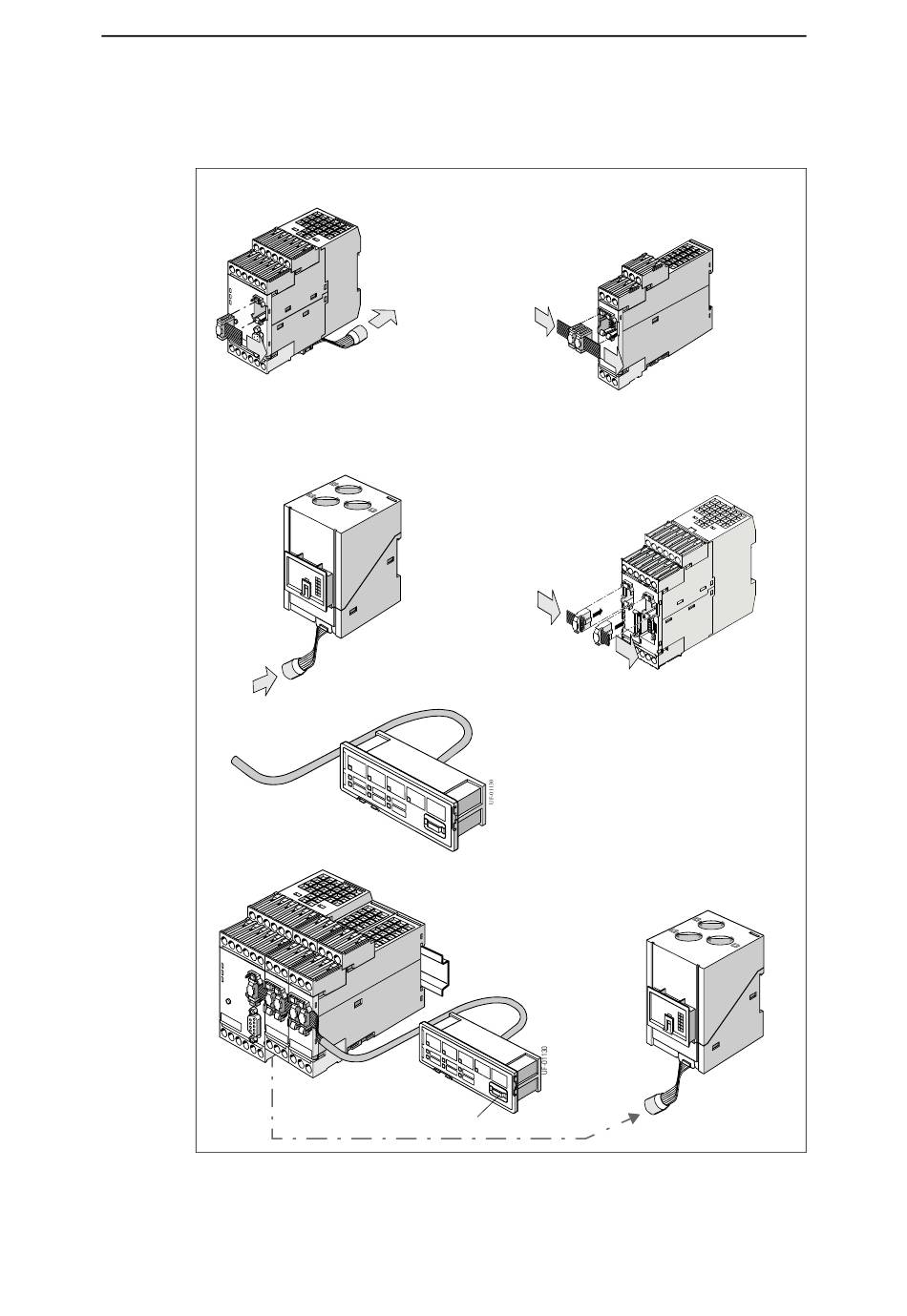

The following figure shows an example of a SIMOCODE pro V installation:
Basic units (BU)
Outgoing, to
• Expansion module
• Operator panel
Current measuring module (IM)
Incoming, from
• Basic unit
Operator panel (OP)
SIMOCODE pro V
Fig. 13-26: Example of system interfaces
13-38
Expansion modules (DM, AM, EM, TM)
Incoming, from
• Expansion module
• Basic unit BU2
Outgoing, to
• Current measuring module
• Decoupling module
Digital module DM-F Local,
DM-F PROFIsafe
Incoming, from
• Expansion module
• Basic unit BU2
Incoming, from
• Upstream expansion module
• Basic unit
Basic unit (BU2)
Expansion modules
Operator panel (OP)
Cover
Outgoing, to
• Expansion module
• Operator panel
Outgoing, to
• Expansion module
• Operator panel
Current measuring
module (IM)
