System description
measuring module up to 630 A can only be mounted using the integrated
screw attachments.
Note:
Current measuring modules with a set current of up to 100 A can be
connected to the basic unit mechanically and be installed as a unit (behind
one another). Larger current measuring modules can only be mounted
separately.
1.7.5 Current/voltage measuring modules (UM) for the SIMOCODE pro V device
series
The SIMOCODE pro V device allows use of a current/voltage measuring
module instead of a current measuring module. In addition to measuring the
motor current, current/voltage measuring modules also enable:
• Measuring voltages up to 690 V
• Calculation and monitoring power and cos phi
• Monitoring of the phase sequence.

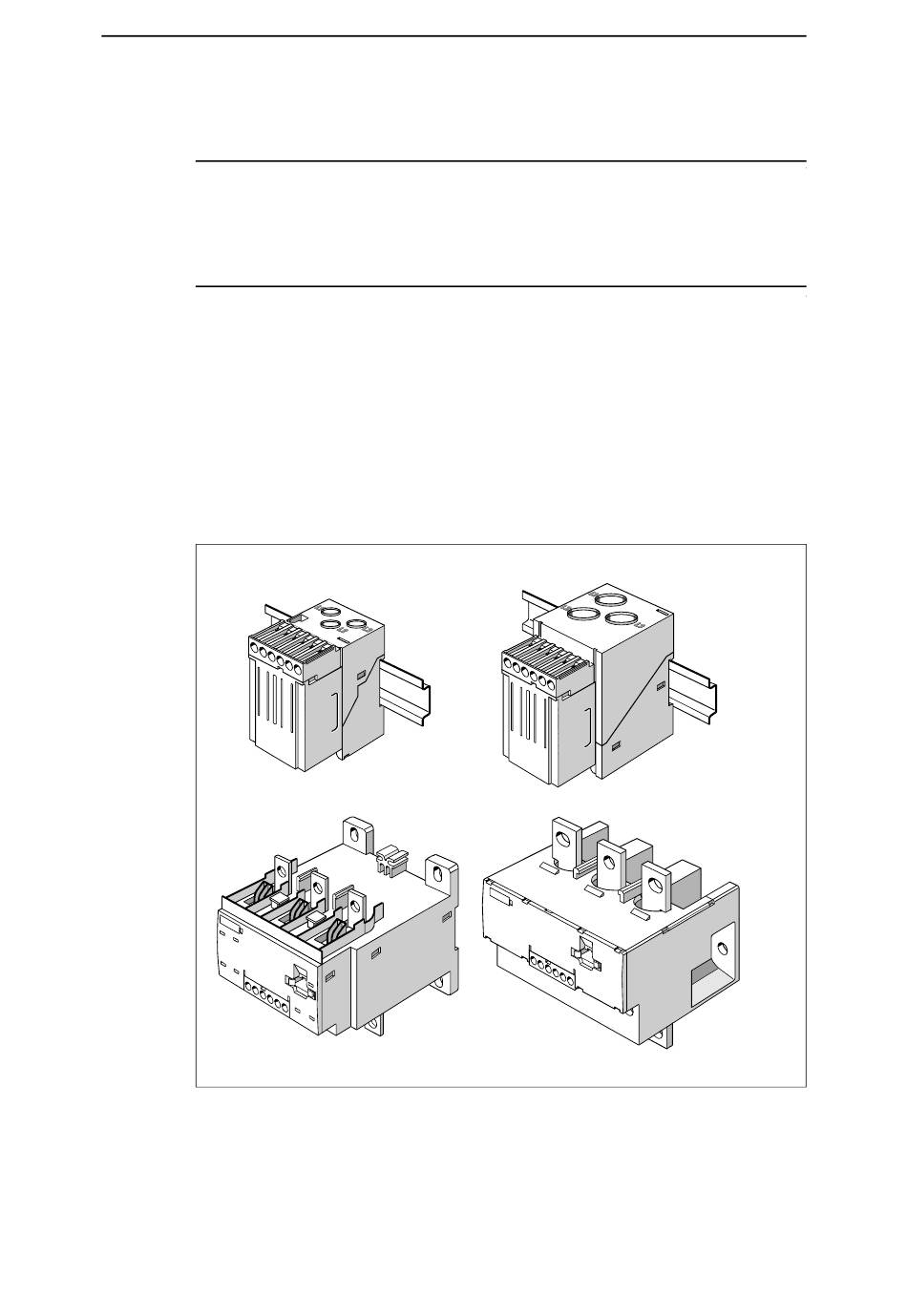

The following figure shows the various current/voltage measuring modules:
Fig. 1-37: Current/voltage measuring modules
The current/voltage measuring module is connected to the basic unit via a
connecting cable, which also supplies the power.
1-94
0.3 A - 3 A
2.4 A - 25 A
20 A - 200 A
10 A - 100 A
63 A - 630 A
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
