System description
1.6

Overview of system components

Devices
system components
Operator panel (OP)
Operator panel with display (OPD)
Current measuring modules (IM)
0.3 A - 3 A
2.4 A - 25 A
Current measuring module (IM)
10 A - 100 A
Current measuring module (IM)
20 A - 200 A
Current measuring module (IM)
63 A - 630 A
Current/voltage measuring modules
1)
(UM)
0.3 A - 3 A
2.4 A - 25 A

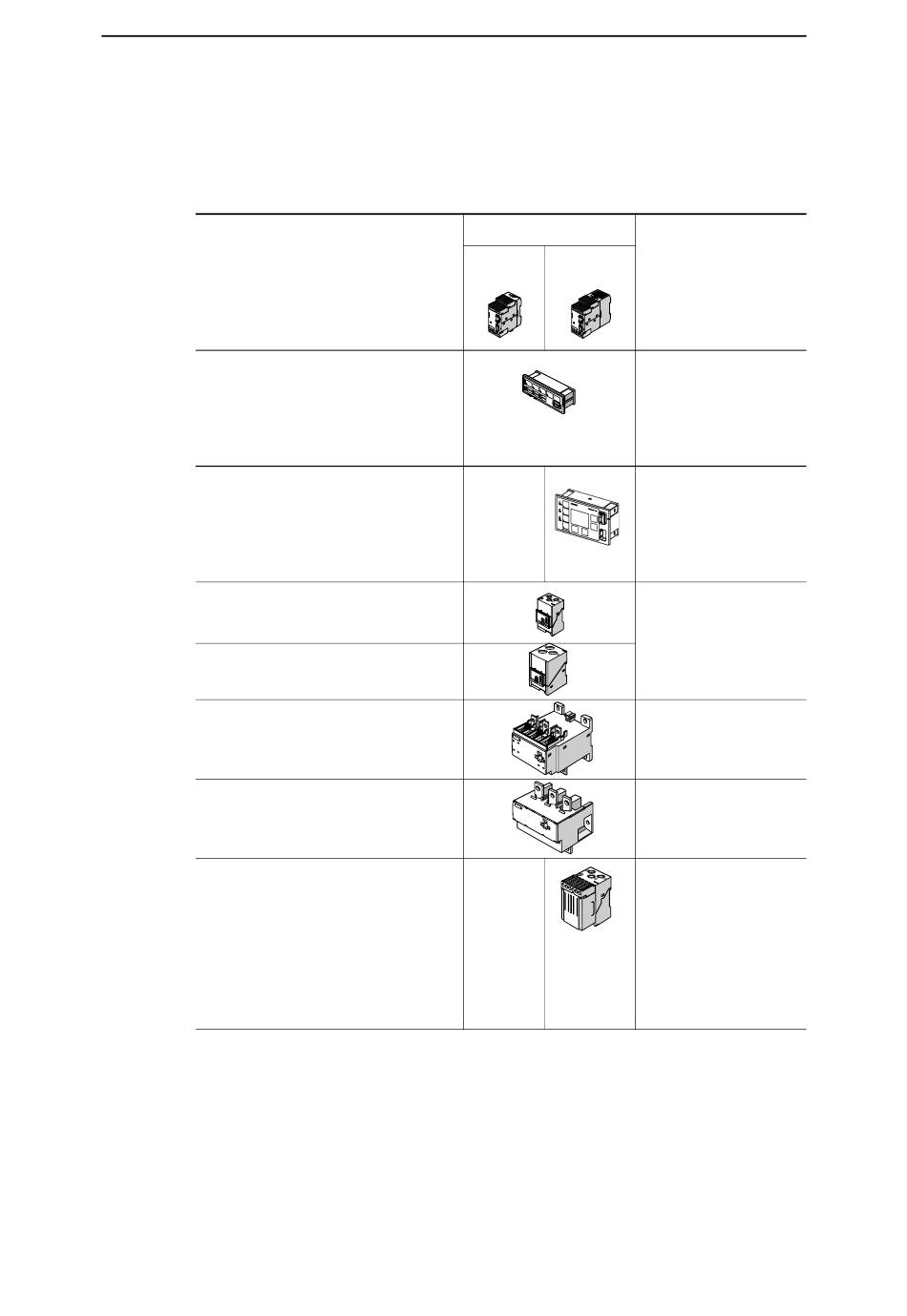

Table 1-6: System components, devices
1-24
Connectable
SIMOCODE
pro C pro V
(BU1) (BU2)
Installation in the
switchgear cabinet
door. Additional control
station and display.
With system interface
for connecting a PC
Installation in the
— switchgear cabinet
door. Additional control
station and display.
With system interface
for PC connection
Current measuring
with through-hole
technology. Basic unit
can be snapped on
Current measuring
with through-hole
technology or bus
connection system
Current measuring via
bus connection system
Can only be mounted
— next to the basic unit,
otherwise like current
measuring modules,
also:
- Voltage measurement
- Power measurement
- Cos phi measurement
- Phase sequence
