Mounting, wiring, interfaces
Digital module pin assignment

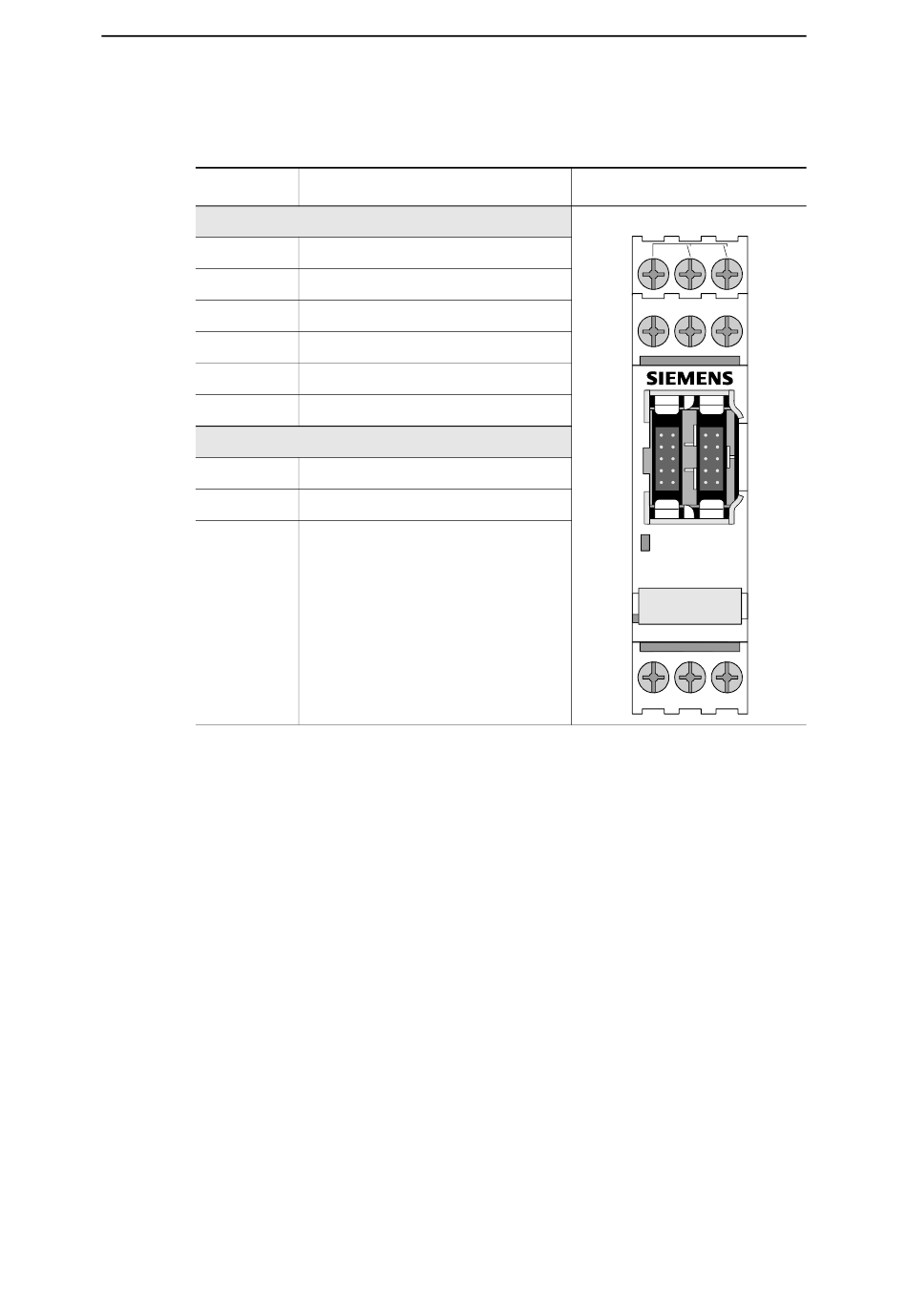

The following table shows the pin assignment of the removable terminals:
Connection
Upper terminals
20
21
22
23
24
25
Lower terminals
26
27
PE
Table 13-6: Pin assignment of the removable terminals of the digital module
13-16
Assignment
Ground for relay outputs 1 and 2
Relay output OUT1
Relay output OUT2
Digital input IN1
Digital input IN2
N/M for IN1 to IN4
Digital input IN3
Digital input IN4
System shielding
20 21 22
OUT1 .2
23 24 25
IN1 IN2
READY
26 27 PE
IN4
IN3
SIMOCODE pro
