Logic modules
11.1

Introduction

Description
Freely programmable logic modules are function blocks that process input
signals and provide binary or analog output signals according to their
internal logic components. Logic modules can contain:
• Plugs
• An internal logic component
• Sockets
• Settings, e.g. the time for a timer.
Schematic

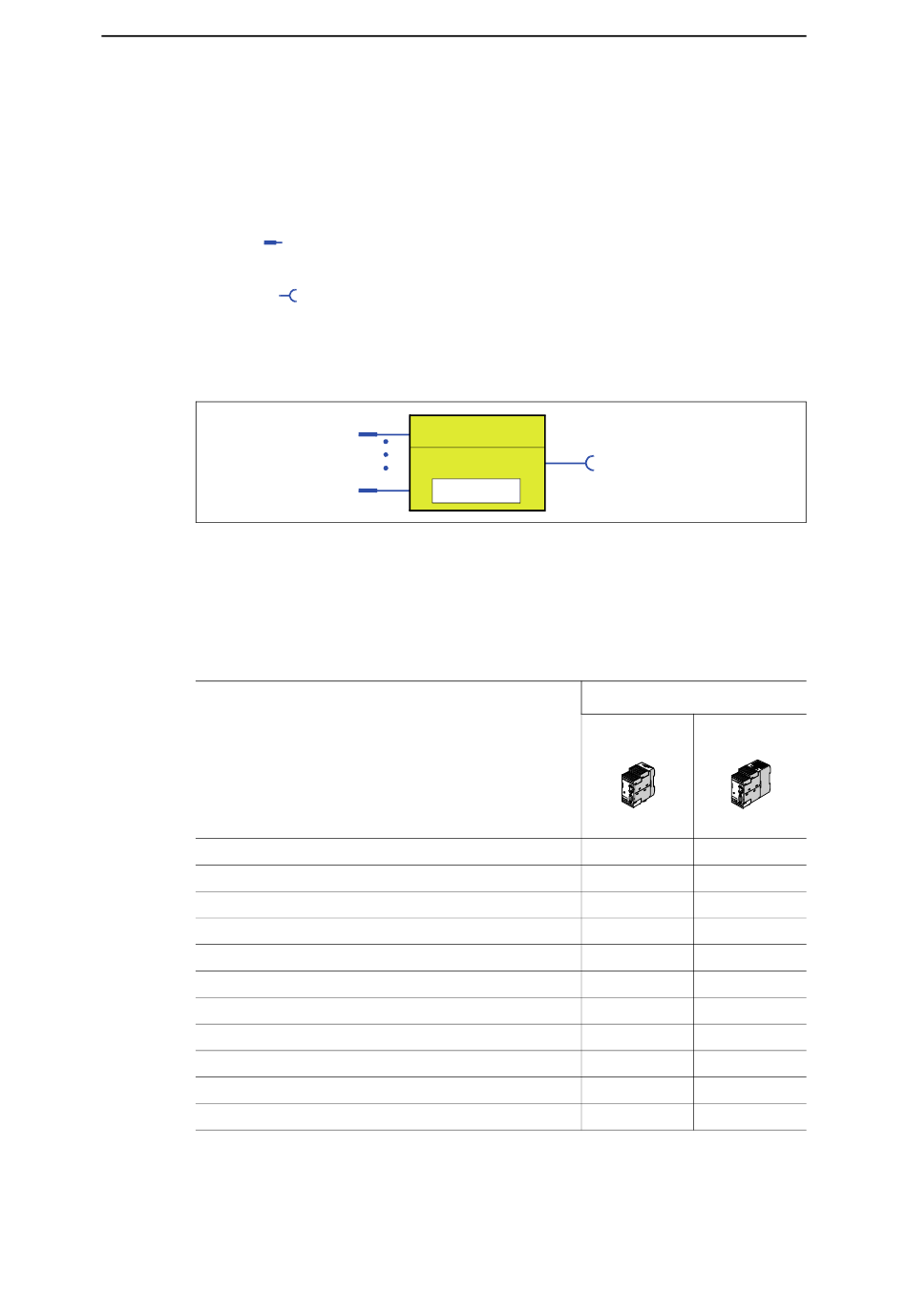

The following schematic shows a general representation of a logic module:
Fig. 11-1: General representation of a logic module
Extent and application
You can use the logic modules to carry out additional functions for your
application. These can be used, for example, to implement logical
operations, time relay functions and counter functions. Depending on the
device series, the system provides several logic modules:
Truth tables 3 inputs/1 output
Truth tables 2 inputs/1 output
Truth tables 5 inputs/2 outputs
Timer
Counter
Signal conditioners
Non-volatile elements
Flashing
Flickering
Limit Monitor
Calculation modules (Calculator)*
Table 11-1: Freely-programmable logic modules
*) Only for basic unit 2 for version *E03* onwards
11-2
Plug 1
Logic module
(Logic component)
Plug n
Setting value
Logic module
Socket 1 - n
SIMOCODE
pro C
BU1
Number
3
—
—
2
2
2
2
3
3
—
—
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
pro V
BU2
Number
6
2
1
4
4
4
4
3
3
4
2
