11.7

Signal conditioner

Description
If an input signal is pending, the signal conditioner can issue an output
signal according to the chosen signal conditioner type:
• Non-inverting
• Inverting
• Edge rising with memory
• Edge falling with memory.
You can set the output response.
The signal conditioner consists of:
• Two plugs (input and reset)
• One logic component
• One socket.
Overall, the following are available:
– Two signal conditioners for BU1 (signal conditioners 1 to 2)
– Four signal conditioners for BU2 (signal conditioners 1 to 4).
Schematic

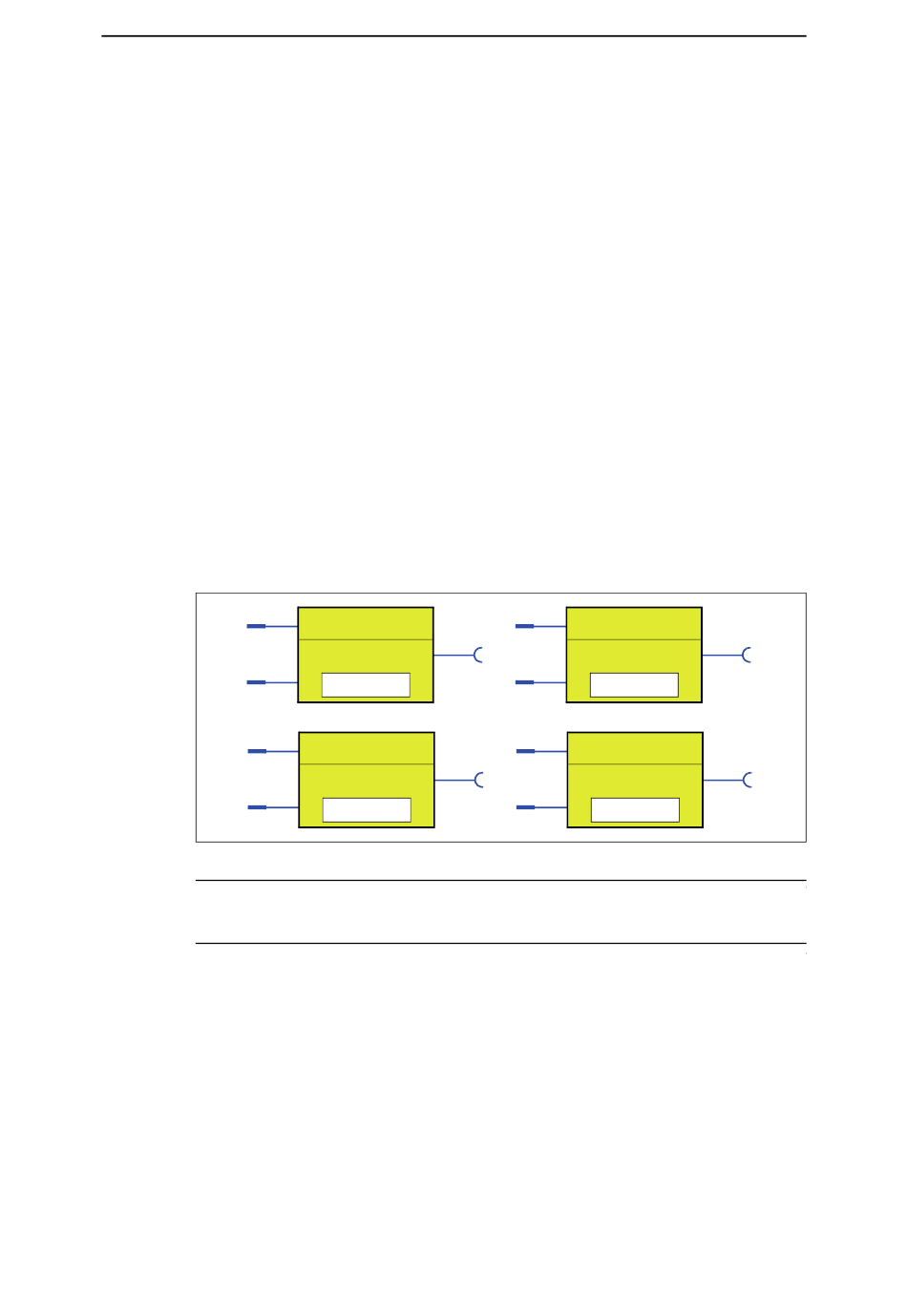

The following schematic shows the "Signal Conditioner" logic modules:
Input
Reset
Input
Reset
Fig. 11-12: "Signal Conditioner" logic modules
Note
The output is always 0 if a reset is pending.
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
Signal Conditioner 1
Output
Type
Signal Conditioner 3
Output
Type
Input
Signal Conditioner 2
Reset
Type
Input
Signal Conditioner 4
Reset
Type
Logic modules
Output
Output
11-15
