Mounting, wiring, interfaces
Earth-fault module pin assignment

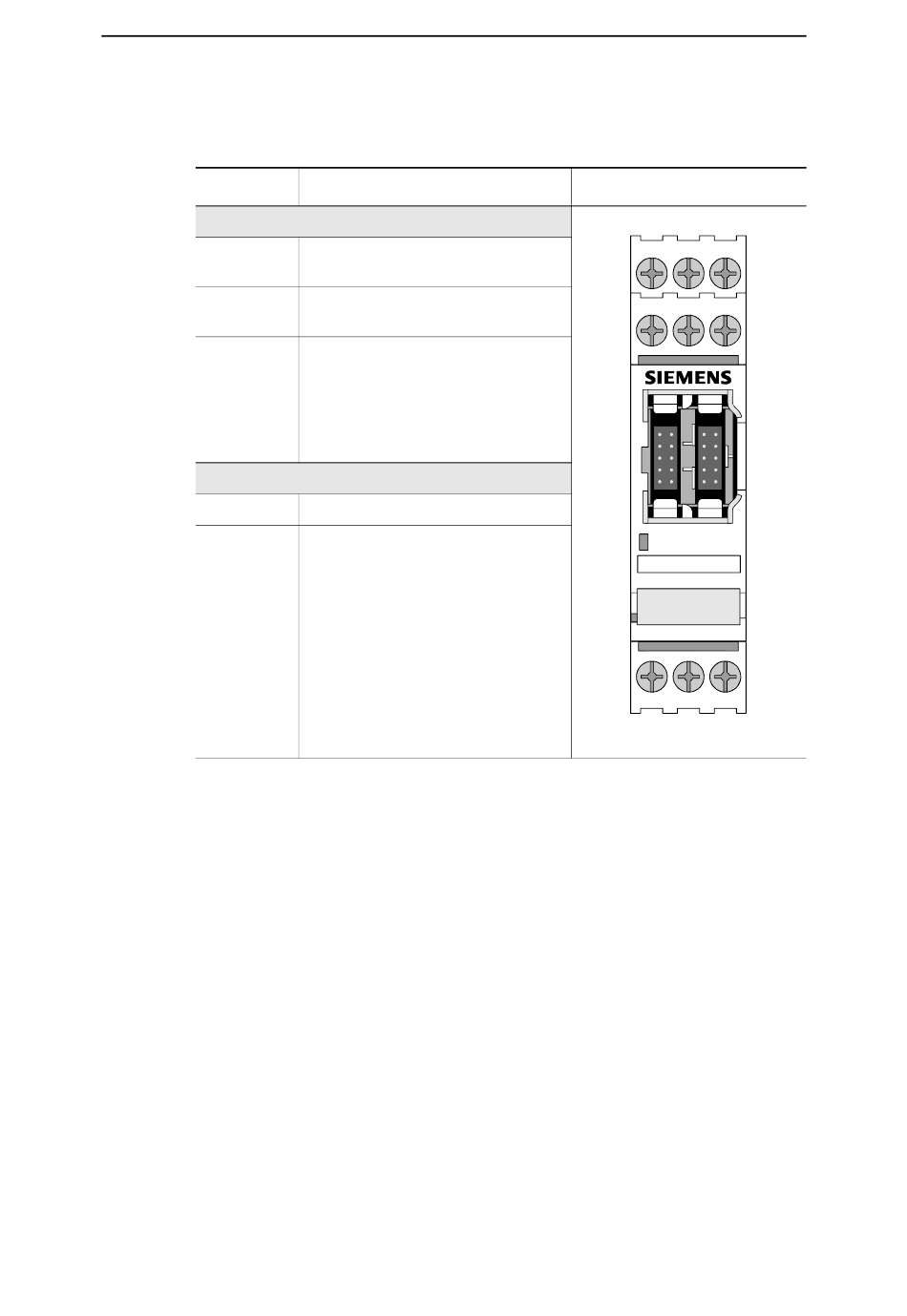

The following table shows the pin assignment of the removable terminals:
Connection
Upper terminals
40
43
Lower terminals
PE
Table 13-7: Pin assignment of the removable terminals of the earth fault module
13-18
Assignment
Input C1 summation current
transformer
Input C2 summation current
transformer
System shielding
40
C1
43
C2
READY
EM
3UF7 500–1AA00–0
G/YYMMDD
Exx
*
*
PE
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
