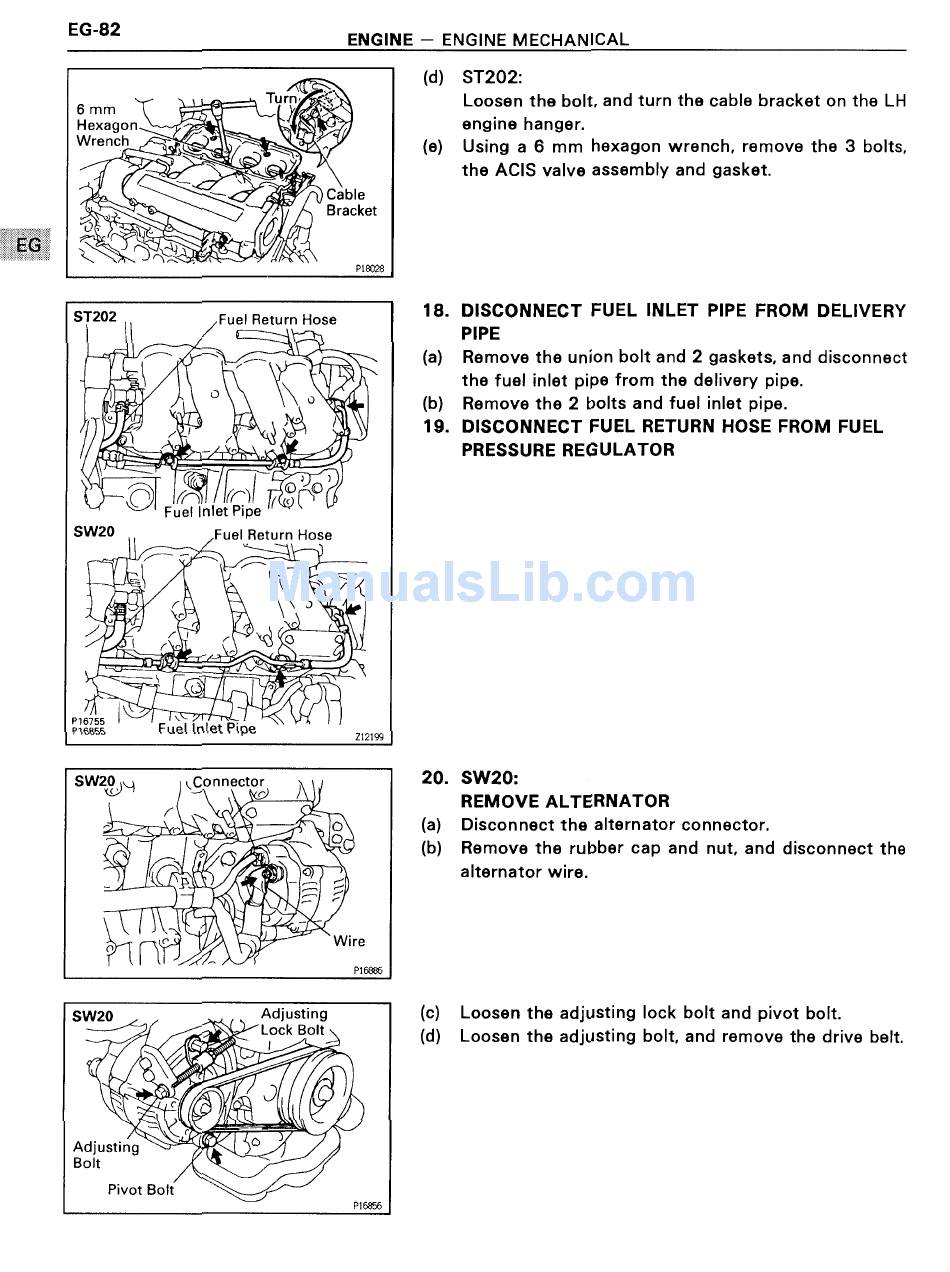

Toyota 3S-GE Repair Manual page 96

EG 82 ENGINE — ENGINE MECHANICAL
Z $2! ill I' {Tl
ST202 Fuel Return Hose
m gm'
- 'I
m'v'L LII"! I
a
Q /m lr il ,@(\@
Fuel Inlet P|pe
2° Fuel Return Hose
'fig 4 \;gf;
-{J 1/ -
[I
I
I
(1 bl:
2 ' 5*
$i ) @_4§»
31>
2 I Fuel ln
SW29 (Connector
Min'. F QT
n U
H f gym
W20 Adjusting
kind
vii Q
e'
S
ST202:
Loosen the bolt, and turn the cable bracket on the LH
engine hanger.
Using a 6 mm hexagon wrench, remove the 3 bolts,
the ACIS valve assembly and gasket.
DISCONNECT FUEL INLET PIPE FROM DELIVERY
PIPE
Remove the union bolt and 2 gaskets, and disconnect
the fuel inlet pipe from the delivery pipe.
Remove the 2 bolts and fuel inlet pipe.
DISCONNECT FUEL RETURN HOSE FROM FUEL
PRESSURE REGULATOR
SW20:
REMOVE ALTERNATOR
Disconnect the alternator connector.
Remove the rubber cap and nut, and disconnect the
alternator wire.
Loosen the adjusting lock bolt and pivot bolt.
Loosen the adjusting bolt, and remove the drive belt.
