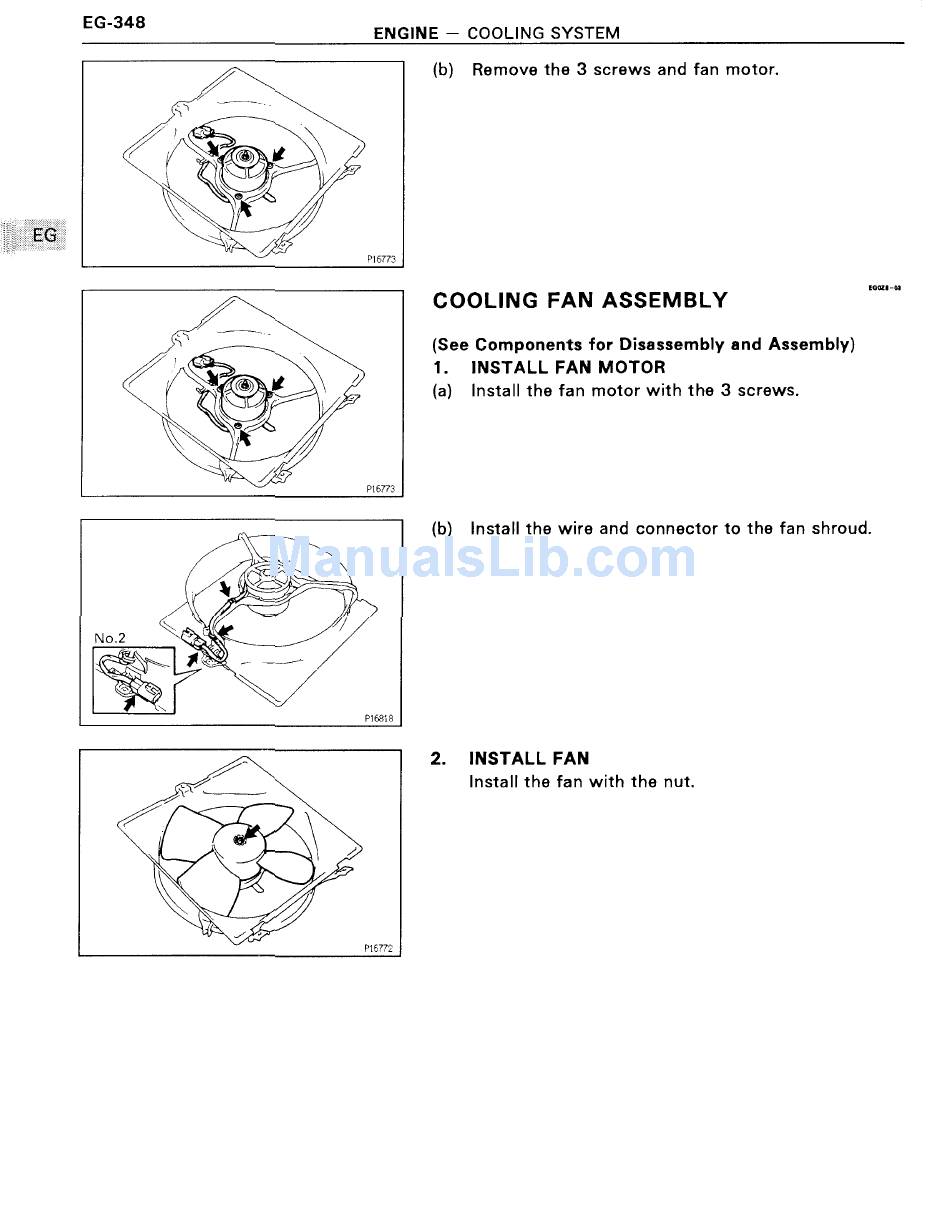

EG-348
ENGINE — COOLING SYSTEM
v
5
\
\ /
\\
Pl6773
a*
"
\
\ /
\\
P16773
N02
'1' "/
P16772
(b)
Remove the 3 screws and fan motor.
COOLING FAN ASSEMBLY
(See Components for Disassembly and Assembly)
1.
INSTALL FAN MOTOR
(a)
lnstall the fan motor with the 3 screws.
(b)
lnstall the wire and connector to thefan shroud
Pl68I8
- I
2.
INSTALL FAN
lnstall the fan with the nut.
/.)//
\
\ /G
