Toyota 3S-GE Repair Manual page 162

E6448 ENGINE — ENGINE MECHANICAL _
(I
-i
37' ?
Q
EM7362
SST
»~/
/$1'
s"i!/
I',
'/4 'Q
_.
~1\ . 1'7
5%»
EM7457
II
l
I
. ~»:/66" \ C
5/ \'
I i
\' /'4 _
\_\ //1
'6\::-_=;Ef/
C ut Posltio n
4* 0-
'\<." 0
\
I8
P16913
\ C
/ H »
/\
/-€
Q
0
\ >
l(
/ gum SST
. s , » -J.
D ~ &/.~
v\ <.
. \ Lg
Q
P16914
2.
A.
(8)
(b)
(C)
B.
la)
(b)
(C)
(d)

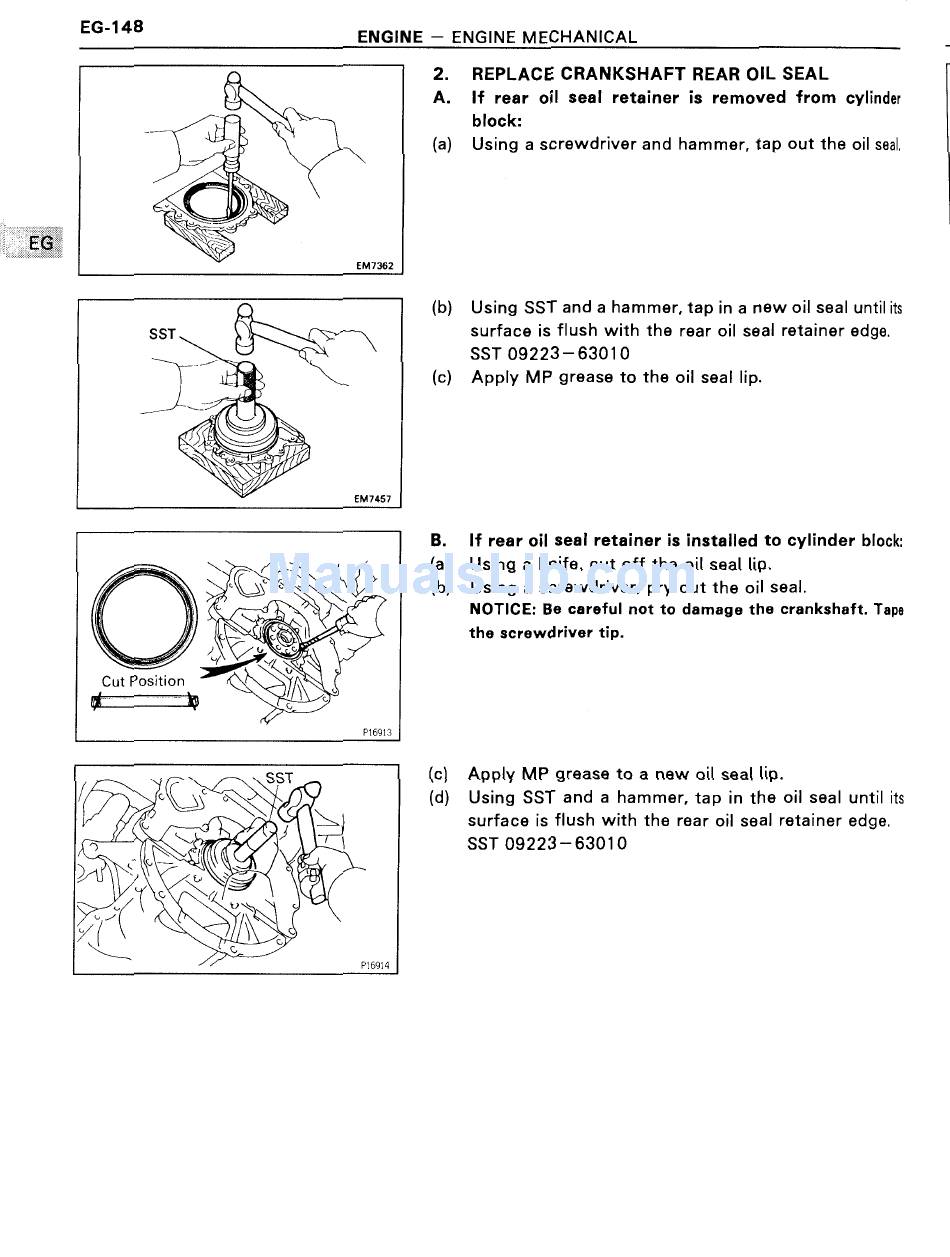

REPLACE CRANKSHAFT REAR OIL SEAL
If rear oil seal retainer is removed from cylinder
block:
Using a screwdriver and hammer, tap out the oil seal.
Using SST and a hammer, tap in a new oil seal until its
surface is flush with the rear oil seal retainer edge.
SST 09223-63010
Apply MP grease to the oil seal lip.
If rear oil seal retainer is installed to cylinder block:
Using a knife, cut off the oil seal lip.
Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the crankshaft. Tape
the screwdriver tip.
Apply MP grease to a new oil seal lip.
Using SST and a hammer, tap in the oil seal until its
surface is flush with the rear oil seal retainer edge.
SST 09223-63010
