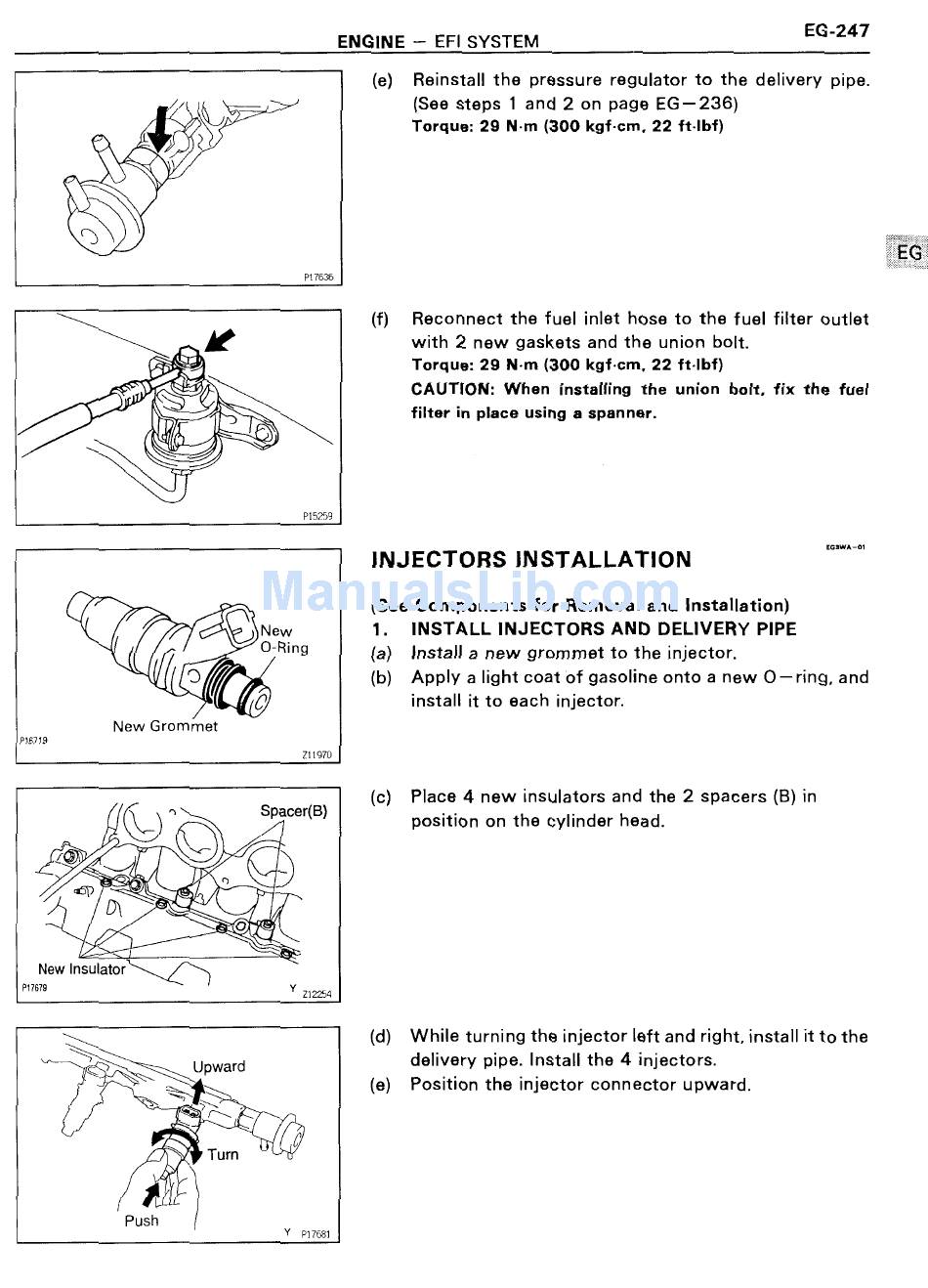

ENGINE — EFI SYSTEM EG'247
I)
(e) Reinstall the pressure regulator to the delivery pipe.
(See steps 1 and 2 on page EG-236)
Torque: 29 N-m (300 kgf-cm. 22 ft-Ibf)
P1766
' * 7 /
TI
K
\
Z5
(f) Reconnect the fuel inlet hose to the fuel filter outlet
with 2 new gaskets and the union bolt.
Torque: 29 N-m (300 kgf-cm. 22 ft-Ibf)
CAUTION: When installing the union bolt, fix the fuel
filter in place using a spanner.
P15259
P16719
INJECTORS INSTALLATION
" » (See Components for Removal and Installation)
/Q New 1. INSTALL INJECTORS AND DELIVERY PIPE
(I O'Ri"9 (a) lnstall a new grommet to the injector.
(b) Apply a light coat of gasoline onto a new O—ring. and
install it to each injector.
New Grommet
Zl1970
P17679
/Q?
- )
New Insulator
\
e/='
\@
W
7/ S'
B (G) Place 4 new insulators and the 2 spacers (B) in
Space" I position on the cylinder head.
*2' \.
6
Y Zi22541
F
,,\
' § "%m@i
y
Push
Y P171381
Turn
(d) While turning the injector left and right, install it to the
\ Upward delivery pipe. lnstall the 4 injectors.
I (e) Position the injector connector upward.
"I
9/?
