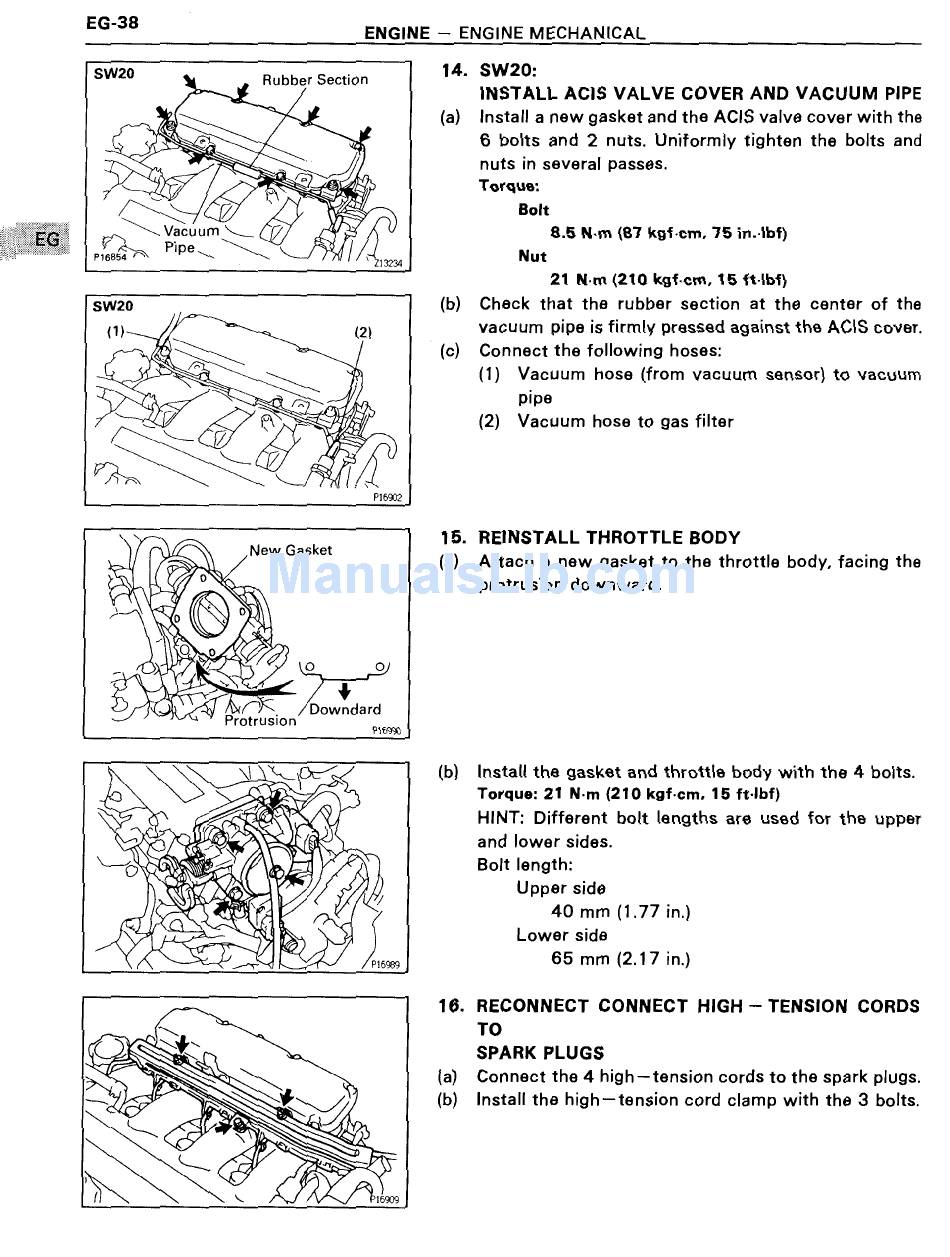

EG-38
ENGINE — ENGINE MECHANICAL
SW20
Q 7
Rubber Section
i
-* v». . .
3% **
*1
@254 '
' ~ ' . \\§;"'
\
31/
w
7 Vacuu
P'Pe\
//
r
' 213234
swzo _
(1) r ~ (2)
W
$3' R
§': )
[% //A /
\_
P159112
' Q' '. New Gasket
4f/)1",
, N ; F
J 1 \ /'K Dowtdard
Protrusion
P115990
, 6 / g s»
0 '
" /
A
f I
A V
'
SW20:
INSTALL ACIS VALVE COVER AND VACUUM PIPE
Install a new gasket and the ACIS valve cover with the
6 bolts and 2 nuts. Uniformly tighten the bolts and
nuts in several passes.
Torque:
Bolt
8.5 N-m (87 kgf-cm, 75 in.-lbf)
Nut
21 N-m (210 kgf-cm, 15 ft-lbf)
Check that the rubber section at the center of the
vacuum pipe is firmly pressed against the ACIS cover.
Connect the following hoses:
(1) Vacuum hose (from vacuum sensor) to vacuum
pipe
(2) Vacuum hose to gas filter
REINSTALL THROTTLE BODY
Attach a new gasket to the throttle body, facing the
protrusion downward.
Install the gasket and throttle body with the 4 bolts.
Torque: 21 N-m (210 kgf-cm. 15 ft-lbf)
HINT: Different bolt lengths are used for the upper
and lower sides.
Bolt length:
Upper side
40 mm (1.77 in.)
Lower side
65 mm (2.17 in.)
RECONNECT CONNECT HIGH — TENSION CORDS
TO
SPARK PLUGS
Connect the 4 high—tension cords to the spark plugs.
Install the high—tension cord clamp with the 3 bolts.
