ENGINE - EFI SYSTEM E6451
%/33,
¢\¢
' I
'4
Y P17632

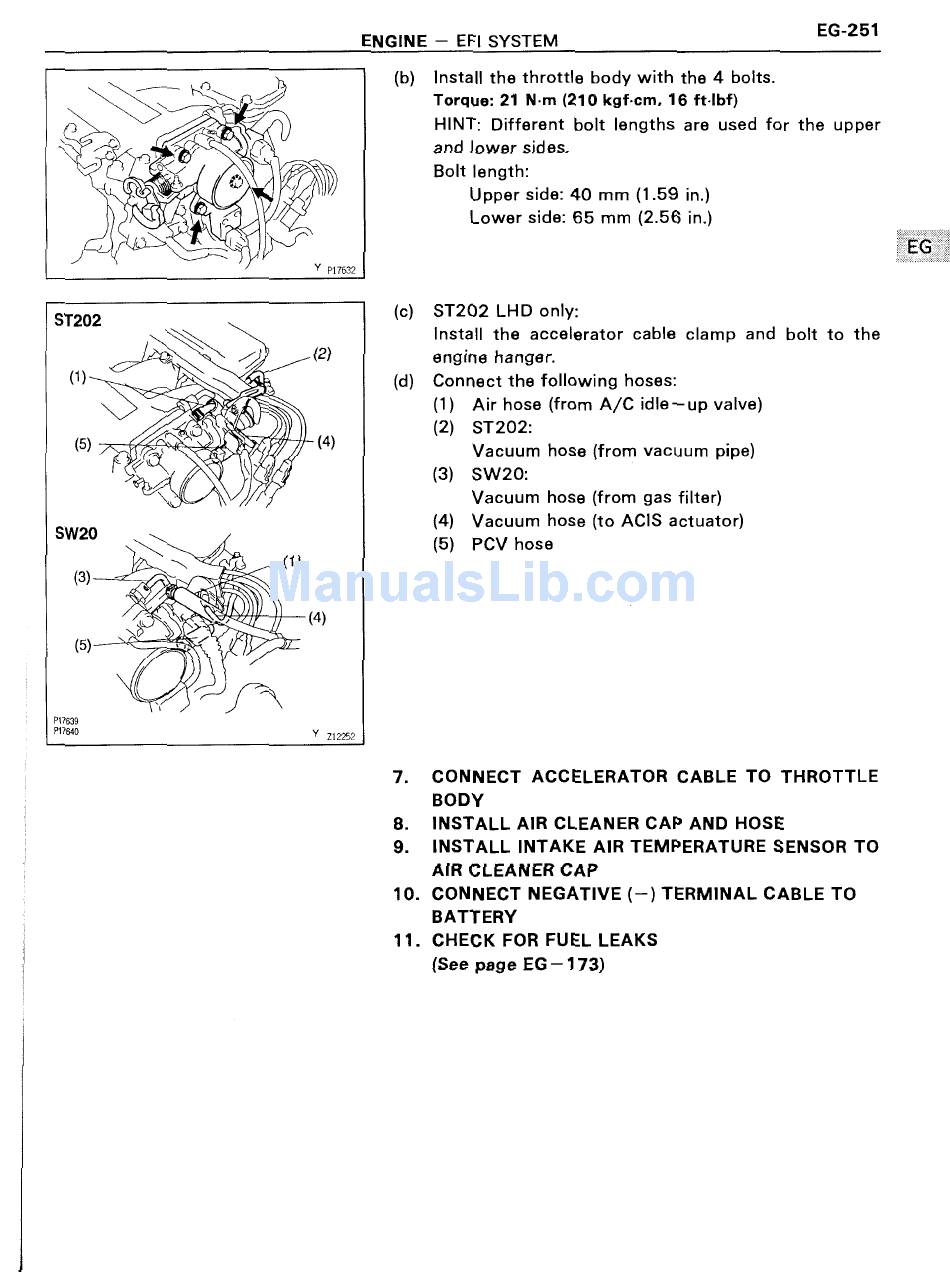

(b) lnstall the throttle body with the 4 bolts.
Torque: 21 N-m (210 kgf-cm. 16 ft-Ibf)
HINT: Different bolt lengths are used for the upper
and lower sides.
Bolt length:
Upper side: 40 mm (1.59 in.)
Lower side: 65 mm (2.56 in.)
ST202 \
I (2)
(1) .9.
',2
~ '<1:-'yfi
@\ (3)
SW20
\ (1)
n U)»
ts) (4)
(5) > _,, '4)
P171539 fa
Pl7640 Y 212252
(c) ST202 LHD only:
lnstall the accelerator cable clamp and bolt to the
engine hanger.
(d) Connect the following hoses:
Air hose (from A/C idle-up valve)
ST202:
Vacuum hose (from vacuum pipe)
SW20:
Vacuum hose (from gas filter)
Vacuum hose (to ACIS actuator)
PCV hose
(1)
(2)
(4)
(5)
7. CONNECT ACCELERATOR CABLE TO THROTTLE
BODY
8. INSTALL AIR CLEANER CAP AND HOSE
9. INSTALL INTAKE AIR TEMPERATURE SENSOR TO
AIR CLEANER CAP
10. CONNECT NEGATIVE (-) TERMINAL CABLE TO
BATTERY
11. CHECK FOR FUEL LEAKS
(See page EG—173)
