ST-8 STARTING SYSTEM — STARTER
. » (Q
\
622/
P13718
so-"
WY},
/ /
6%
ST (CI
P135223
:\\\\ ".
Q
W/ / / ~
S
fix
5' 1 'aw
I
PI3466

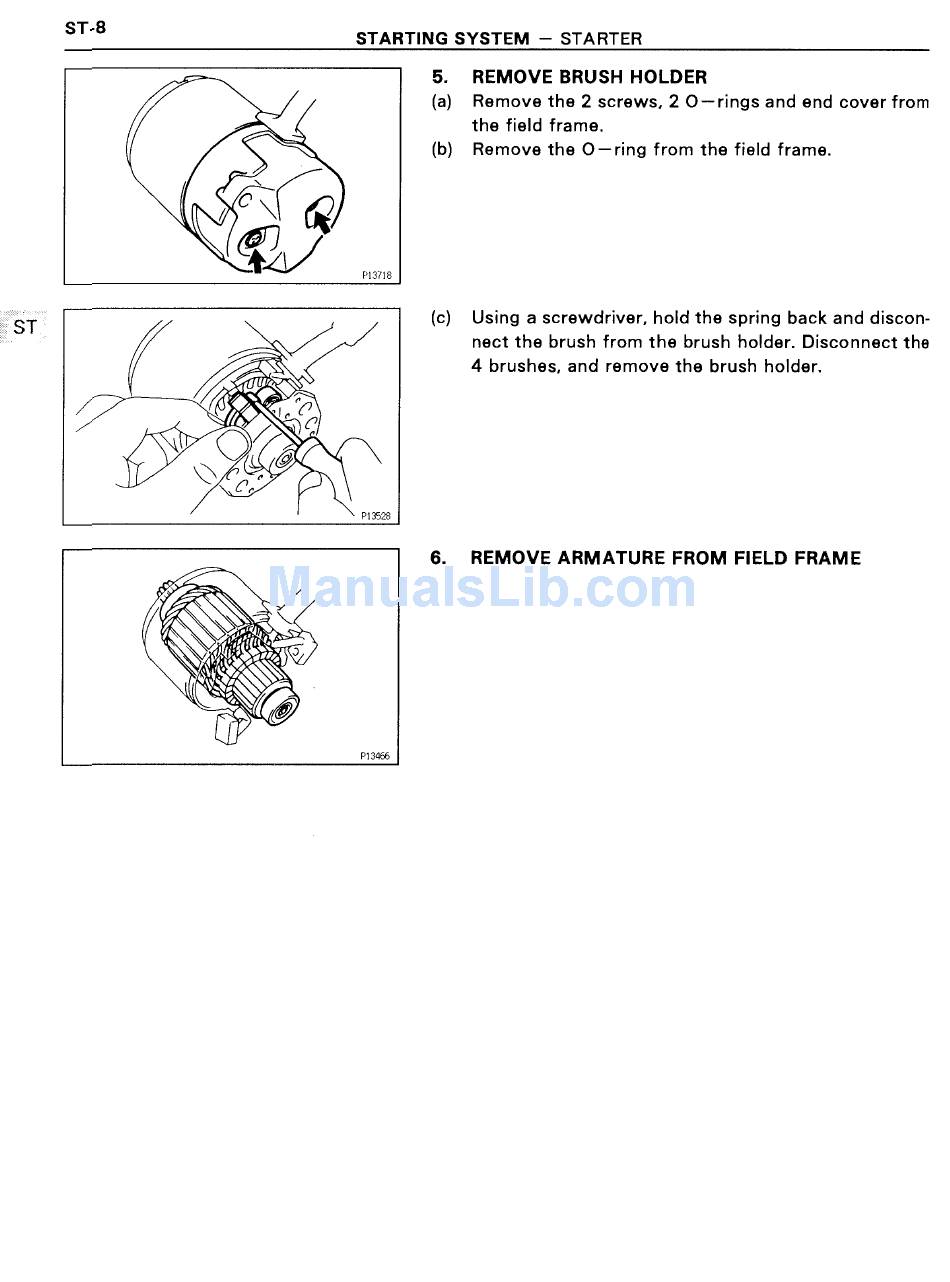

REMOVE BRUSH HOLDER
Remove the 2 screws, 2 O—rings and end cover from
the field frame.
Remove the O—ring from the field frame.
Using a screwdriver, hold the spring back and discon-
nect the brush from the brush holder. Disconnect the
4 brushes, and remove the brush holder.
6. REMOVE ARMATURE FROM FIELD FRAME
