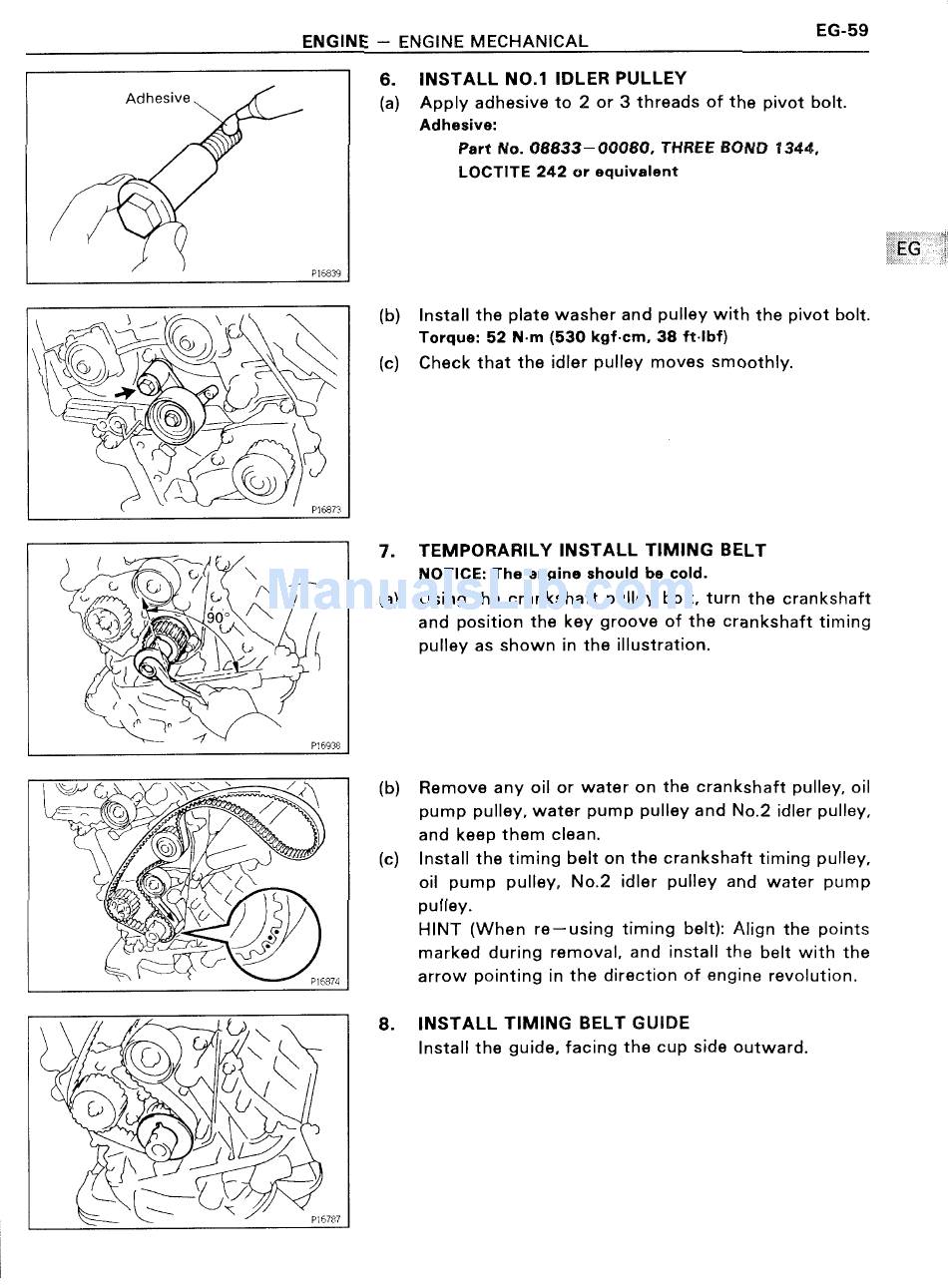

EG-59
ENGINE — ENGINE MECHANICAL _
6. INSTALL NO.1 IDLER PULLEY
Adhesive (a) Apply adhesive to 2 or 3 threads of the pivot bolt.
Pl6839
Q...)//@§
Q3 Ii3;j\'(
')0/ Q
@i
P16938
Z Z Z
£5r-112?
/cm:
Kl? 7/
7.
W19 (3)
L, - }§0C/\/\
. _ . U
w 1"/4
x '@\ a.
Q '_ \
4 ~ I
. \ I
11
- LFW
Adhesive:
Part No. 08833-00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(b) Install the plate washer and pulley with the pivot bolt.
6) _> \ Torque: 52 N-m (530 kgf-cm, 38 ft-Ibf)
\ (c) Check that the idler pulley moves smoothly.
W
_ ' )
_ _ '> /"
\
P16873
TEMPORARILY INSTALL TIMING BELT
NOTICE: The engine should begcold.
Using the crankshaft pulley bolt, turn the crankshaft
and position the key groove of the crankshaft timing
pulley as shown in the illustration.
Remove any oil or water on the crankshaft pulley, oil
pump pulley, water pump pulley and No.2 idler pulley,
and keep them clean.
Install the timing belt on the crankshaft timing pulley,
oil pump pulley, No.2 idler pulley and water pump
pulley.
HINT (When re-using timing belt): Align the points
marked during removal, and install the belt with the
arrow pointing in the direction of engine revolution.
INSTALL TIMING BELT GUIDE
Install the guide, facing the cup side outward.
