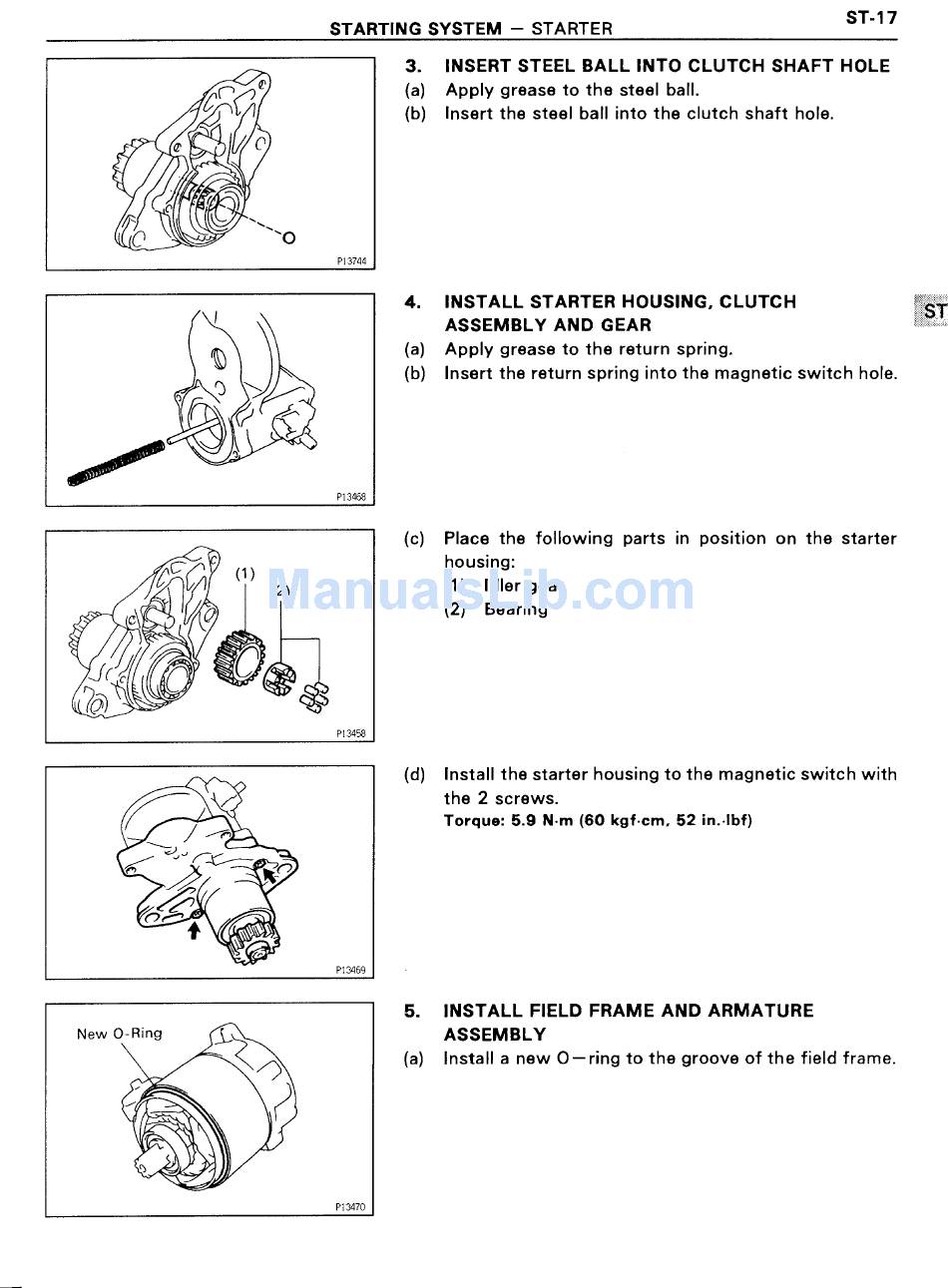

ST-17
STARTING SYSTEM — STARTER
I
/ /1 'I
O
P13744
I
'®
E "
PI3468
\__.I.'-"I
, 9 (1)
<2>
3. INSERT STEEL BALL INTO CLUTCH SHAFT HOLE
(a) Apply grease to the steel ball.
(b) Insert the steel ball into the clutch shaft hole.
4. INSTALL STARTER HOUSING. CLUTCH
ASSEMBLY AND GEAR
(a) Apply grease to the return spring.
(b) Insert the return spring into the magnetic switch hole.
(c) Place the following parts in position on the starter
housing:
(I) Idler gear
, € ' (2) Bearing
>/A \\\_
P13458
-P Q »
PI3469
\
P13470
(d) lnstall the starter housing to the magnetic switch with
the 2 screws.
Torque: 5.9 N-m (60 kgf-cm. 52 in.-Ibf)
5. INSTALL FIELD FRAME AND ARMATURE
New 0-Rifle ASSEMBLY
(a) lnstall a new O—ring to the groove of the field frame.
r
J »
(69% *
\~¢J,.
