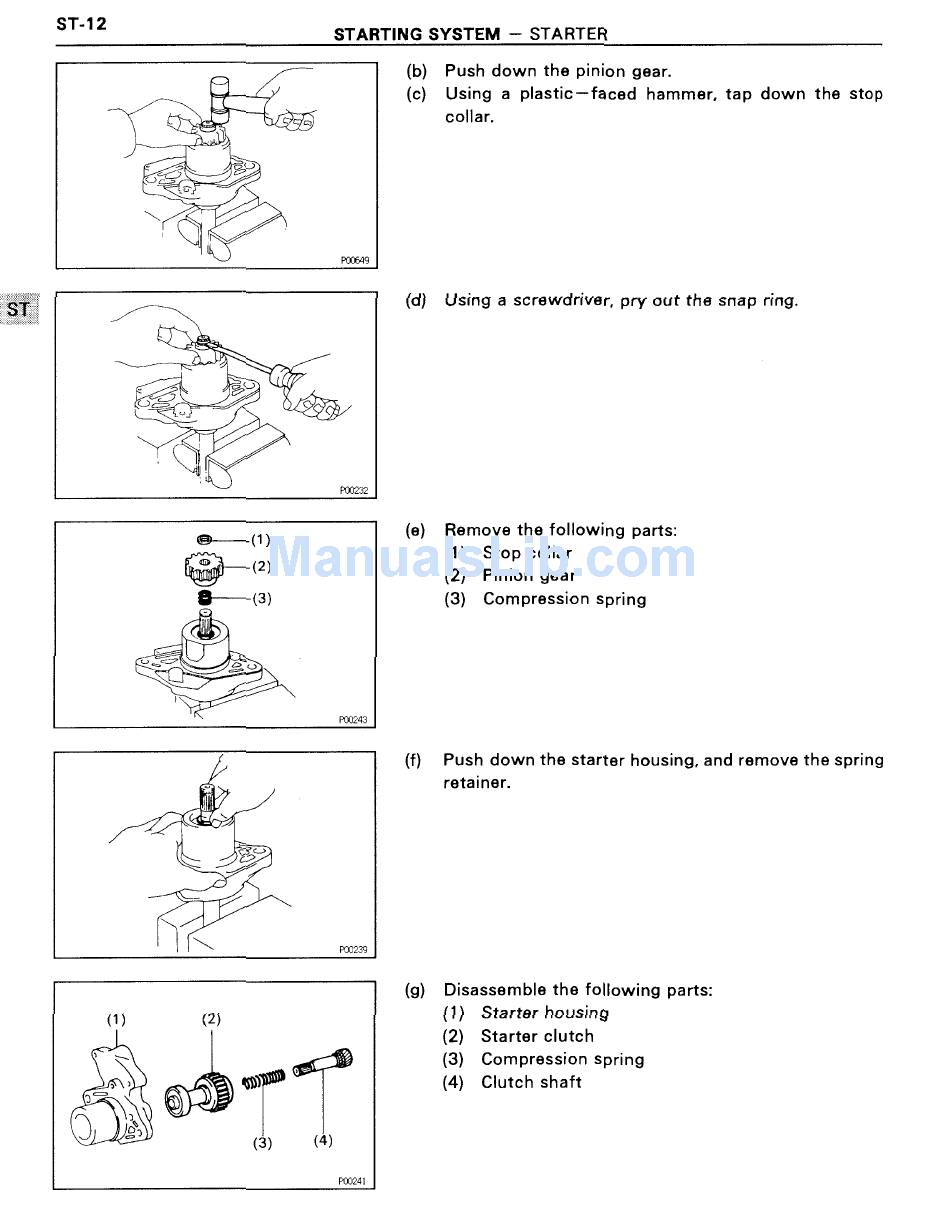

ST-12
STARTING SYSTEM —- STARTER
.
\\=,/_
PUB49
/T
5; 3-
~< ill' tr
I \'w
(Ty
05%;}?
®-——(1)
3
(
PUJ243
53
04$" -0
0
7. \
P0023?
(1) (Z)
P[D241
(b) Push down the pinion gear.
(c) Using a plastic-faced hammer, tap down the stop
collar.
(d) Using a screwdriver, pry out the snap ring.
(e) Remove the following parts:
(1) Stop collar
(2) Pinion gear
) (3) Compression spring
(f) Push down the starter housing, and remove the spring
retainer.
(g) Disassemble the following parts:
(1) Starter housing
(2) Starter clutch
' \ (3) Compression spring
. » tsmT>\" (4) Clutch shaft
3
'.I
3% (3) (4)
