Toyota 3S-GE Repair Manual page 45

*
Pin / Wjm
I
4-..
/\
%
7'5"?/lie» pie l l
Q J%;§g<
\\ W
w l
§
5
4v.
Fulcrum
SST Length P17993
\
i
.1
/E/' i
P168310
/ K ¢§%\'
_\ " ~
~ t
/\ 'Mi.
te //I7 S8 \
K_)
tn
2
R9, '
,
~Q
/
/tl
'65'?
§§_@
- \
PW995

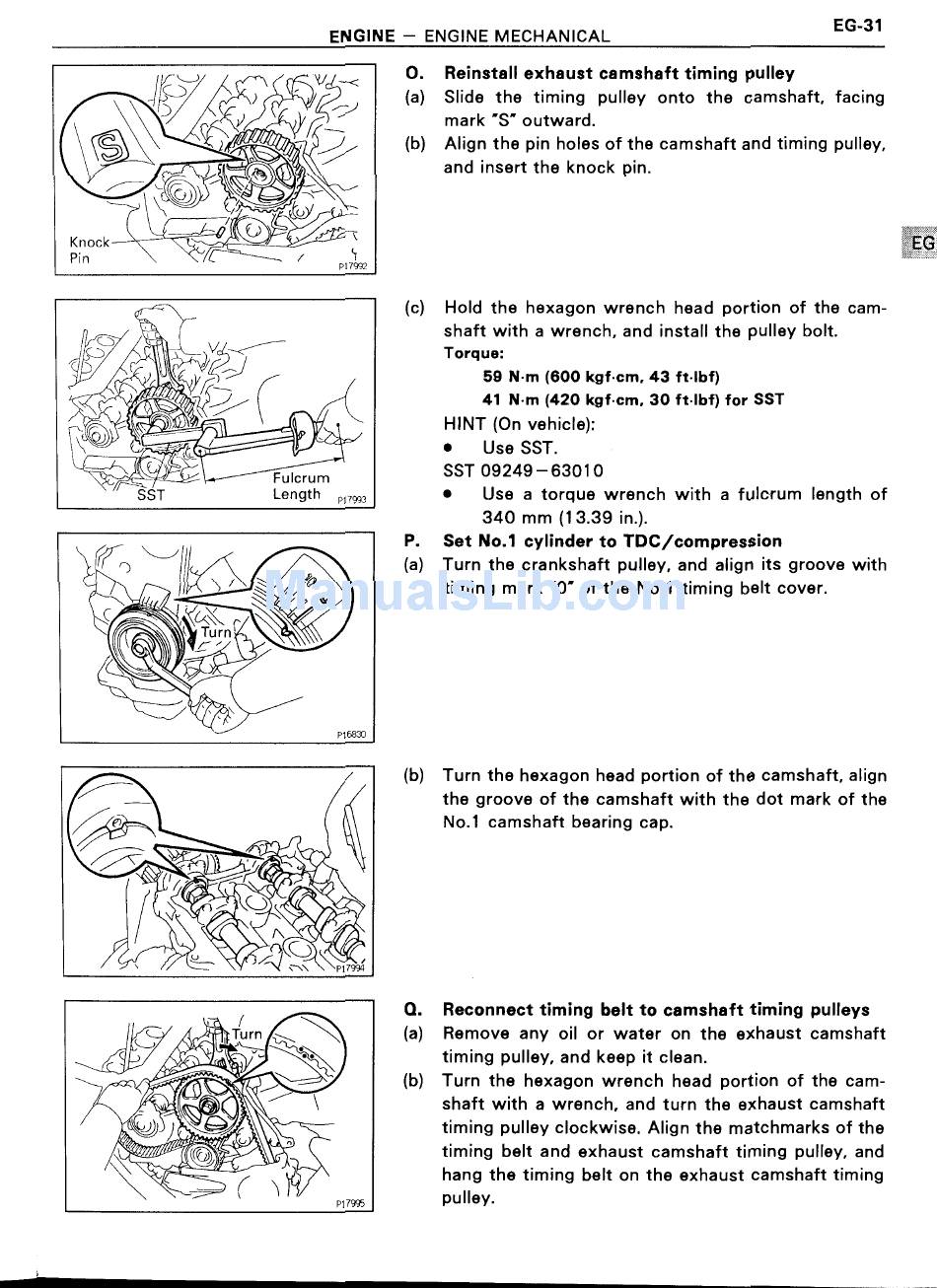

ENGINE - ENGINE MECHANICAL EG'3l
h f ' ' ll
\_) -V \< 0. Reinstall exhaust cams a t tlmlng pu ey
jg CK)" 27 (a) Slide the timing pulley onto the camshaft, facing
/t< ,-W \ mark 'S' outward.
qév , 2 (b) Align the pin holes of the camshaft and timing pulley,
»* r
and insert the knock pin.
Hold the hexagon wrench head portion of the cam-
shaft with a wrench, and install the pulley bolt.
Torque:
59 N-m (600 kgf-cm. 43 ft-lbf)
41 N-m (420 kgf~cm. 30 ft-lbf) for SST
HINT (On vehicle):
0 Use SST.
SST 09249-63010
0 Use a torque wrench with a fulcrum length of
340 mm (13.39 in.).
Set No.1 cylinder to TDC/compression
Turn the crankshaft pulley, and align its groove with
timing mark "0' of the No.1 timing belt cover.
(b) Turn the hexagon head portion of the camshaft, align
the groove of the camshaft with the dot mark of the
No.1 camshaft bearing cap.
Reconnect timing belt to camshaft timing pulleys
Remove any oil or water on the exhaust camshaft
timing pulley, and keep it clean.
Turn the hexagon wrench head portion of the cam-
shaft with a wrench, and turn the exhaust camshaft
timing pulley clockwise. Align the matchmarks of the
timing belt and exhaust camshaft timing pulley, and
hang the timing belt on the exhaust camshaft timing
pulley.
E-15155: ' , - 9-5
