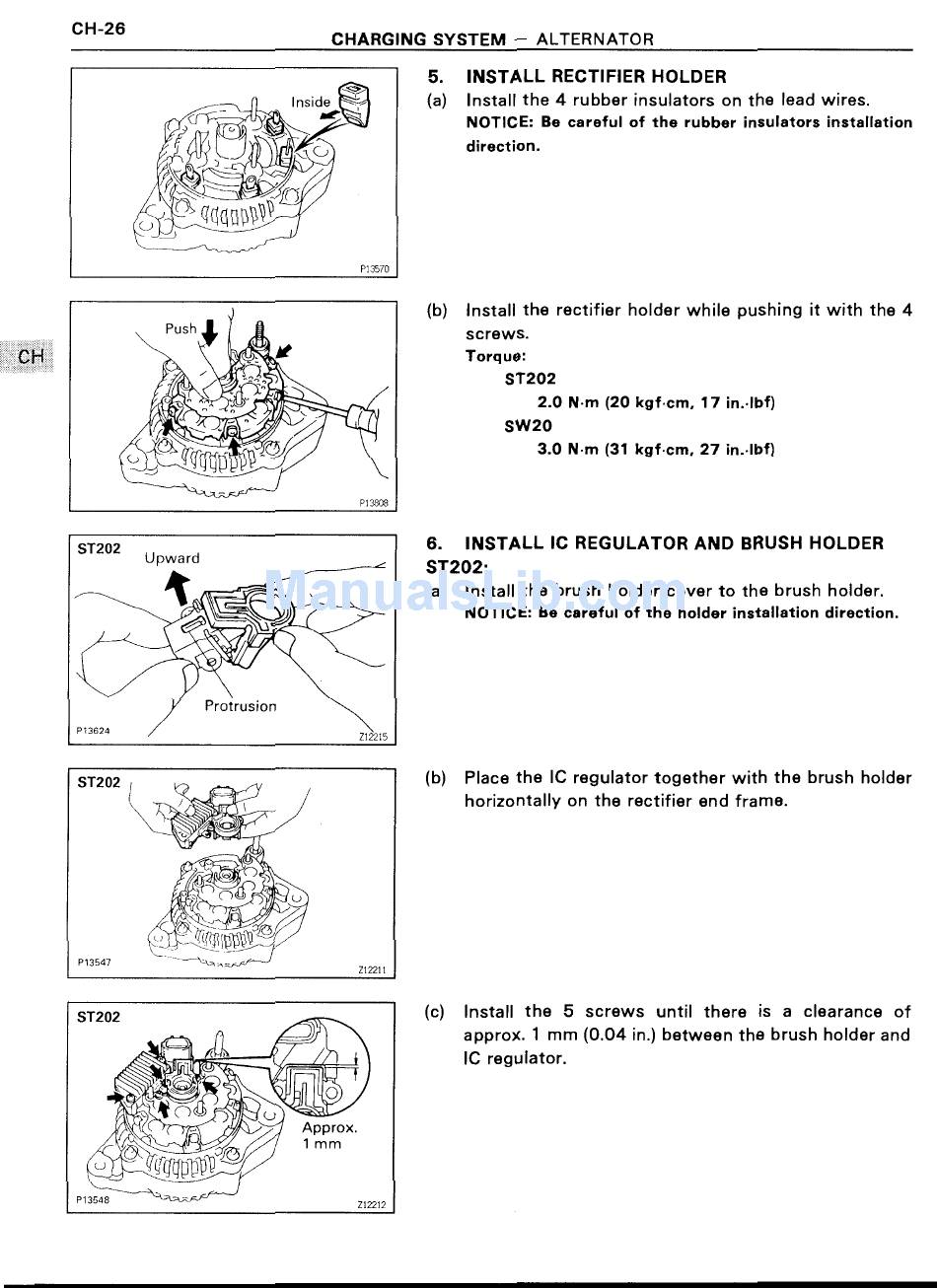

CH'26 CHARGING SYSTEM - ALTERNATOR
5. INSTALL RECTIFIER HOLDER
% (3)
_ | Inside § lnstall the 4 rubber insulators on the lead wires.
( I I \ NOTICE: Be careful of the rubber insulators installation
/ \ Q direction.
¢ FT
(T (441011)
(fa
P1357O
(b) lnstall the rectifier holder while pushing it with the 4
Push ' screws.
. ¢. T°"q"°: fit; ,(¢J i ST202
5"' $ 2.0 N-m (20 kgf-cm, 11 in.-lbf)
£0
ha' / "I swzo i
U QQQUUD. Drp K] 3.0 N-m (31 kgf-cm. 27 in.-Ibf)
P113808
isT202 6. INSTALL ic REGULATOR AND BRUSH HOLDER
UpW""d ST202:
(a) lnstall the brush holder cover to the brush holder.
V NOTICE: Be careful of the holder installation direction.
Protrusion
P13624 212215
(b) Place the IC regulator together with the brush holder
horizontally on the rectifier end frame.
ST202
i " 1§,i l i § »
Y '
\I
L) I
Pl3547 212211
(c) lnstall the 5 screws until there is a clearance of
ST202 \
- - I )' approx. 1 mm (0.04 in.) between the brush holder and
=-_ - - IC regulator.
' ( ' Z -1
- 1119
Approx.
A ' \ 1mm
Qt g
P13548 T 212212
