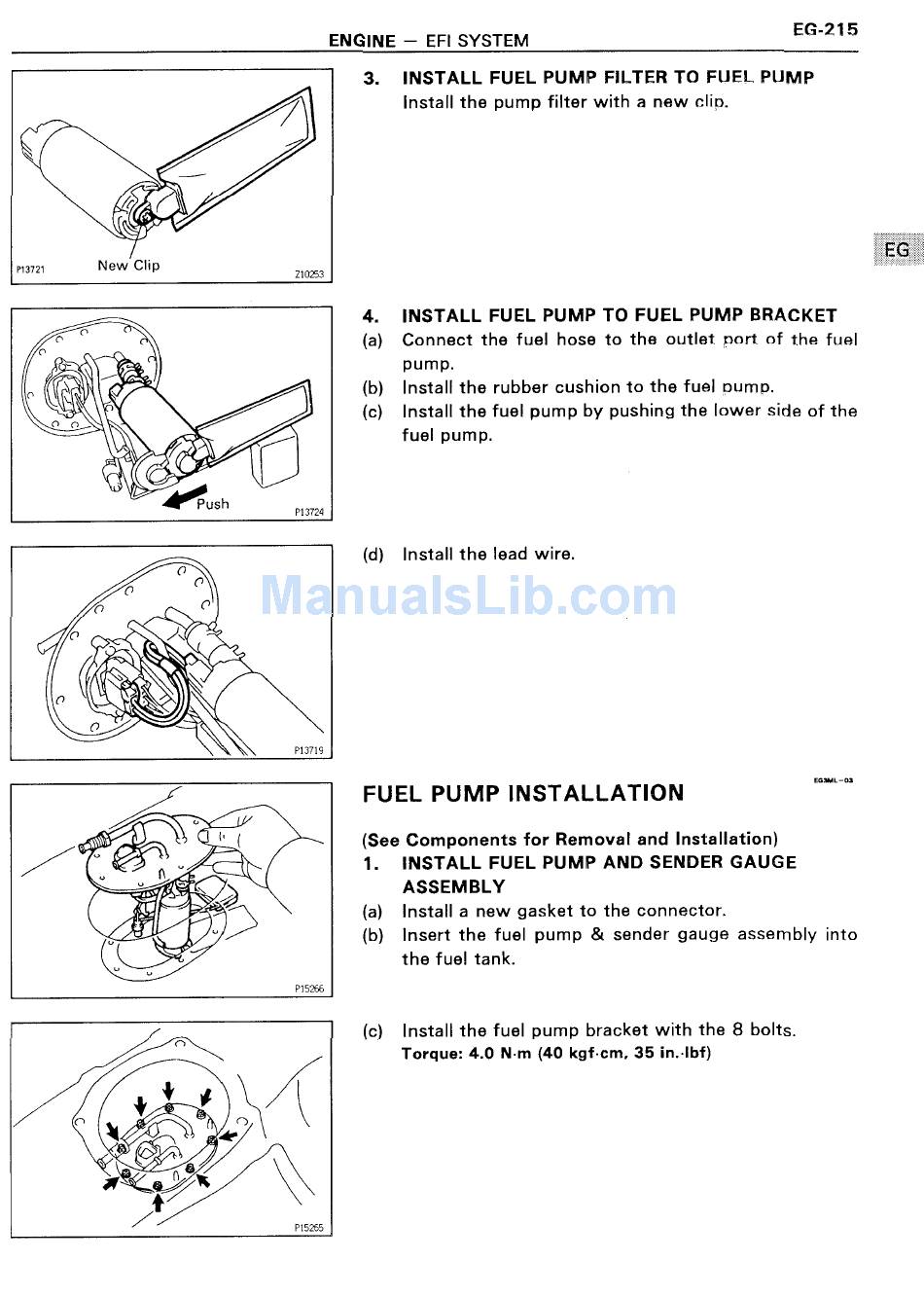

ENGINE — EFI SYSTEM EG'2I5
'
P13721 New Clip
Z10253
3. INSTALL FUEL PUMP FILTER T0 FUEL PUMP
Install the pump filter with a new clip.
}'$\'
SK (Y i i
Pl3724
INSTALL FUEL PUMP TO FUEL PUMP BRACKET
Connect the fuel hose to the outlet port of the fuel
pump.
lnstall the rubber cushion to the fuel pump.
Install the fuel pump by pushing the lower side of the
fuel pump.
4.
la)
lb)
(0)
\
/' Qfi
P13719
(d) lnstall the lead wire.
u
u
'ts.
IQ
\
,\\\\\t1 I
/
II";
P15266
EG£lML—0.'l
FUEL PUMP INSTALLATION
(See Components for Removal and Installation)
1. INSTALL FUEL PUMP AND SENDER GAUGE
ASSEMBLY
(a) Install a new gasket to the connector.
(b) Insert the fuel pump & sender gauge assembly into
the fuel tank.
('3
4"
..
\4-O
~
/
P15265
(c) lnstall the fuel pump bracket with the 8 bolts.
Torque: 4.0 N-m (40 kgf-cm, 35 in.-lbf)
