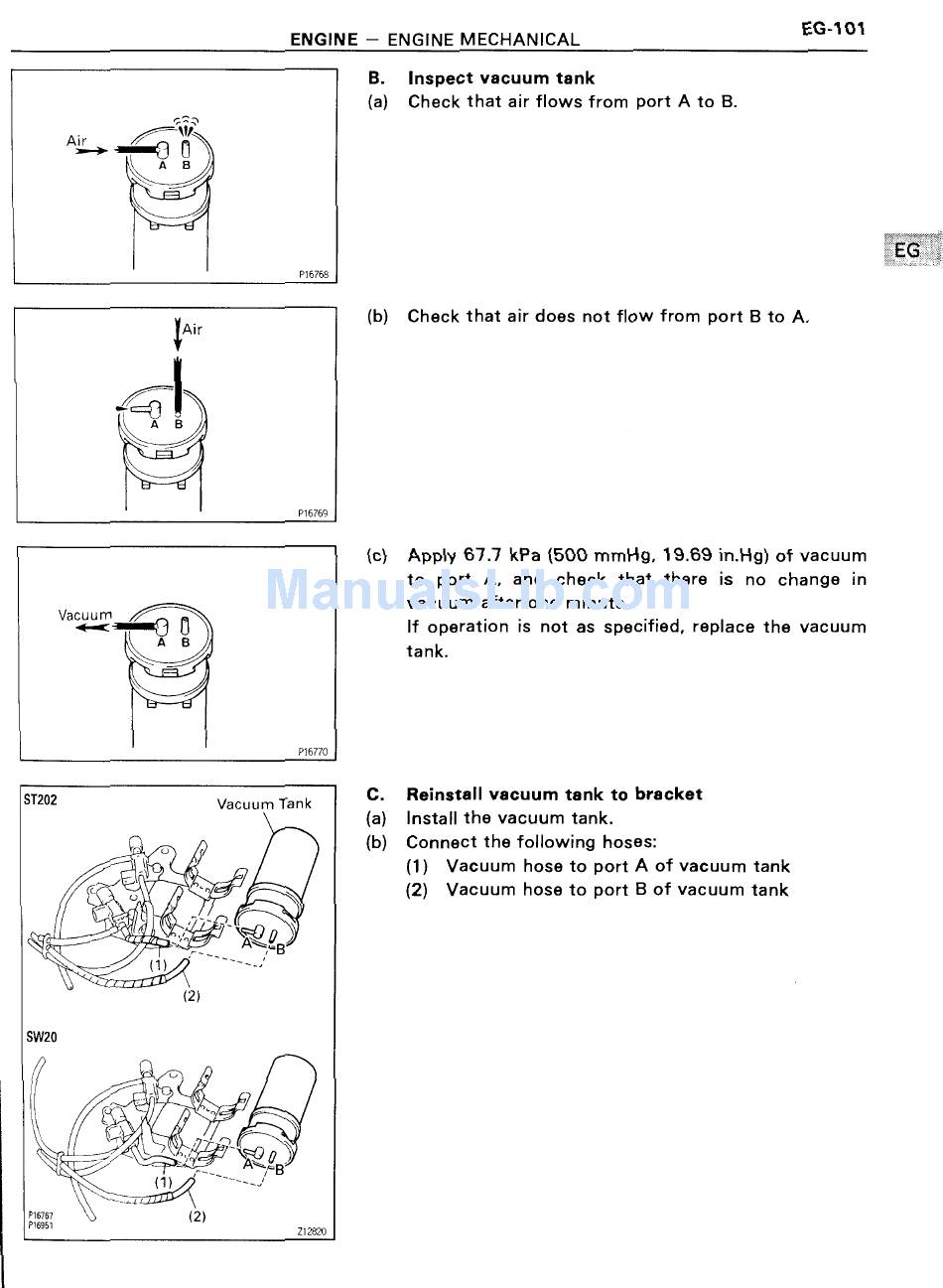

ENGINE - ENGINE MECHANICAL E6401
B. Inspect vacuum tank
(a) Check that air flows from port A to B.
»—®
P.
P16763
(b) Check that air does not flow from port B to A.
-I
C'?
P1 6769
(c) Apply 67.7 kPa (500 mmHg, 19.69 in.Hg) of vacuum
to port A, and check that there is no change in
Vacuum vacuum after one minute.
4-<11? Q If operation is not as specified, replace the vacuum
tank.
P151770
ST202 Vacuum Tank C. Reinstall vacuum tank to bracket
(a) Install the vacuum tank.
_ I (b) Connect the following hoses:
'_\. (1) Vacuum hose to port A of vacuum tank
' (2) Vacuum hose to port B of vacuum tank
' D . :~-0_f'\
\ZTQ/QB
' <2)
swzo
8 .
g
we _ .
\f.' -'/
1=1s1s1 Tl (2)
P169511 212820
