ENGINE — ENGINE MECHANICAL EG449
i\

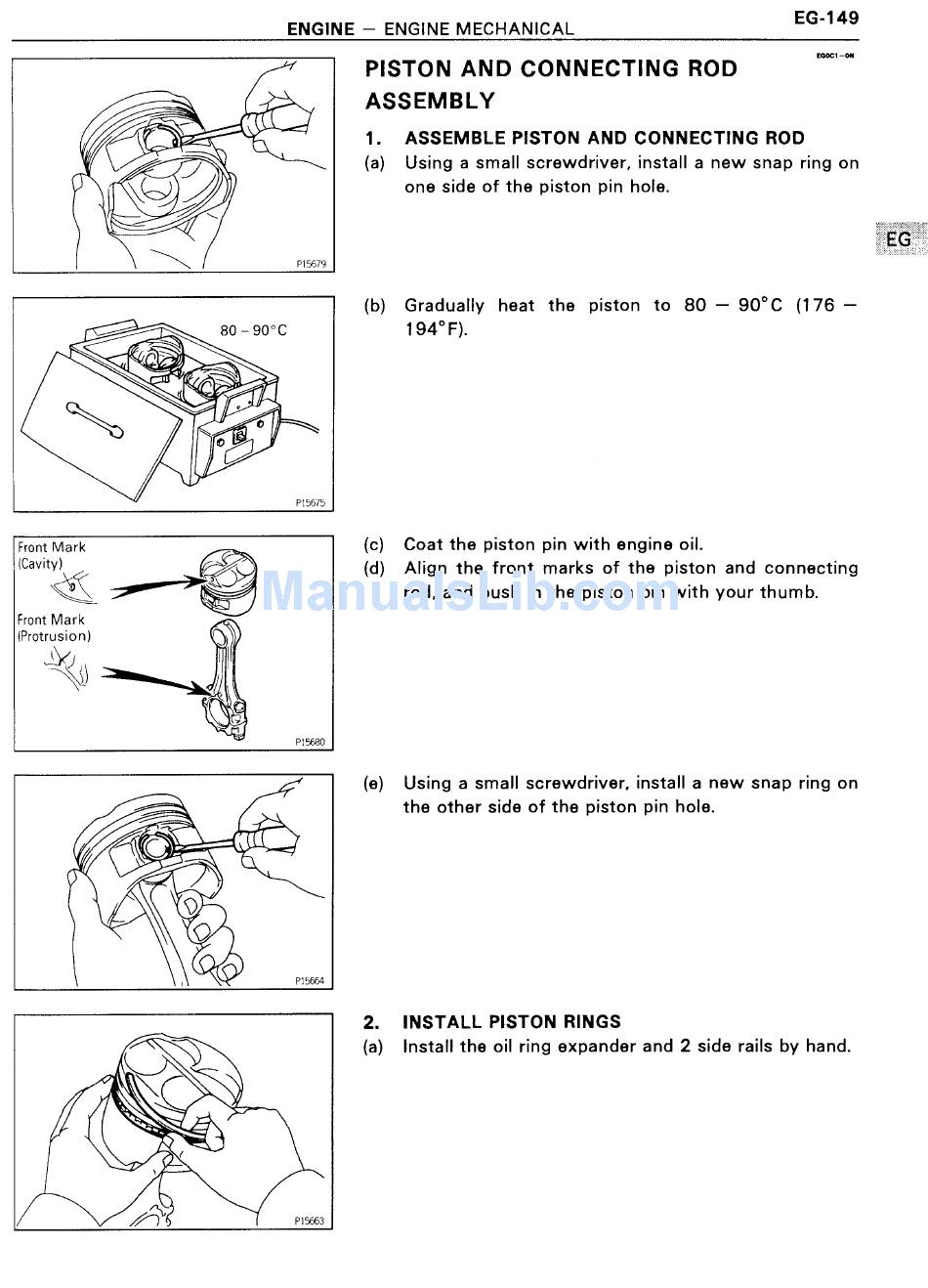

PISTON AND CONNECTING ROD ' " °°' i ° "
ASSEMBLY
1. ASSEMBLE PISTON AND CONNECTING ROD
(a) Using a small screwdriver, install a new snap ring on
one side of the piston pin hole.
Pl5679
9%'
' 'C 194» F).
(b) Gradually heat the piston to 80 — 90°C (176 —
fazcaw" V
Front Mark
J
lProtru§Lon)
Nl / if
Pl5575
(c) Coat the piston pin with engine oil.
(d) Align the front marks of the piston and connecting
rod, and push in the piston pin with your thumb.
Pl5680
<
/1
\Q ' V
,9§3@§:fl
iv
(e) Using a small screwdriver, install a new snap ring on
the other side of the piston pin hole.
~\
'\,
f) P15663
l Pl5664
2. INSTALL PISTON RINGS
(a) Install the oil ring expander and 2 side rails by hand.
/ l\ '
\ 5 -
(N S ~
, A
