EGJO4 ENGINE — ENGINE MECHANICAL
E8 '
K/ ' / ' T M
a v"
~ ea»?
\. "9 " '/U
P16695
lntake Exhaust
Painted
/"'/ B row" 'o';': 2'11:-.~\
//j\
Ll .
\-/ *"\J
Pa | med \'/
Green
EM231 2
0,'
"0 0
'0}
Z02%5
that
.41,/
' ,
, \,_, _.
4? f '
,"'
/
P16693 21,963
Upward
Painted i
Mark
EM8I'l2 T
Z1289

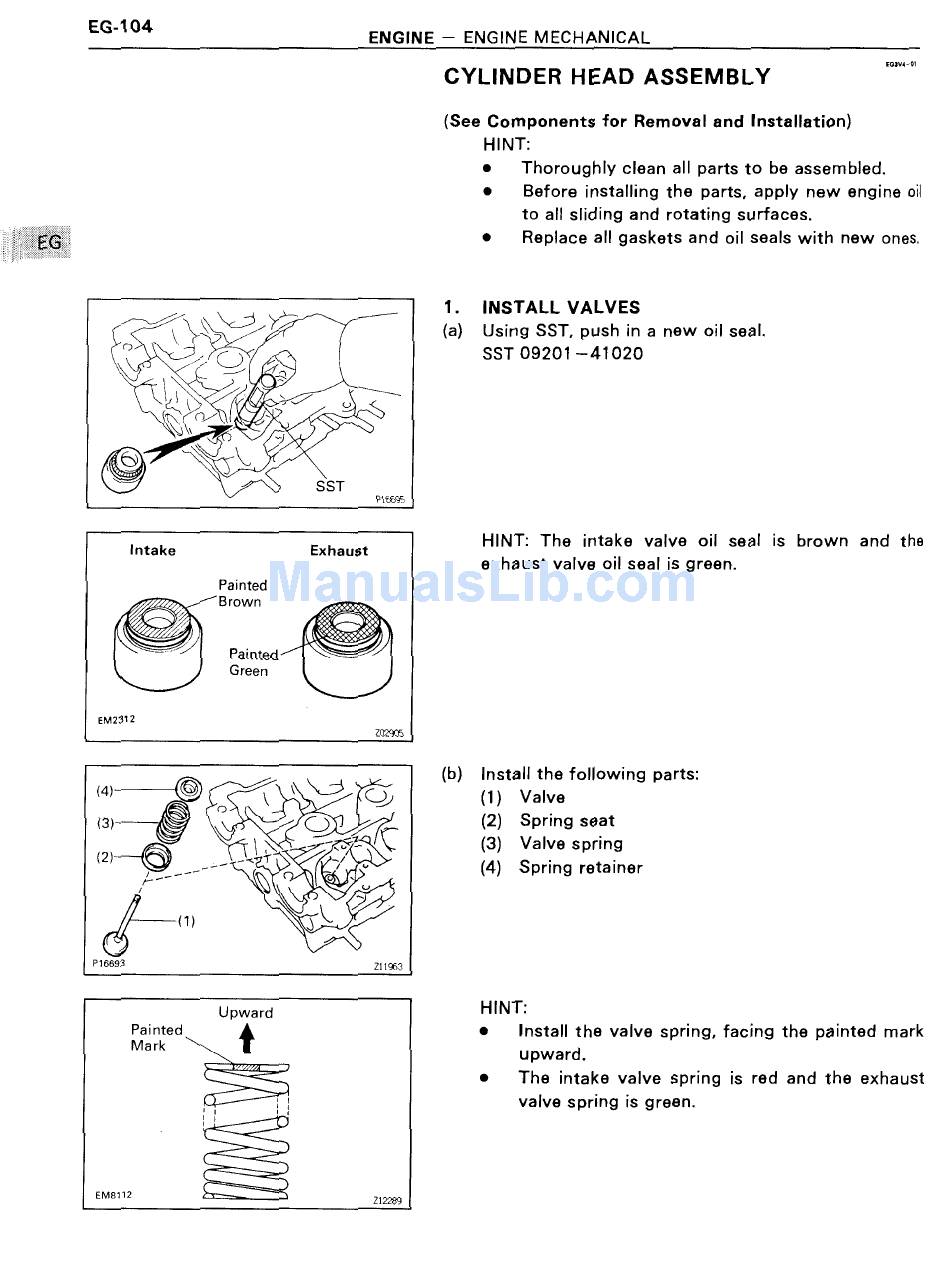

CYLINDER HEAD ASSEMBLY
(See Components for Removal and Installation)
HINT:
O Thoroughly clean all parts to be assembled.
0 Before installing the parts, apply new engine oil
to all sliding and rotating surfaces.
Replace all gaskets and oil seals with new ones.
1. INSTALL VALVES
(a) Using SST, push in a new oil seal.
SST 09201-41020
HINT: The intake valve oil seal is brown and the
exhaust valve oil seal is green.
(b) Install the following parts:
(1) Valve
(2) Spring seat
(3) Valve spring
(4) Spring retainer
HINT:
O Install the valve spring, facing the painted mark
upward.
I The intake valve spring is red and the exhaust
valve spring is green.
