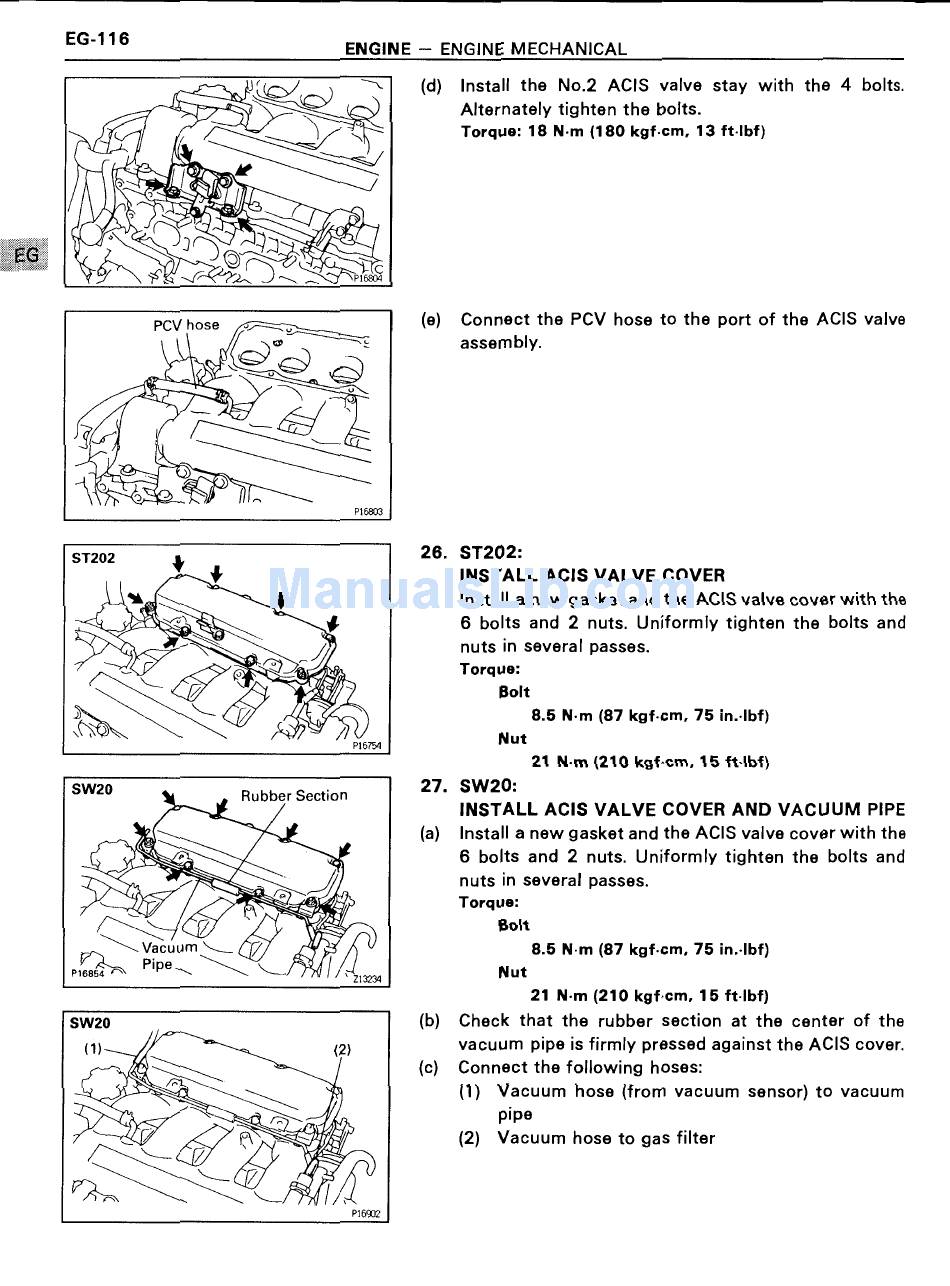

EG 116 ENGINE — ENGINE MECHANICAL
J (d) Install the No.2 ACIS valve stay with the 4 bolts.
5
Alternately tighten the bolts.
Torque: 18 N-m (180 kgf-cm, 13 ft-Ibf)
3/.2
05;; F
I I!
0% J
i-is
..f\
PCV hose U/'U (e) Connect the PCV hose to the port of the ACIS valve
J? assembly.
//ti
Ls!
'Q.
"' <
/Qy '
Q»
SW20 Rubber Section
Qkt
§
7-*
"4 '/'(
3
// £'§[/
/$22/'
J~J
\Vacuu
A Pipe\
9 I
Kg' 7,15»
/QM
@227'
ST202:
INSTALL ACIS VALVE COVER
Install a new gasket and the ACIS valve cover with the
6 bolts and 2 nuts. Uniformly tighten the bolts and
nuts in several passes.
Torque:
Bolt
8.5 N-m (87 kgf-cm. 75 in.-Ibf)
Nut
21 N-m (210 kgf-cm. 15 ft-Ibf)
SW20:
INSTALL ACIS VALVE COVER AND VACUUM PIPE
Install a new gasket and the ACIS valve cover with the
6 bolts and 2 nuts. Uniformly tighten the bolts and
nuts in several passes.
Torque:
Bolt
8.5 N-m (87 kgf-cm, 75 in.-Ibf)
Nut
21 N-m (210 kgf-cm, 15 ft-Ibf)
Check that the rubber section at the center of the
vacuum pipe is firmly pressed against the ACIS cover.
Connect the following hoses:
(1) Vacuum hose (from vacuum sensor) to vacuum
pipe
(2) Vacuum hose to gas filter
