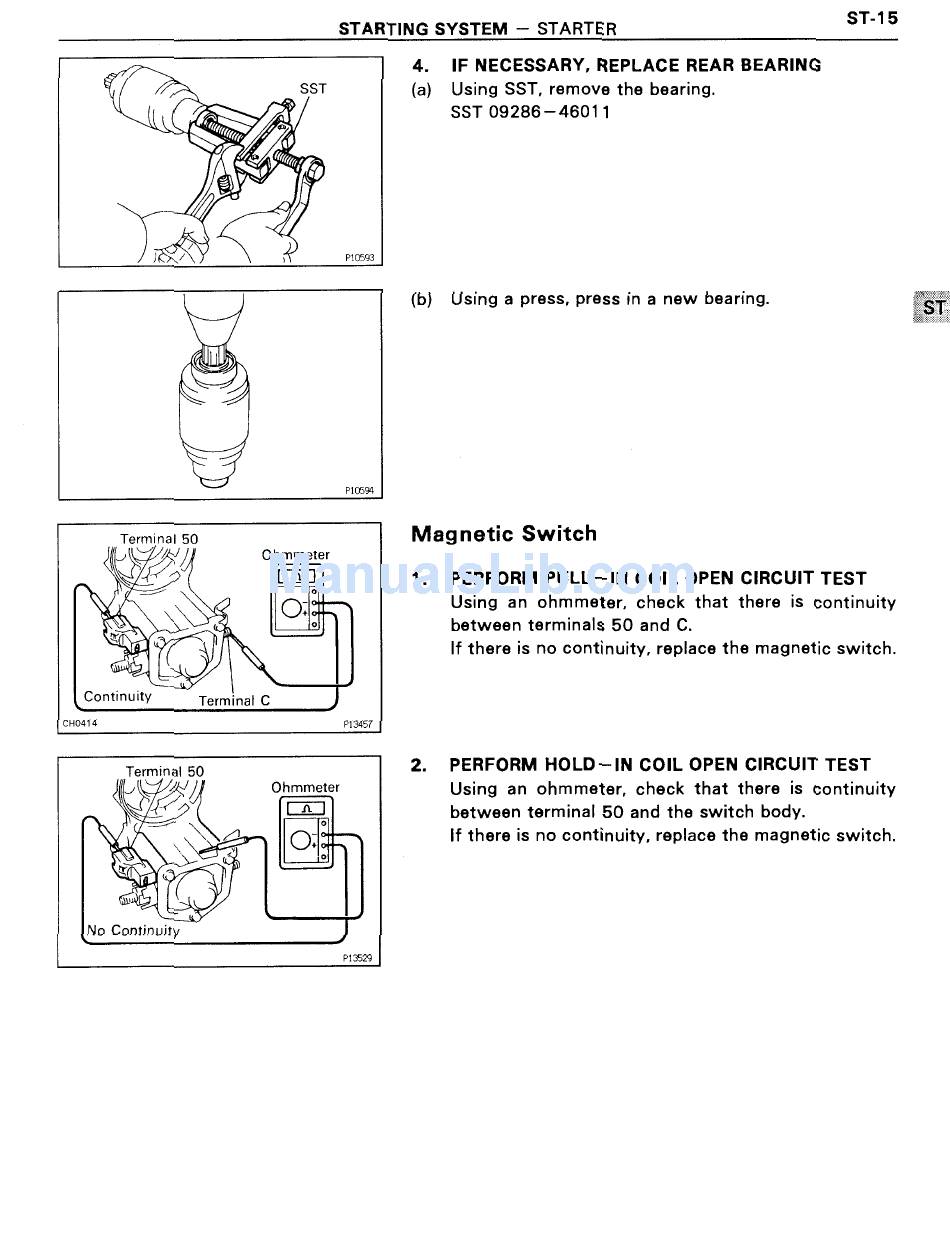

STARTING SYSTEM — STARTER
ST-15
SST
\'\ '/ / A
2&9 ' "7
/ I ' r}
I
0 'O
I / T P111593
P10594
Terminal 50
P Ohmmeter
' - 1 1 " <
SS
Mfg' \
Q1
Comlm-'IIY Terminal C
CHO414 p13457
4. IF NECESSARY. REPLACE REAR BEARING
(a) Using SST, remove the bearing.
SST 09286-46011
(b) Using a press, press in a new bearing.
Magnetic Switch
1. PERFORM PULL—lN COIL OPEN CIRCUIT TEST
Using an ohmmeter,' check that there is continuity
between terminals 50 and C.
If there is no continuity, replace the magnetic switch.
Terminal so 5 2. PERFORM HOLD—lN COIL omen CIRCUIT TEST
J Ohmmeter
/
_// o \ ,s I '
m
'Sn,
I -I
No Continuity
P1352'?
Using an ohmmeter, check that there is continuity
between terminal 50 and the switch body.
If there is no continuity, replace the magnetic switch.
