CH-12

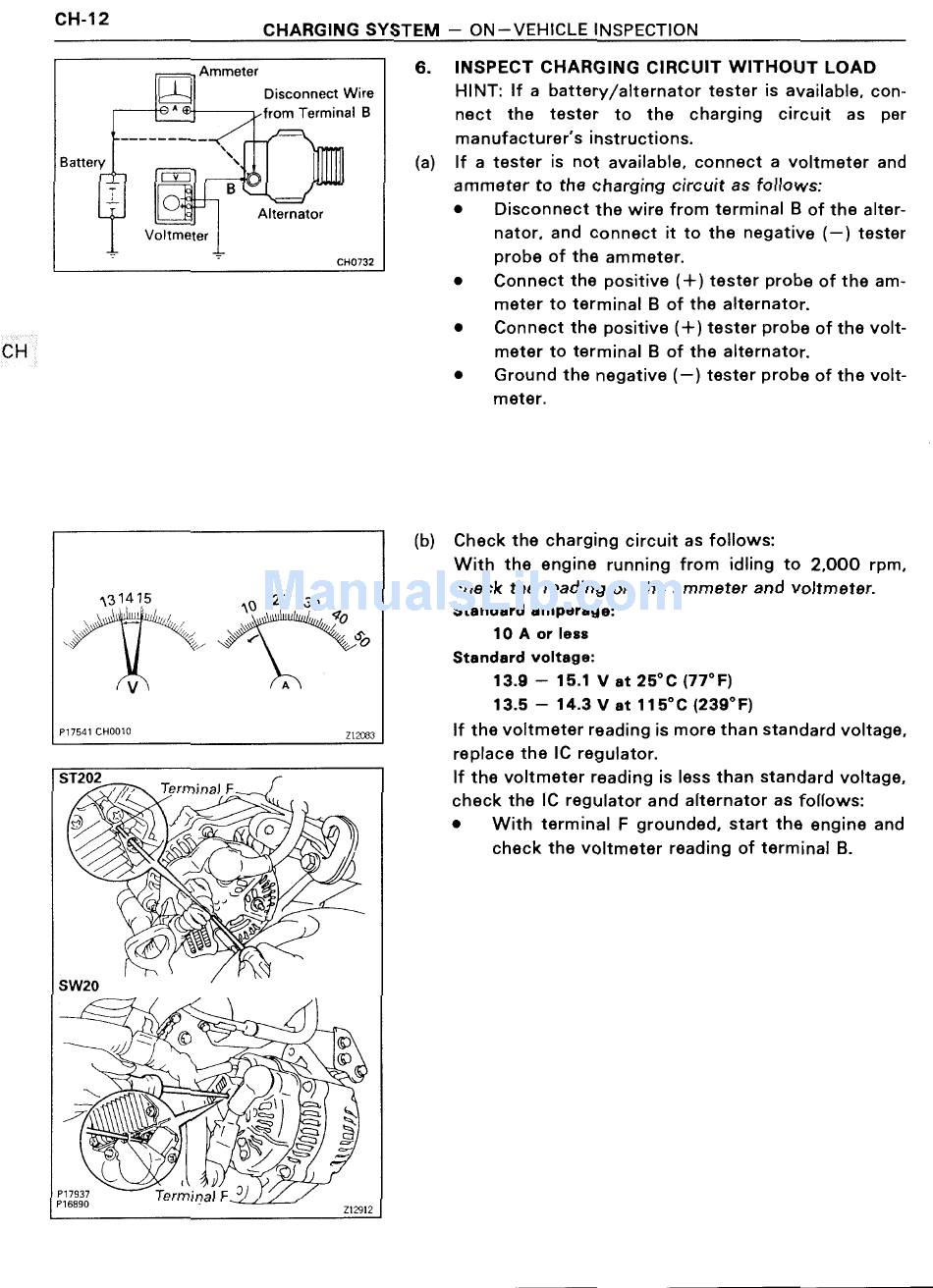

CHARGING SYSTEM — ON—VEHlCLE INSPECTION
Amm
'lull I
I
Voltmeter
__________ \ I
B attery \
. E.
E18! 6-
Disconnect Wire
from Terminal B
Alternator
CH0732
\'31415
P17541 CHOOIO
/. , "0
\_ '(/// 'K / 6\
\ /'/ 0
V A
Z12083
was
swzo
ST202 Terminal F
€ J
.
Qé
.
/49
//
tr / '
-\ I \ '
J .
_ __ . ;;- \ . /
I A
' 0
P17937 '
H6890 Terminal F
%
\ =\
s o
r ?} *2
.)/(i i .
I f / 0 17i
ZI2912
Ia)
(b)
INSPECT CHARGING CIRCUIT WITHOUT LOAD
HINT: If a battery/alternator tester is available, con-
nect the tester to the charging circuit as per
manufacturer's instructions.
If a tester is not available. connect a voltmeter and
ammeter to the charging circuit as follows:
O Disconnect the wire from terminal B of the alter-
nator. and connect it to the negative (—) tester
probe of the ammeter.
0 Connect the positive (+) tester probe of the am-
meter to terminal B of the alternator.
0 Connect the positive (+) tester probe of the volt-
meter to terminal B of the alternator.
0 Ground the negative (—) tester probe of the volt-
meter.
Check the charging circuit as follows:
With the engine running from idling to 2,000 rpm.
check the reading on the ammeter and voltmeter.
Standard amperage:
10 A or less
Standard voltage:
13.9 — 15.1 V at 25°C (77°F)
13.5 — 14.3 V at 115°C (239°F)
If the voltmeter reading is more than standard voltage,
replace the IC regulator.
If the voltmeter reading is less than standard voltage.
check the IC regulator and alternator as follows:
O With terminal F grounded, start the engine and
check the voltmeter reading of terminal B.
