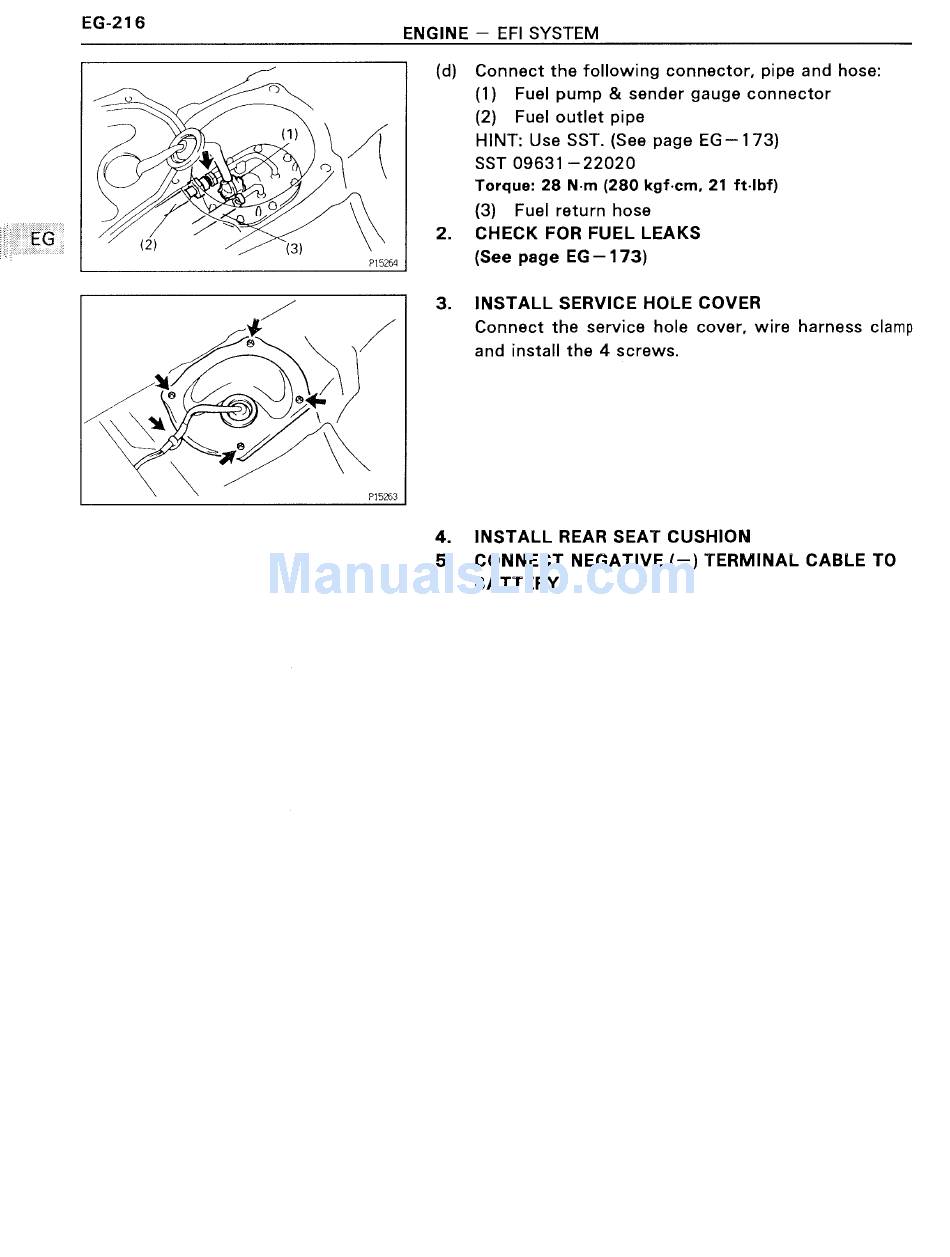

E6416 ENGINE — EFI SYSTEM
(d) Connect the following connector, pipe and hose:
L, Q (1) Fuel pump & sender gauge connector
(2) Fuel outlet pipe
,- / HINT: Use sst. (See page EG—173)
fl 3*? \ I ssr 09631-22020
l ' (3
' Z .'§){¥$d\ Torque: 28 N~m (280 kgf-cm. 21 ft-Ibf)
/// ' II O (3) Fuel return hose
EG <2) / ' A 2. CHECK FOR FUEL LEAKS
I3' .1526. (See page EG—173)
Z 3. INSTALL SERVICE HOLE COVER
iv / Connect the service hole cover, wire harness clamp
/9 and install the 4 screws.
'/
/ .
B
/ 3';
/Q* \\
4. INSTALL REAR SEAT CUSHION
5. CONNECT NEGATIVE (—) TERMINAL CABLE TO
BATTERY
