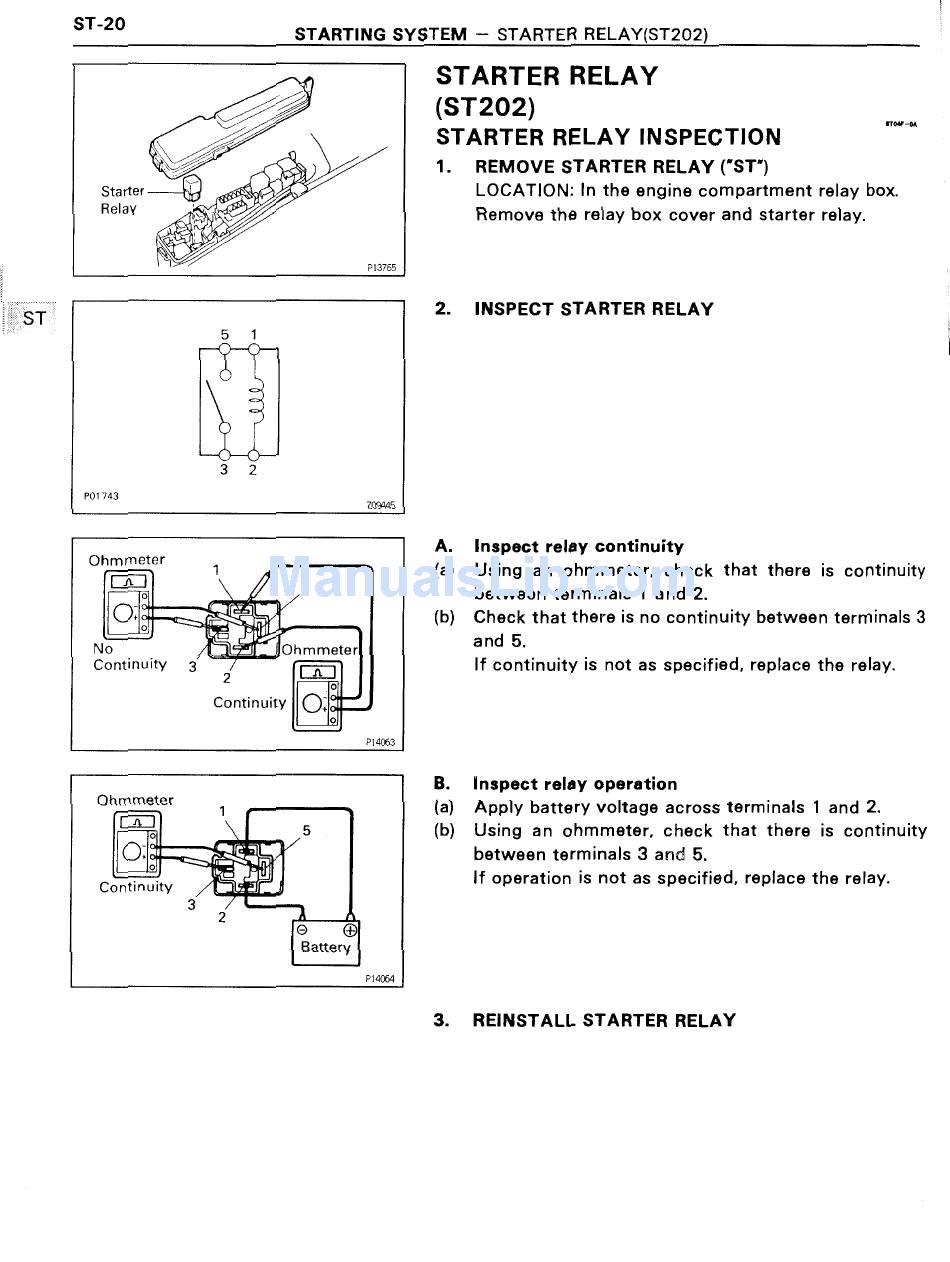

S1--20 STARTING SYSTEM — STARTER RELAY(ST202)
Starter
Relay
I
'Q0
w e!-
P 13765
P017113
51
32
Z09445
Ohmmeter
OIQJ
A '9
"
. _=' _ hmmeter
Continuity 3 2
Continuity EI
Pl4(f-3
Ohmmeter
Continuity i
3
1
2
9 G)
Battery
Pl4%4
STARTER RELAY
(ST202)
STARTER RELAY INSPECTION ""'"
1. REMOVE STARTER RELAY ('ST')
LOCATION: In the engine compartment relay box.
Remove the relay box cover and starter relay.
2. INSPECT STARTER RELAY
A.
la)
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Check that there is no continuity between terminals 3
and 5.
If continuity is not as specified, replace the relay.
(b)
B.
(a)
(b)
Inspect relay operation
Apply battery voltage across terminals 1 and 2.
Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
If operation is not as specified, replace the relay.
3. REINSTALL STARTER RELAY
