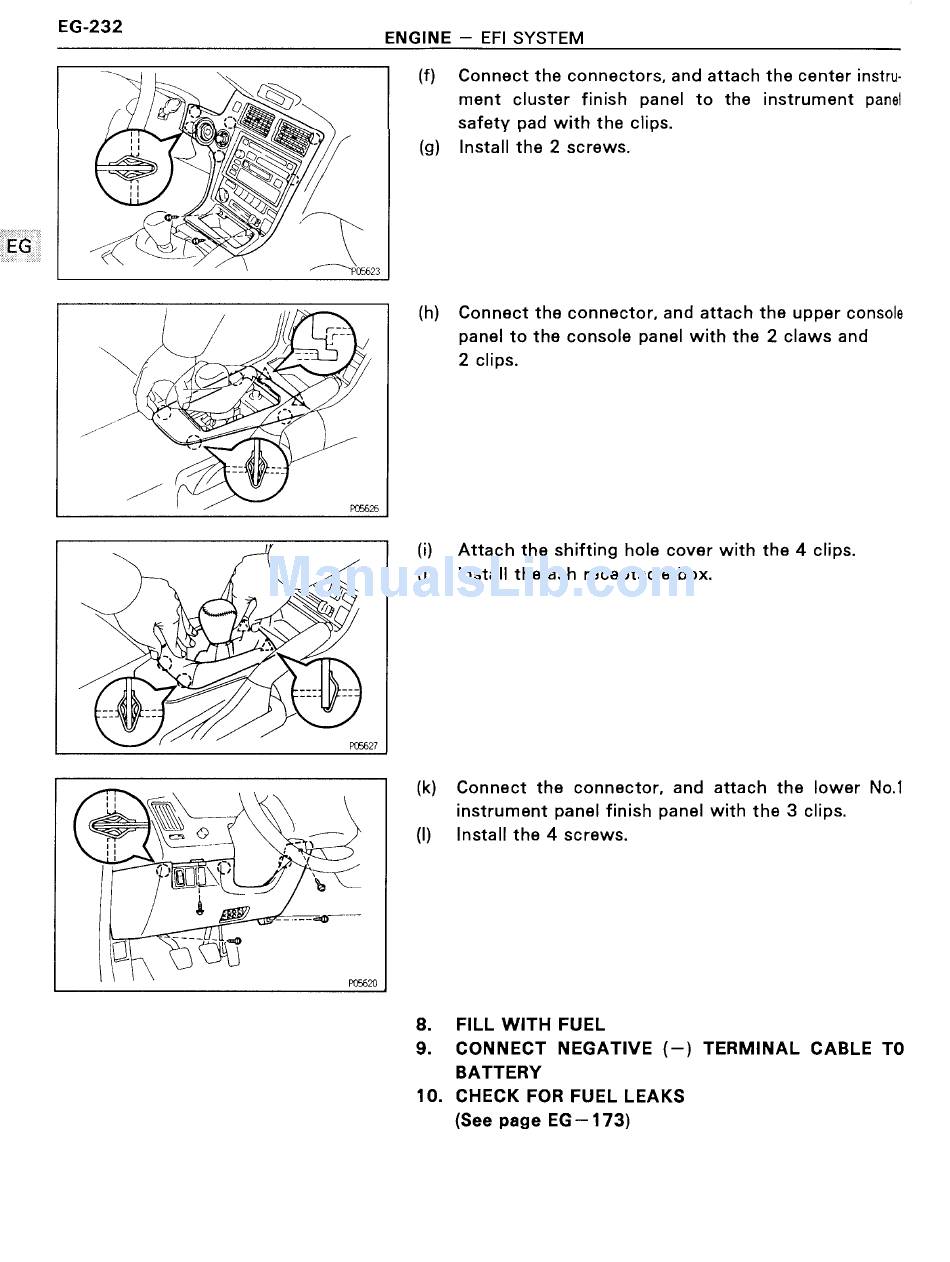

EG'232 ENGINE — EFI SYSTEM
T ' %
I
M 2
EG // 6%
/\P05s23
. Z
'0
' P135626
t
Q
I .
E. \, \
I ()'U'\()L 1 (§<
/ iw....---==o"' " "
(Q <11)
(f) Connect the connectors, and attach the center instru-
ment cluster finish panel to the instrument panel
safety pad with the clips.
(g) lnstall the 2 screws.
(h) Connect the connector, and attach the upper console
panel to the console panel with the 2 claws and
2 clips.
(I) Attach the shifting hole cover with the 4 clips.
(j) lnstall the ash receptacle box.
(k) Connect the connector, and attach the lower No.1
instrument panel finish panel with the 3 clips.
(I) lnstall the 4 screws.
8. FILL WITH FUEL
9. CONNECT NEGATIVE (—) TERMINAL CABLE T0
BATTERY
10. CHECK FOR FUEL LEAKS
(See page EG—173)
