Toyota 3S-GE Repair Manual page 432

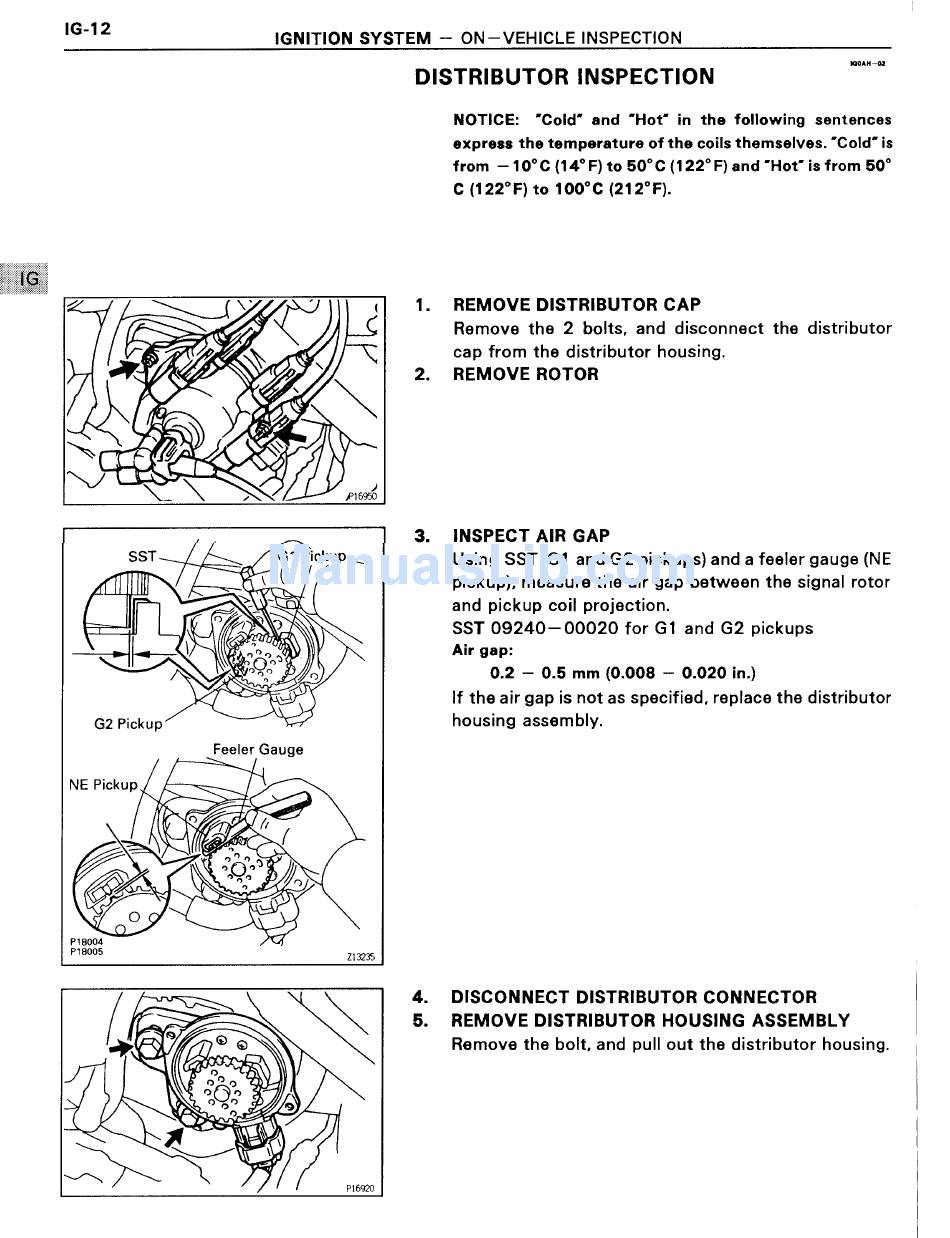

IG-12 IGNITION SYSTEM — ON—VEHlCLE INSPECTION
\-/(
<_/ _ '
-as
»,~¢
)
;PI6950
1 1.
SST t GI PICI<Up
=- O /
+~ fiy
4;?
'bu;
G2 Pickup
Feeler Gauge
' § "*' Y
.\ J";
NE Pickup §
>0 O
O €
PIB004
P1B005
R
213235
L
é/
19) »
, .
/ < *; @ ; ' @ @§' I
>*
lO0AH—O1
DISTRIBUTOR INSPECTION
NOTICE: 'Cold' and 'Hot' in the following sentences
express the temperature of the coils themselves. 'Cold' is
from —10°C (14° F) to 50°C (122° F) and 'Hot' is from 50°
C (122°F) to 100°C (212°F).
REMOVE DISTRIBUTOR CAP
Remove the 2 bolts, and disconnect the distributor
cap from the distributor housing.
2. REMOVE ROTOR
3. INSPECT AIR GAP
Using SST (G1 and G2 pickups) and a feeler gauge (NE
pickup). measure the air gap between the signal rotor
and pickup coil projection.
SST 09240-00020 for G1 and G2 pickups
Air gap:
0.2 — 0.5 mm (0.008 —— 0.020 in.)
If the air gap is not as specified, replace the distributor
housing assembly.
4. DISCONNECT DISTRIBUTOR CONNECTOR
5. REMOVE DISTRIBUTOR HOUSING ASSEMBLY
Remove the bolt, and pull out the distributor housing.
