Toyota 3S-GE Repair Manual page 233

es
a
I
l

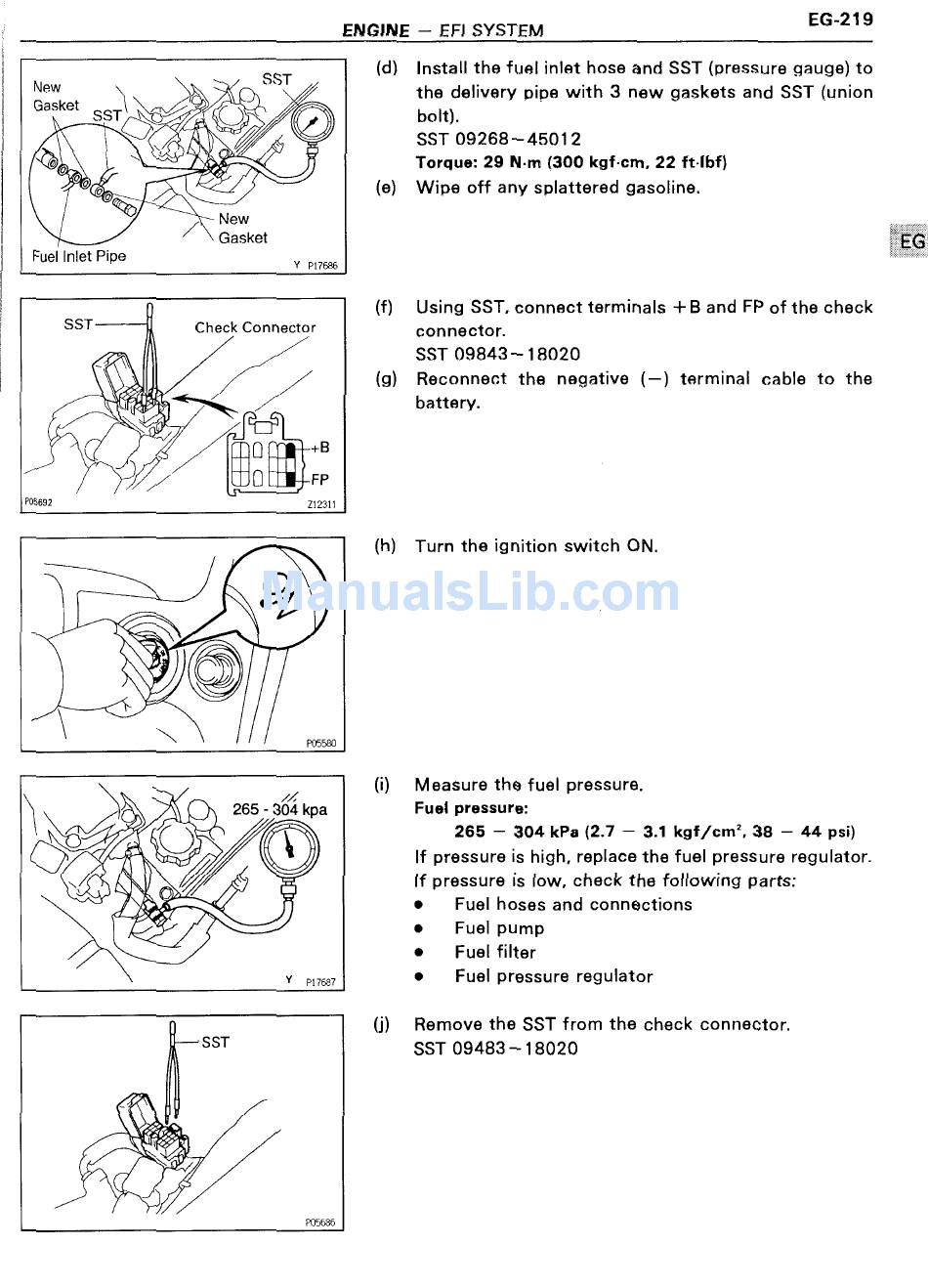

EG-219
ENGINE — EFI SYSTEM
New SST
asket
\
\
)
a
New
Gasket
<>§/ o
s? /
Fuel Inlet Pipe Y W686
(d)
(6)
SST
Check Connector
+B
FP
P05692 Z1231 1
lf)
(9)
's
\ \
P05580
lb)
O ,_-/
Ye"?
.,.@
/'\
Y
//
265 - 304 kpa
P1768?
li)
4» .3"
SST
'I I
0,? 94
. /a
Ii
I
.
P05686
(J)
lnstall the fuel inlet hose and SST (pressure gauge) to
the delivery pipe with 3 new gaskets and SST (union
bolt).
SST 09268-45012
Torque: 29 N-m (300 kgf-cm. 22 ft-Ibf)
Wipe off any splattered gasoline.
Using SST, connect terminals +B and FP of the check
connector.
SST 09843-18020
Reconnect the negative (—) terminal cable to the
battery.
Turn the ignition switch ON.
Measure the fuel pressure.
Fuel pressure:
265 — 304 kPa (2.7 — 3.1 kgf/cm', 38 — 44 psi)
pressure is high, replace the fuel pressure regulator.
pressure is low, check the following parts:
Fuel hoses and connections
O Fuel pump
Fuel filter
Fuel pressure regulator
If
If
e
Remove the SST from the check connector.
SST 09483-18020
