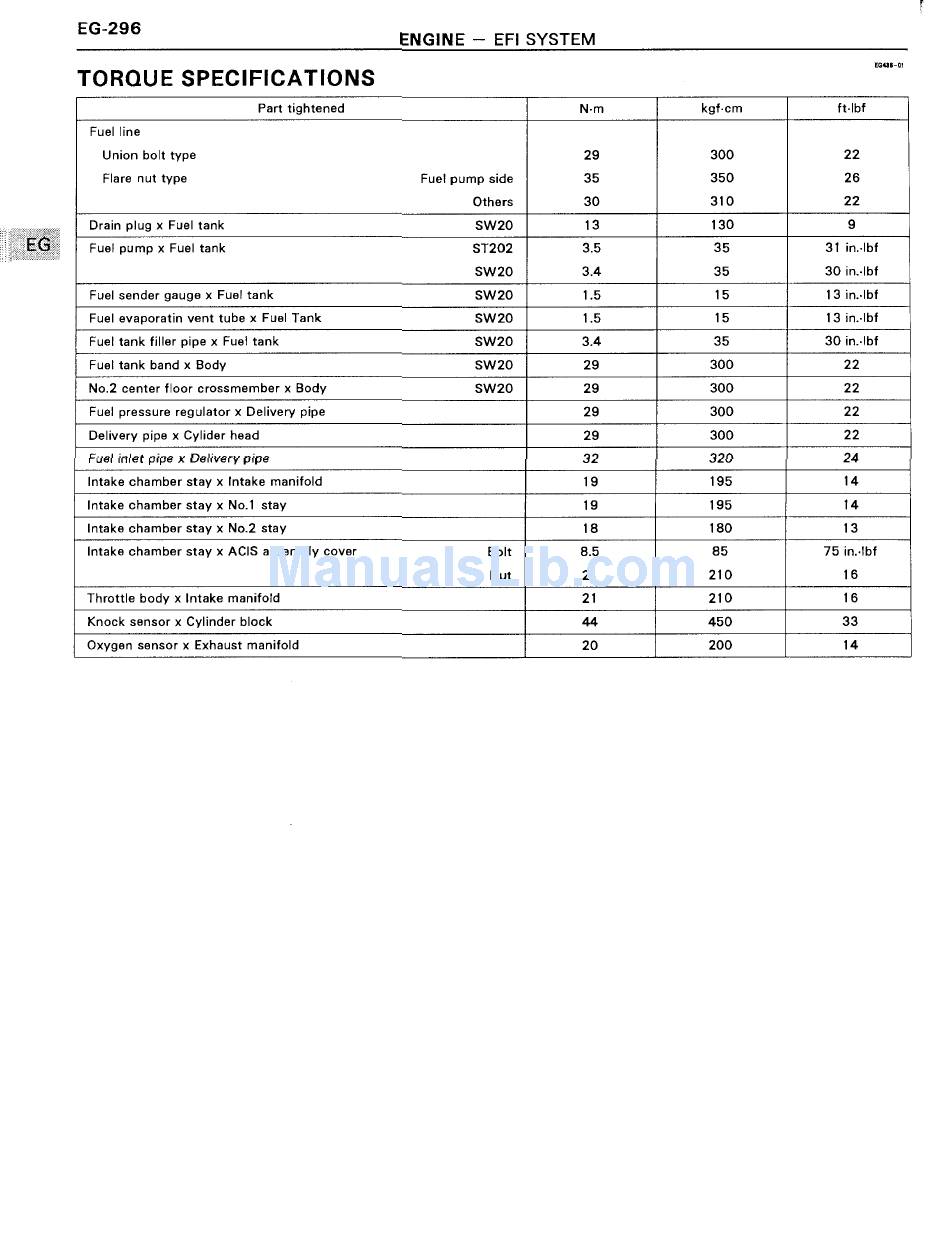

Toyota 3S-GE Repair Manual page 310

EG-296
ENGINE —— EFI SYSTEM
TORQUE SPECIFICATIONS
Part tightened N-m kgf-cm ft-lbf
Fuelfine
Union bolt type
Flare nut type
29
Fuel pump side 35
Others 30
300
350
310
22
26
22
Drain plug x Fuel tank
SW20 13 130
9
Fuel pump x Fuel tank
ST202 3.5
SW20 3.4
35
35
31 in.-I
30 in.-I
bf
bf
Fuel sender gauge x Fuel tank SW20 1.5 15 13 in.-I bf
Fuel evaporatin vent tube x Fuel Tank SW20 1.5 15 13 in.-I bf
Fuel tank filler pipe x Fuel tank SW20 3.4 35 30 in.-I bf
Fuel tank band x Body
SW20 29 300 22
No.2 center floor crossmember x Body SW20 29 300
22
Fuel pressure regulator x Delivery pipe
29 300 22
Delivery pipe x Cylider head 29 300 22
Fuel inlet pipe x Delivery pipe
32 320 24
lntake chamber stay x lntake manifold 19 195 14
lntake chamber stay x No.1 stay 19 195 I4
lntake chamber stay x No.2 stay
18 180 13
lntake chamber stay x ACIS assembly cover Bolt
Nut 21
8.5 85
210
75 in.-I
I6
bf
Throttle body x lntake manifold 21 210 I6
Knock sensor x Cylinder block 44
450
33
Oxygen sensor x Exhaust manifold
20 200 14
III
