Toyota 3S-GE Repair Manual page 228

EG'2I4 ENGINE - EFI SYSTEM
V
(git?)
\_;"
EB Clip
P1372l
. O,
V. '
PI3722
ll
°'?4\
"> T" * ~ —__
l I
C)
'D
PI3723
I
Q "Iii! ~r
°
"--1" '4 <1
'§ 'élyjh
Pl3723
F
P13722

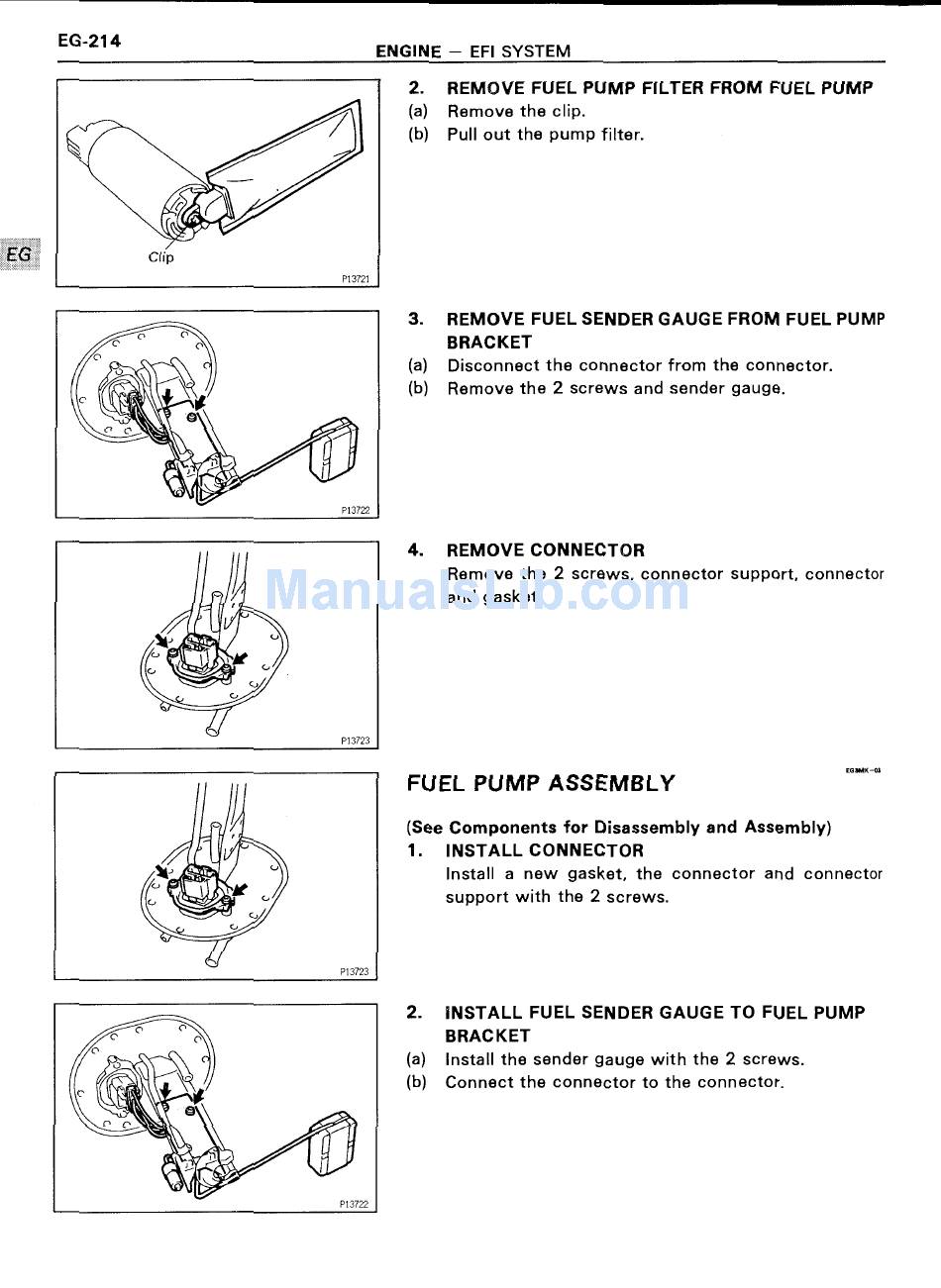

2. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Remove the clip.
(b) Pull out the pump filter.
3. REMOVE FUEL SENDER GAUGE FROM FUEL PUMP
BRACKET
(a) Disconnect the connector from the connector.
(b) Remove the 2 screws and sender gauge.
4. REMOVE CONNECTOR
Remove the 2 screws, connector support, connector
and gasket.
FUEL PUMP ASSEMBLY
(See Components for Disassembly and Assembly)
1. INSTALL CONNECTOR
Install a new gasket, the connector and connector
support with the 2 screws.
2. INSTALL FUEL SENDER GAUGE TO FUEL PUMP
BRACKET
(a) Install the sender gauge with the 2 screws.
(b) Connect the connector to the connector.
