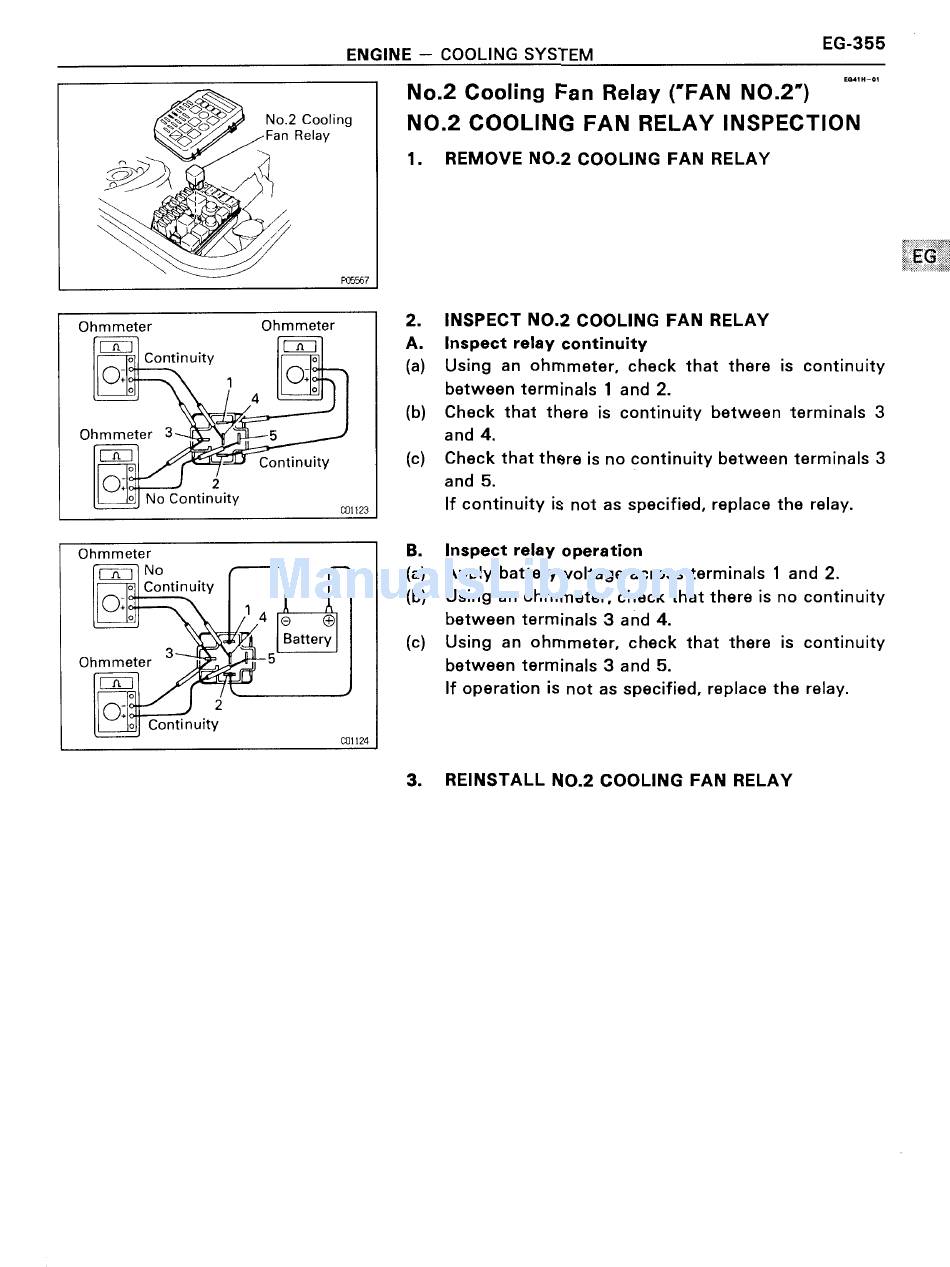

Toyota 3S-GE Repair Manual page 369

EG-355
ENGINE — COOLING SYSTEM
§4Z' % //I,
4><' > <%@
-5?
No.2 Cooling
Fan Remy
'
P0556?
Ohmmeter Ohmmeter
Continuity
Ohmmeter 3 luff?'
/E71! O
E-2
No Continuity
C); O;
-\\.\~
ntinuity
c0112e
Ohmmeter
NO
v Continuity
1--\
\r§".t vi
Ohmmeter 3 :3
U /r.4J|'
_ 2
.|
E Continuity
1 l
e Q9
Battery
(201124
EH41 N—Ol
No.2 Cooling Fan Relay ('FAN NO.2')
NO.2 COOLING FAN RELAY INSPECTION
1.
2.
A.
la)
lb)
(C)
B.
Ia)
(bl
(cl
3.
REMOVE NO.2 COOLING FAN RELAY
INSPECT NO.2 COOLING FAN RELAY
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Check that there is continuity between terminals 3
and 4.
Check that there is no continuity between terminals 3
and 5.
If continuity is not as specified, replace the relay.
Inspect relay operation
Apply battery voltage across terminals 1 and 2.
Using an ohmmeter, check that there is no continuity
between terminals 3 and 4.
Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
If operation is not as specified, replace the relay.
REINSTALL NO.2 COOLING FAN RELAY
